A qualified crimped fitting is essentially a controlled metal plastic deformation: the ferrule is radially compressed to lock the hose inner tube, reinforcement layer and fitting mandrel into an integrated assembly. Insufficient crimping leads to inadequate sealing and potential pull-out; excessive crimping may damage the steel wire layer or the fitting mandrel. This operating window is narrow.
Engineering has well-defined algorithms to determine crimp dimensions. The classic calculation logic is: Final crimped outer diameter D1 = Ferrule outer diameter D − (assembly clearance δ + mandrel expansion δ1 + 2 × inner rubber compression δ2) The hard-to-control variable here is inner rubber compression ratio. Recommended ranges vary with wire reinforcement layers: roughly 35%–43% for one wire layer, 38%–46% for two layers, 45%–55% for four layers, 50%–60% for six layers, and only 25%–30% for thermoplastic hoses. More reinforcement layers require higher compression ratio to ensure clamping force penetrates the thicker hose structure. For this reason, a single parameter set cannot be universally applied across different specifications.
If this were merely an arithmetic problem, the challenge would have long been solved. The real difficulty lies in variables.
The first variable is incoming raw materials. Wall thickness, rubber hardness and outer diameter of steel wire layers fluctuate normally between batches of hoses. Any change in the clearance between ferrule and hose will shift the compression ratio away from target values under fixed crimp settings. The second variable is dies. Die wear directly alters forming dimensions. Industry practice recommends die repair or replacement when crimp diameter deviation exceeds 50% of the tolerance band. The third variable comes from operation: perpendicularity of the cut, reasonable skiving length (insufficient skiving length results in weak locking; excessive skiving may damage reinforcement), proper insertion depth, and removal of chips or foreign debris inside the bore.

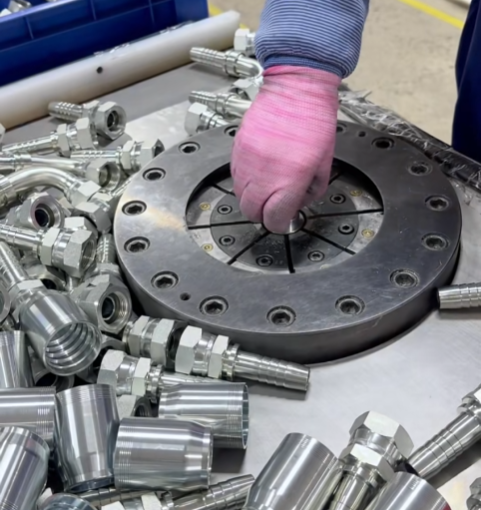

Traditional workshops rely on first-piece inspection, feel and experience to manage these three groups of variables, making stability heavily dependent on operators. The new generation approach builds a closed-loop process.
Closed-loop equipmentEquipped with programmable controllers and pressure/displacement sensors, crimping machines with closed-loop control deliver real-time feedback during crimping. Closed-loop models can hold crimp diameter tolerance within ±0.02 mm, and critical dimensions can achieve consistency at the ±0.01 mm level. Repeat accuracy improves by orders of magnitude compared with conventional manual machines. More importantly, such equipment records crimp curves and peak pressure for every workpiece. Crimping is no longer just a finished operation, but a fully documented process.
Process controlA widely recommended workflow: first-piece validation + in-process sampling + last-piece recheck. Measure crimp height and outer diameter for the first piece; sample critical dimensions batch-wise during production. Re-validation is mandatory after changing specifications, dies or hose batches. Halt production immediately once dimensional drift is detected. Supporting records include equipment ID, die number, operator and timestamp — these form the foundation for traceability.
Quantified inspectionClear industry criteria exist for geometric tolerances. Roundness is normally measured at the midpoint of the crimp length, with roundness tolerance controlled within 0.13 mm. For cylindricity, calculate the difference between maximum and minimum readings on both ends of the crimped surface, also limited to 0.13 mm over a 25 mm length. Additionally, the crimp pattern shall be continuous and uniform; the ferrule and hose shall remain coaxial. Threads, O-ring grooves and sealing surfaces must stay intact. Before delivery, hose assemblies generally undergo proof pressure testing (common practice: hold pressure at twice the working pressure for tens of seconds; some standards specify 1.5 times working pressure) plus 100% visual inspection.
Data and traceabilityCurrent industry progress connects these four segments into one chain: equipment records crimp curves, production lines log process and environmental data, QR codes link data to individual hose assemblies, and factory test results are bound to the same QR code. If an assembly fails in service, engineers can trace back which machine, die set, shift and parameters produced it. Some machines integrate vision recognition to automatically identify hose and fitting specifications and call up corresponding programs, reducing human error from wrong parameter selection.
An easily underestimated prerequisite is compatibility. Fittings and hoses must be validated as a complete system. Hoses from different manufacturers differ in wall thickness and reinforcement outer diameter. Even with identical nominal dimensions, crimp parameters may require adjustment. This is why standard practice requires hose and fitting to be selected as a matched system, and crimp verification plus type testing must be repeated after switching suppliers.
Returning to the opening observation: failures concentrated right next to fittings are no coincidence. It shows the bottleneck of assembly quality is not the pressure-bearing capacity of the hose itself, but the bonding quality within this tens-of-millimeters joint zone — and this section is perfectly suited for data-driven management.
