On hose production lines, the final gatekeeper has long been the human eye: a worker watches the hose pass at constant speed and judges by experience whether there are blisters, cracks or inclusions. It is cheap — and it has two unavoidable weaknesses: people tire, and 100% inspection is impossible.
Industrial cameras combined with deep-learning models are now taking over that station. For a product where the cost of failure is as high as high-pressure hose, upgrading inspection is moving from optional to essential.
1. Three pain points of conventional inspection
Subjectivity. Visual judgement depends on the operator's experience and state; the same scratch can be graded differently across shifts, and fatigue-driven misses are impossible to quantify.
Coverage. Critical properties (burst, impulse) are destructive or long-cycle tests and can only be sampled. Surface defects can in principle be inspected, but on a fast line the window in which you can actually see them is very short.
No data loop. Defect records on paper or in isolated spreadsheets rarely link back to the compound batch, extrusion temperature or line speed of that shift. Problems get found; root causes often do not — and that is the most expensive part.
2. What machine vision can inspect today
Inspection tasks that have reached practical maturity in the hose industry include:

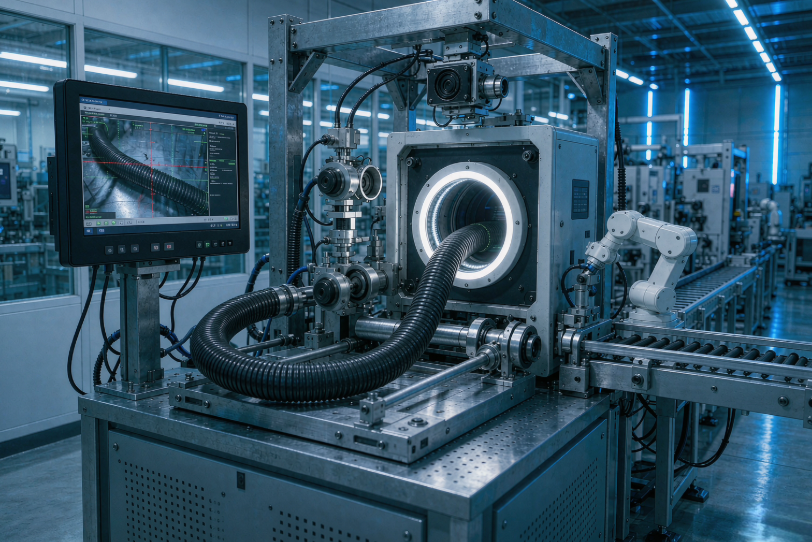

Cover surface defects — blisters, cracks, scratches, inclusions, scorch marks — imaged with area or line-scan cameras and ring lighting, then classified and located by model;
Dimensions and form — outside diameter, roundness, wall uniformity, measurable in-line with laser gauges or multi-view imaging;
Reinforcement quality — braid density, braid angle and broken wires, usually requiring X-ray or radiographic imaging with image algorithms;
Marking and traceability — OCR verification of printed batch codes, sizes and standard numbers, so marking errors do not reach the next step;
Post-crimp verification — non-contact check of ferrule diameter and crimp position.
3. The stack is not mysterious
A workable in-line vision system has four layers: imaging (camera, lens, lighting — lighting often matters more than the camera), compute (edge box or industrial PC with GPU), algorithms (classical image processing plus deep-learning classification/segmentation) and data (results fed back to MES/ERP and joined with process parameters).
What decides success is usually the imaging scheme, not the algorithm. Rubber is glossy, monochrome and varied in defect morphology; the lighting method — bright field, dark field, coaxial, low-angle — determines whether the model can learn at all.
4. Four honest difficulties
Scarce samples. Defect classes are many but rare; an uncommon defect may appear once in months, leaving the model with few training examples. Data augmentation, synthetic defects and cross-line transfer learning are the usual answers.
Labelling cost. Pixel-level annotation needs skilled inspectors and consistent criteria; otherwise the model learns the annotators' disagreement.
Generalisation. Changing size, compound colour or ageing light sources can degrade performance significantly. Continuous iteration and on-site calibration are required — this is not deploy-once-and-forget.
False positives and review. A high false-alarm rate destroys line trust. The pragmatic model is human–machine collaboration: the machine screens everything, humans review only the suspects, rather than pursuing full automation from day one.
5. The real value is prediction, not detection
Once vision data is joined with upstream process parameters (temperature, pressure, speed, batch), the system stops being a filter and starts supporting statistical process control (SPC): when a defect rate rises, it can be traced to a specific machine, shift or compound batch.
Moving from "detect bad parts" to "predict and prevent bad parts" is the part that actually pays.
6. Advice for companies preparing to deploy
Start with data governance. Organising historical defect records and process parameters into a usable dataset matters more than buying cameras quickly.
Win one point first. Pick a station with a well-defined defect type and quantifiable benefit; prove it, then replicate.
Begin with human–machine collaboration, not full automation.
Write the supplier's model-iteration capability into the contract — models need long-term maintenance, not delivery-and-done.
Keep a manual review path. Every automated judgement needs a fallback.
