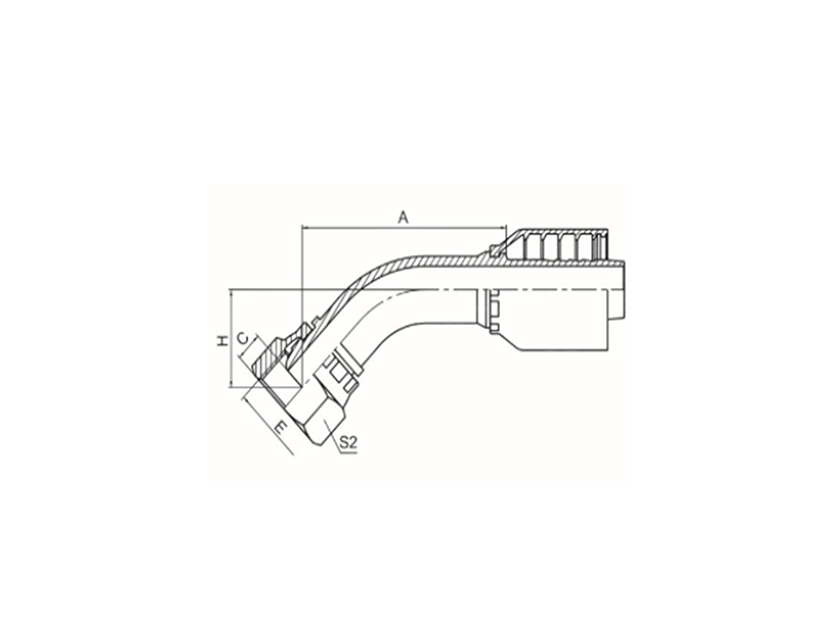

this fitting features a 45° elbow with a metric swivel female thread and a spherical metal line seal structure. manufactured from zinc-plated carbon steel, the swivel nut allows for free angle adjustment. it is compatible with metric male thread spherical head fittings, providing stable sealing performance. please note that it is strictly non-interchangeable with cone seat and flat face fittings.
| PART NO. | THREAD | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 20141-10-04RW | -- | M10X1 | 6 | 04 | 44.1 | 2.5 | 20.5 | 14 |
| 20141-12-04RW | -- | M12X1.5 | 6 | 04 | 44.5 | 4 | 20.9 | 17 |
| 20141-12-05RW | -- | M12X1.5 | 8 | 05 | 46.6 | 4 | 21.8 | 17 |
| 20141-14-04TRW | -- | M14X1.5 | 6 | 04 | 43.4 | 4 | 19.8 | 19 |
| 20141-14-05RW | -- | M14X1.5 | 8 | 05 | 47 | 4.5 | 22.2 | 19 |
| 20141-16-04TRW | -- | M16X1.5 | 6 | 04 | 43.4 | 5 | 19.8 | 22 |
| 20141-16-05TRW | -- | M16X1.5 | 8 | 05 | 45.5 | 5 | 20.7 | 22 |
| 20141-16-06RW | -- | M16X1.5 | 10 | 06 | 48.4 | 4.5 | 23.2 | 22 |
| 20141-18-05TRW | -- | M18X1.5 | 8 | 05 | 47 | 4 | 22.2 | 22 |
| 20141-18-06TRW | -- | M18X1.5 | 10 | 06 | 48.1 | 4 | 22.9 | 22 |
| 20141-18-08RW | 20142-18-08RW | M18X1.5 | 12 | 08 | 62.9 | 4 | 26.5 | 24 |
| 20141-20-06TRW | -- | M20X1.5 | 10 | 06 | 48.4 | 5.5 | 23.2 | 24 |
| 20141-20-08RW | 20142-20-08RW | M20X1.5 | 12 | 08 | 63.2 | 5.5 | 26.8 | 27 |
| 20141-22-06TRW | 20142-22-06TRW | M22X1.5 | 10 | 06 | 48.8 | 5 | 23.6 | 27 |
| 20141-22-08TRW | 20142-22-08TRW | M22X1.5 | 12 | 08 | 61.5 | 5 | 25.1 | 27 |
| 20141-22-10RW | 20142-22-10RW | M22X1.5 | 16 | 10 | 74.1 | 5 | 28.8 | 27 |
| 20141-24-10RW | 20142-24-10RW | M24X1.5 | 16 | 10 | 74.8 | 5 | 29.5 | 30 |
| 20141-24-08TRW | 20142-24-08TRW | M24X1.5 | 12 | 08 | 61.8 | 5.5 | 25.4 | 30 |
| 20141-27-08DTRW | 20142-27-08DTRW | M27X1.5 | 12 | 08 | 62.5 | 5.5 | 26.1 | 32 |
| 20141-27-10DTRW | 20142-27-10DTRW | M27X1.5 | 16 | 10 | 72.7 | 5.5 | 27.4 | 32 |
| 20141-27-12DRW | 20142-27-12DRW | M27X1.5 | 20 | 12 | 78.8 | 5.5 | 33 | 32 |
| 20141-27-10TRW | 20142-27-10TRW | M27X2 | 16 | 10 | 72.7 | 7 | 27.4 | 32 |
| 20141-30-12DTRW | 20142-30-12DTRW | M30X1.5 | 20 | 12 | 76.4 | 6 | 30.6 | 36 |
| 20141-30-12TRW | 20142-30-12TRW | M30X2 | 20 | 12 | 76.4 | 7 | 30.6 | 41 |
| 20141-36-12TRW | 20142-36-12TRW | M36X2 | 20 | 12 | 77.1 | 8 | 31.3 | 41 |
Selection note: 45° METRIC FEMALE THREAD SPHERICAL SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
