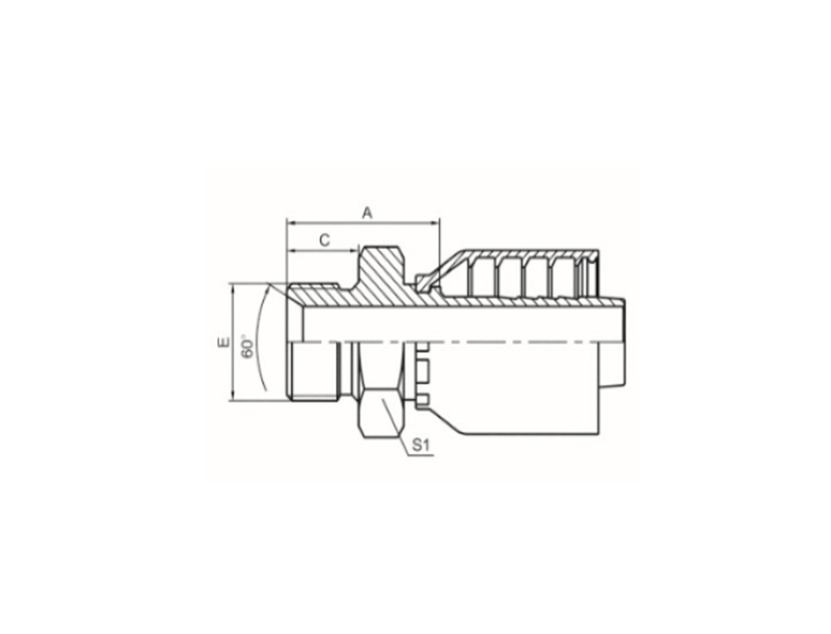

CARBON STEEL FORGED BODY WITH ZINC-PLATED RUST-PROOF TREATMENT. THE METRIC MALE EXTERNAL THREAD BODY FEATURES AN INTERNAL 60° CONE SEAT THAT RELIES ON METAL-TO-METAL CONE SURFACE CONTACT FOR SEALING, ELIMINATING THE NEED FOR O-RINGS. EQUIPPED WITH A STANDARD SLEEVE THAT ENSURES SECURE CRIMPING TO THE HYDRAULIC HOSE, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING PRESSURE IMPACTS IN THE OIL LINE.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 10611-14-04RW | -- | M14X1.5 | 6 | 04 | 23 | 11 | 19 |
| 10611-14-06RW | -- | M14X1.5 | 10 | 06 | 22.5 | 11 | 19 |
| 10611-16-04RW | -- | M16X1.5 | 6 | 04 | 26 | 12 | 22 |
| 10611-16-05RW | -- | M16X1.5 | 8 | 05 | 26 | 12 | 22 |
| 10611-18-06RW | -- | M18X1.5 | 10 | 06 | 25.5 | 12 | 24 |
| 10611-22-06RW | -- | M22X1.5 | 10 | 06 | 29.5 | 14 | 27 |
| 10611-22-08RW | 10612-22-08RW | M22X1.5 | 12 | 08 | 30.5 | 14 | 27 |
| 10611-24-10RW | 10612-24-10RW | M24X1.5 | 16 | 10 | 31 | 14 | 30 |
| 10611-26-10RW | 10612-26-10RW | M26X1.5 | 16 | 10 | 34 | 16 | 32 |
| 10611-27-10DRW | 10612-27-10DRW | M27X1.5 | 16 | 10 | 34 | 16 | 32 |
| 10611-27-10DRW | 10612-27-10DRW | M27X2 | 16 | 10 | 36 | 18 | 32 |
| 10611-30-12DRW | 10612-30-12DRW | M30X1.5 | 20 | 12 | 35 | 18 | 36 |
| 10611-30-12RW | 10612-30-12RW | M30X2 | 20 | 12 | 35 | 18 | 36 |
| 10611-33-16RW | 10612-33-16RW | M33X2 | 25 | 16 | 42.2 | 20 | 46 |
| 10611-42-20RW | 10612-42-20RW | M42X2 | 32 | 20 | 44.2 | 20 | 50 |
| 10611-45-20RW | 10612-45-20RW | M45X2 | 32 | 20 | 44.2 | 20 | 55 |
| 10611-48-24RW | 10612-48-24RW | M48X2 | 40 | 24 | 45 | 20 | 55 |
| 10611-52-24RW | 10612-52-24RW | M52X2 | 40 | 24 | 45 | 20 | 60 |
Selection note: METRIC MALE EXTERNAL THREAD 60° INTERNAL CONE. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
