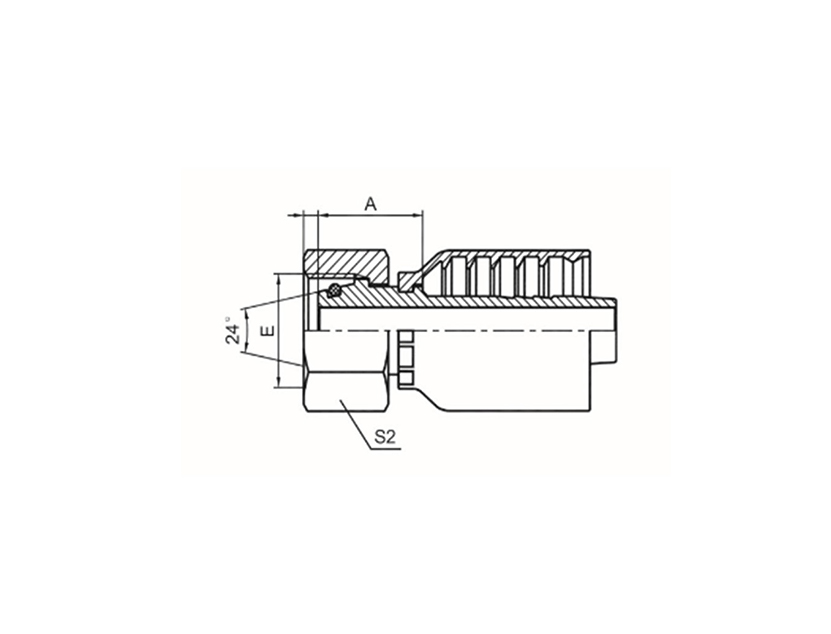

complying with iso 12151-2 and din 3865 standards, this fitting features a metric female 24° cone with an o-ring in the light series. it achieves a composite seal through the combination of a 24° cone seat and an o-ring. manufactured from zinc-plated carbon steel, the swivel nut allows for free orientation adjustment. it is compatible with light series 24° external cone tube fittings, providing superior sealing performance compared to pure metal-to-metal hard seals.
| PART NO. | THREAD | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |||
| 20411-12-04WRW | -- | M12X1.5 | 6 | 04 | 6 | OO4.5X1.5 | 23.6 | 1.4 | 17 |
| 20411-14-04TRW | -- | M14X1.5 | 6 | 04 | 8 | OO6.5X1.5 | 19.1 | 1.4 | 17 |
| 20411-14-05WRW | -- | M14X1.5 | 10 | 06 | 8 | OO6.5X1.5 | 23.7 | 1.4 | 17 |
| 20411-16-04TRW | -- | M16X1.5 | 6 | 04 | 10 | OO8.0X1.5 | 19.7 | 2.1 | 19 |
| 20411-16-05TRW | -- | M16X1.5 | 8 | 05 | 10 | OO8.0X1.5 | 19.7 | 2.1 | 19 |
| 20411-16-06WRW | -- | M16X1.5 | 10 | 06 | 10 | OO8.0X1.5 | 24.5 | 2.1 | 19 |
| 20411-18-05TRW | -- | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 21.5 | 1.5 | 22 |
| 20411-18-06TRW | -- | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 21 | 1.5 | 22 |
| 20411-18-08WRW | 20412-18-08WRW | M18X1.5 | 12 | 08 | 12 | O10.0X1.5 | 26.2 | 1.8 | 22 |
| 20411-22-05TRW | -- | M22X1.5 | 8 | 05 | 15 | O12.0X2.0 | 22 | 3 | 27 |
| 20411-22-06TRW | -- | M22X1.5 | 10 | 06 | 15 | O12.0X2.0 | 21.5 | 3 | 27 |
| 20411-22-08TRW | 20412-22-08TRW | M22X1.5 | 12 | 08 | 15 | O12.0X2.0 | 22.5 | 3 | 27 |
| 20411-22-10WRW | 20412-22-10WRW | M22X1.5 | 16 | 10 | 15 | O12.0X2.0 | 27.1 | 3 | 27 |
| 20411-26-08TRW | 20412-26-08TRW | M26X1.5 | 12 | 08 | 18 | O15.0X2.0 | 23.4 | 2.1 | 32 |
| 20411-26-10TRW | 20412-26-10TRW | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 23.9 | 2.1 | 32 |
| 20411-26-12WRW | 20412-26-12WRW | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 27.4 | 2.1 | 32 |
| 20411-30-10TRW | 20412-30-10TRW | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 26.7 | 3.8 | 36 |
| 20411-30-12TRW | 20412-30-12TRW | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 25.7 | 3.8 | 36 |
| 20411-30-16WRW | 20412-30-16WRW | M30X2 | 25 | 16 | 22 | O20.0X2.0 | 32.5 | 3.8 | 36 |
| 20411-36-12TRW | 20412-36-12TRW | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 25 | 4.5 | 41 |
| 20411-36-16TRW | 20412-36-16TRW | M36X2 | 25 | 16 | 28 | O26.0X2.0 | 28.2 | 4.5 | 41 |
| 20411-36-20WRW | 20412-36-20WRW | M36X2 | 32 | 20 | 28 | O26.0X2.0 | 33.3 | 4.5 | 41 |
Selection note: METRIC FEMALE 24° CONE WITH O-RING LIGHT SERIES ISO 12151-2 DIN 3865. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
