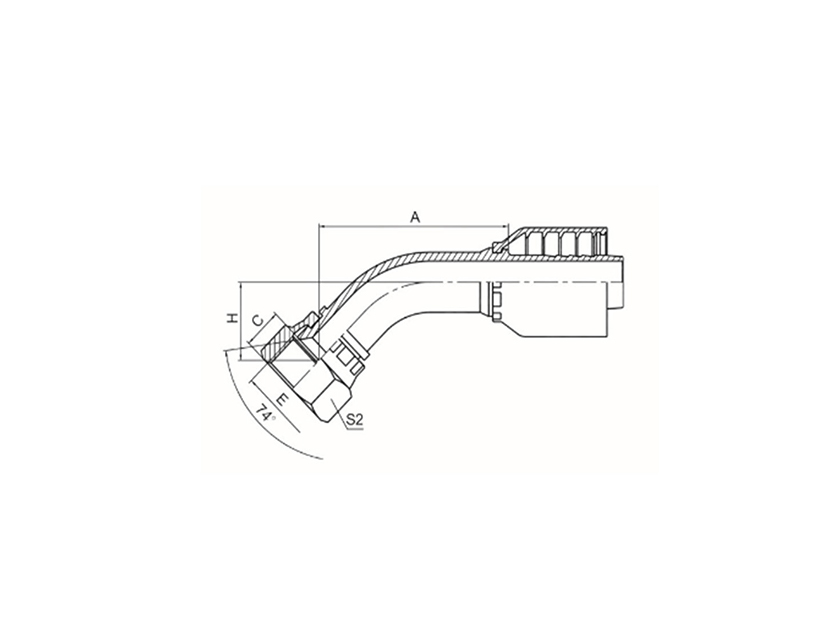

this fitting features a 45° elbow with a metric swivel female thread and a 74° external cone metal-to-metal hard seal. manufactured from zinc-plated carbon steel, the swivel nut facilitates easy alignment during installation. it is exclusively compatible with corresponding 74° internal cone fittings and is strictly non-interchangeable with 60° japanese standard cone fittings.
| PART NO. | THREAD | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 20741-10-04RW | -- | M10X1 | 6 | 04 | 41.7 | 7.5 | 18.1 | 14 |
| 20741-12-04RW | -- | M12X1.5 | 6 | 04 | 41.7 | 10 | 18.1 | 17 |
| 20741-14-04TRW | -- | M14X1.5 | 6 | 04 | 40.6 | 8.5 | 17 | 19 |
| 20741-14-05RW | -- | M14X1.5 | 8 | 05 | 44.1 | 8.5 | 19.3 | 19 |
| 20741-14-06RW | -- | M14X1.5 | 10 | 06 | 45.2 | 8.5 | 20 | 19 |
| 20741-16-04TRW | -- | M16X1.5 | 6 | 04 | 41 | 8 | 17.4 | 22 |
| 20741-16-05TRW | -- | M16X1.5 | 8 | 05 | 43.1 | 8 | 18.3 | 22 |
| 20741-16-06RW | -- | M16X1.5 | 10 | 06 | 45.9 | 8 | 20.7 | 22 |
| 20741-18-05TRW | -- | M18X1.5 | 8 | 05 | 43.8 | 8 | 19 | 22 |
| 20741-18-06RW | -- | M18X1.5 | 10 | 06 | 46.6 | 10 | 21.4 | 24 |
| 20741-20-06TRW | -- | M20X1.5 | 10 | 06 | 45.2 | 10 | 20 | 24 |
| 20741-20-08RW | 20742-20-08RW | M20X1.5 | 12 | 08 | 60.4 | 10 | 24 | 27 |
| 20741-22-08TRW | 20742-22-08TRW | M22X1.5 | 12 | 08 | 57.9 | 10 | 21.5 | 27 |
| 20741-22-10RW | 20742-22-10RW | M22X1.5 | 16 | 10 | 70.6 | 10 | 25.3 | 27 |
| 20741-24-08TRW | 20742-24-08TRW | M24X1.5 | 12 | 08 | 57.9 | 11 | 21.5 | 30 |
| 20741-27-08TRW | 20742-27-08TRW | M27X1.5 | 12 | 08 | 59.3 | 11 | 22.9 | 32 |
| 20741-27-10TRW | 20742-27-10TRW | M27X1.5 | 16 | 10 | 69.5 | 11 | 24.2 | 32 |
| 20741-30-10TRW | 20742-30-10TRW | M30X1.5 | 16 | 10 | 69.9 | 11 | 24.6 | 36 |
| 20741-30-12TRW | 20742-30-12TRW | M30X1.5 | 20 | 12 | 73.2 | 13 | 27.4 | 36 |
| 20741-33-12TRW | 20742-33-12TRW | M33X2 | 20 | 12 | 72.8 | 13 | 27 | 41 |
| 20741-36-16TRW | 20742-36-16TRW | M36X2 | 25 | 16 | 85 | 14 | 28.6 | 41 |
| 20741-39-16TRW | 20742-39-16TRW | M39X2 | 25 | 16 | 87.2 | 14 | 30.8 | 46 |
| 20741-42-16TRW | 20742-42-16TRW | M42X2 | 25 | 16 | 86.5 | 15 | 30.1 | 50 |
| 20741-42-20WRW | 20742-42-20WRW | M42X2 | 32 | 20 | 97.8 | 15 | 38.7 | 50 |
| 20741-45-20TRW | 20742-45-20TRW | M45X2 | 32 | 20 | 96.1 | 15 | 34.2 | 55 |
| 20741-52-24TRW | 20742-52-24TRW | M52X2 | 40 | 24 | 110.8 | 17 | 3 | |
Selection note: 45° GB METRIC FEMALE THREAD 74° EXTERNAL CONE SEAT REF GB/T 9065.1. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
