this code 61 light-duty split flange complies with iso 12151-3 and sae j516 standards, with a rated pressure of 3000 psi. it features an end-face o-ring flat seal and is equipped with a split flange clamp. manufactured from zinc-plated carbon steel, it is compatible with wire-braided hoses. with its lightweight structure, please note that its dimensions are strictly non-interchangeable with 6000 psi code 62 flanges.

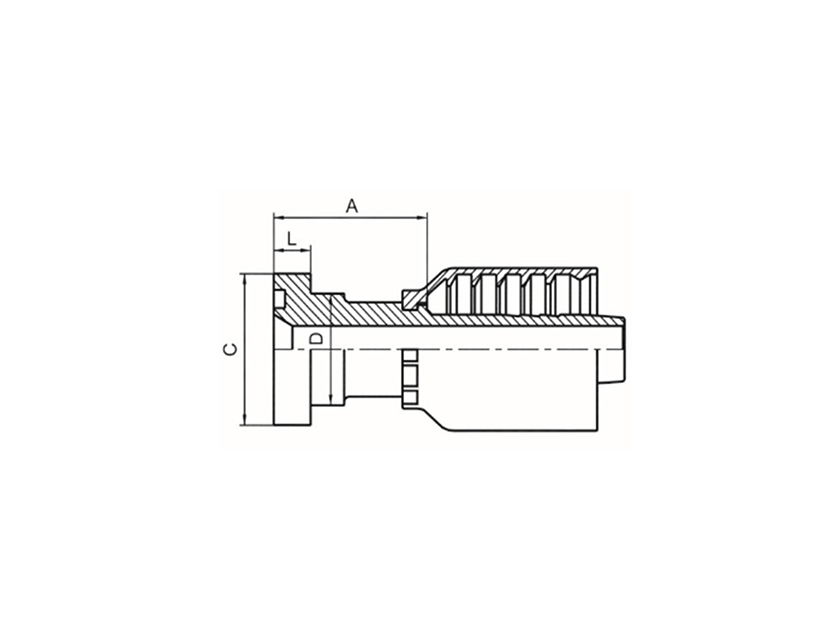

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | D | L | |
| 87311-08-08RW | 87311-08-08RW | 1/2" | 12 | 08 | 47.5 | 30.2 | 24 | 6.73 |
| 87311-12-08RW | 87311-12-08RW | 3/4" | 12 | 08 | 48.5 | 38.1 | 31.7 | 6.73 |
| 87311-12-10RW | 87311-12-10RW | 3/4" | 16 | 10 | 49 | 38.1 | 31.7 | 6.73 |
| 87311-12-12RW | 87311-12-12RW | 3/4" | 20 | 12 | 48 | 38.1 | 31.7 | 6.73 |
| 87311-12-16RW | 87311-12-16RW | 3/4" | 25 | 16 | 51.2 | 38.1 | 31.7 | 6.73 |
| 87311-16-12RW | 87311-16-12RW | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 87311-16-16RW | 87311-16-16RW | 1" | 25 | 16 | 54.2 | 44.4 | 38 | 8 |
| 87311-16-20RW | 87311-16-20RW | 1" | 32 | 20 | 54.2 | 44.4 | 38 | 8 |
| 87311-20-16RW | 87311-20-16RW | 1.1/4" | 25 | 16 | 59.2 | 50.8 | 43 | 8 |
| 87311-20-20RW | 87311-20-20RW | 1.1/4" | 32 | 20 | 59.2 | 50.8 | 43 | 8 |
| 87311-24-20RW | 87311-24-20RW | 1.1/2" | 32 | 20 | 69.2 | 60.3 | 50 | 8 |
| 87311-24-24RW | 87311-24-24RW | 1.1/2" | 40 | 24 | 70 | 60.3 | 50 | 8 |
| 87311-32-24RW | 87311-32-24RW | 2" | 40 | 24 | 72 | 71.4 | 62 | 9.53 |
| 87311-32-32RW | 87311-32-32RW | 2" | 50 | 32 | 75.5 | 71.4 | 62 | 9.53 |
Selection note: SAE FLANGE 3000 PSI. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
