this 90° sae flange 6000 psi is a code 62 heavy-duty split flange that complies with iso 12151-3 and sae j516 standards, with a rated pressure of 6000 psi. it features a 90° right-angle elbow structure and an end-face o-ring flat seal. manufactured from zinc-plated carbon steel with a reinforced split flange clamp for enhanced rigidity, it is compatible with wire-spiral high-pressure hoses, providing excellent resistance to vibration and leakage. please note that it is strictly non-interchangeable with code 61 3000 psi flanges.

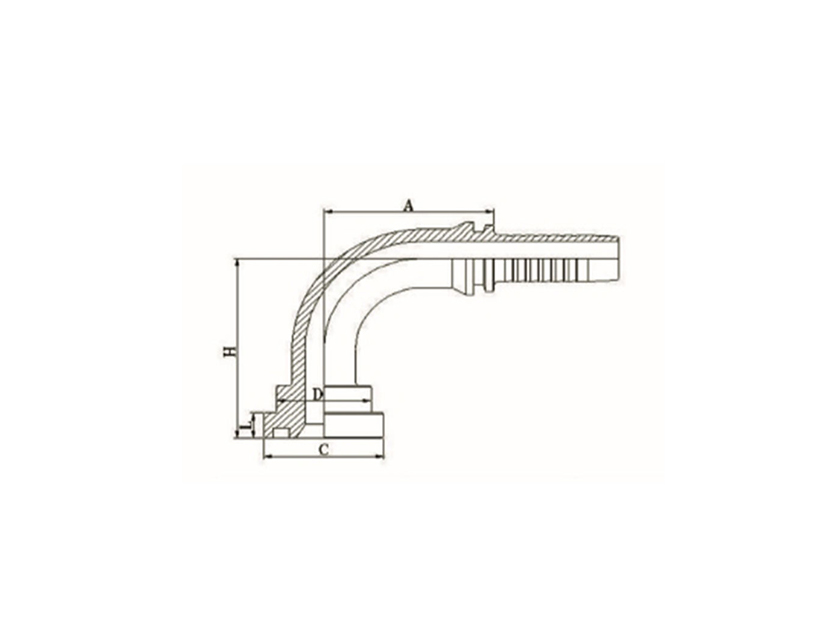

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | H | L | ||
| 87692-08-08 | 1/2" | 12 | 08 | 42.5 | 31.7 | 24 | 25 | 7.75 |
| 87692-12-10 | 3/4" | 16 | 10 | 56 | 41.3 | 32 | 56.5 | 8.76 |
| 87692-12-12 | 3/4" | 20 | 12 | 50.5 | 41.3 | 32 | 65.5 | 8.76 |
| 87692-16-12 | 1" | 20 | 12 | 65.5 | 47.6 | 38 | 69 | 9.53 |
| 87692-16-16 | 1" | 25 | 16 | 66 | 47.6 | 38 | 78 | 9.53 |
| 87692-16-20 | 1" | 32 | 20 | 91.5 | 47.6 | 38 | 85.5 | 9.53 |
| 87692-20-16 | 1.1/4" | 25 | 16 | 76.7 | 54 | 44 | 78.5 | 10.29 |
| 87692-20-20 | 1.1/4" | 32 | 20 | 75 | 54 | 44 | 92 | 10.29 |
| 87692-24-20 | 1.1/2" | 32 | 20 | 91.5 | 63.5 | 51 | 94.5 | 12.57 |
| 87692-24-24 | 1.1/2" | 40 | 24 | 89 | 63.5 | 51 | 107 | 12.57 |
| 87692-32-24 | 2" | 40 | 24 | 109.4 | 79.4 | 67 | 116 | 12.57 |
| 87692-32-32 | 2" | 50 | 32 | 115.5 | 79.4 | 67 | 138.5 | 12.57 |
Selection note: 90° SAE FLANGE 6000 PSI ISO 12151-3-SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
