code 61 light-duty split flange fitting with a rated pressure of 3000 psi. featuring a 90° right-angle elbow design and an end-face o-ring flat seal, it is equipped with a split flange clamp and manufactured from zinc-plated carbon steel. compatible with wire-braided hydraulic hoses, it facilitates right-angle routing in confined spaces without the need to twist the hose during installation. please note that its dimensions are strictly non-interchangeable with 6000 psi code 62 flanges.

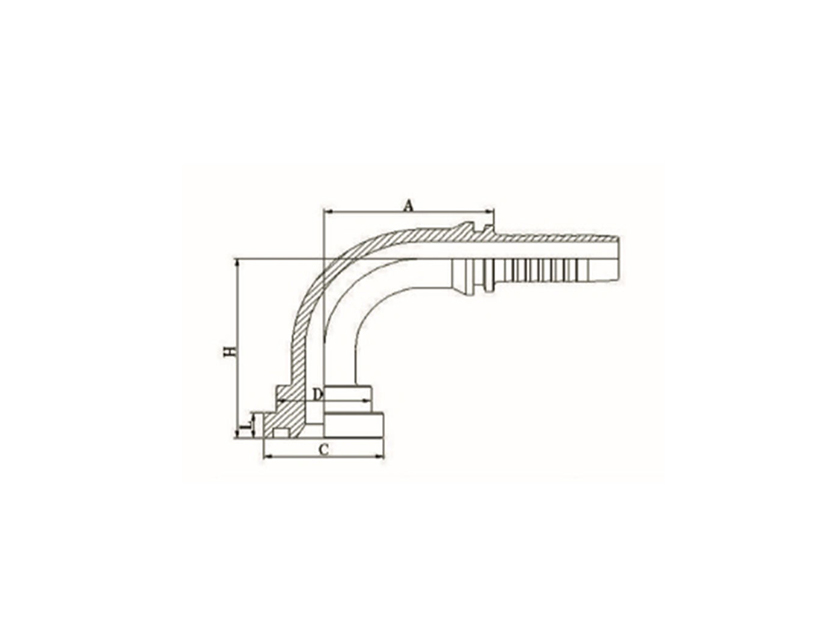

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | D | H | L | |
| 87341-08-08RW | 87342-08-08RW | 1/2" | 12 | 08 | 59.7 | 30.2 | 24 | 23.3 | 6.73 |
| 87341-12-08RW | 87342-12-08RW | 3/4" | 12 | 08 | 60.4 | 38.1 | 31.7 | 24 | 6.73 |
| 87341-12-10RW | 87342-12-10RW | 3/4" | 16 | 10 | 70.6 | 38.1 | 31.7 | 25.3 | 6.73 |
| 87341-12-12RW | 87342-12-12RW | 3/4" | 20 | 12 | 73.9 | 38.1 | 31.7 | 28.1 | 6.73 |
| 87341-12-16RW | 87342-12-16RW | 3/4" | 25 | 16 | 86.1 | 38.1 | 31.7 | 29.7 | 6.73 |
| 87341-16-12RW | 87342-16-12RW | 1" | 20 | 12 | 73.9 | 44.4 | 38 | 28.1 | 8 |
| 87341-16-16RW | 87342-16-16RW | 1" | 25 | 16 | 86.1 | 44.4 | 38 | 29.7 | 8 |
| 87341-16-20RW | 87342-16-20RW | 1" | 32 | 20 | 95.7 | 44.4 | 38 | 33.8 | 8 |
| 87341-20-16RW | 87342-20-16RW | 1.1/4" | 25 | 16 | 86.1 | 50.8 | 43 | 29.7 | 8 |
| 87341-20-20RW | 87342-20-20RW | 1.1/4" | 32 | 20 | 95.7 | 50.8 | 43 | 33.8 | 8 |
| 87341-24-20RW | 87342-24-20RW | 1.1/2" | 32 | 20 | 97.1 | 60.3 | 50 | 35.2 | 8 |
| 87341-24-24RW | 87342-24-24RW | 1.1/2" | 40 | 24 | 111.8 | 60.3 | 50 | 39.1 | 8 |
| 87341-32-24RW | 87342-32-24RW | 2" | 40 | 24 | 111.8 | 71.4 | 62 | 39.1 | 9.53 |
| 87341-32-32RW | 87342-32-32RW | 2" | 50 | 32 | 136.1 | 71.4 | 62 | 46.3 | 9.53 |
Selection note: 90° SAE FLANGE 3000 PSI ISO 12151-3-SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
