this 45° sae flange 3000 psi is a code 61 light-duty split flange that complies with iso 12151-3 and sae j516 standards, with a rated pressure of 3000 psi. it features a 45° elbow structure and an end-face o-ring flat seal, equipped with a split flange clamp. manufactured from zinc-plated carbon steel, it is compatible with wire-braided hoses, facilitating convenient installation in confined spaces. it is strictly non-interchangeable with code 62 6000 psi flanges.

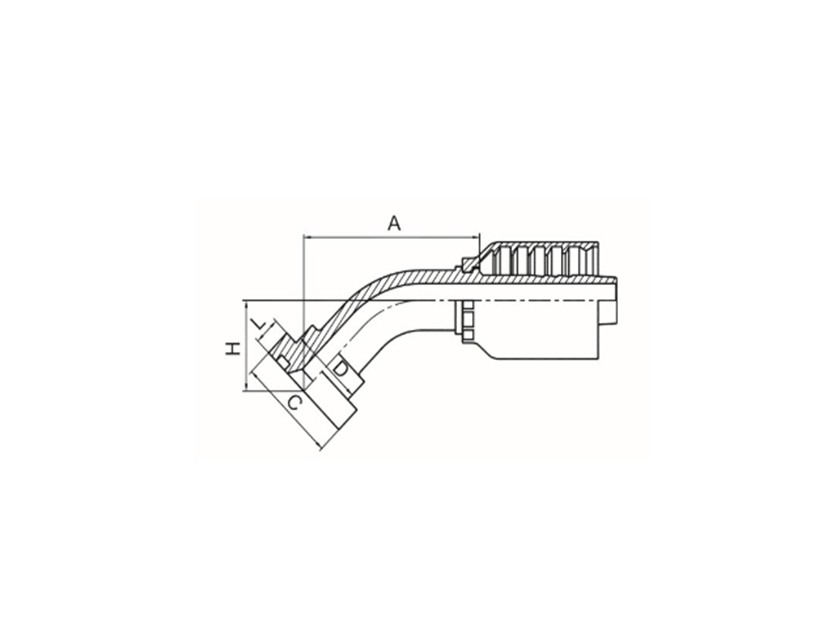

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | D | H | L | |
| 87341-08-08RW | 87342-08-08RW | 1/2" | 12 | 08 | 59.7 | 30.2 | 24 | 23.3 | 6.73 |
| 87341-12-08RW | 87342-12-08RW | 3/4" | 12 | 08 | 60.4 | 38.1 | 31.7 | 24 | 6.73 |
| 87341-12-10RW | 87342-12-10RW | 3/4" | 16 | 10 | 70.6 | 38.1 | 31.7 | 25.3 | 6.73 |
| 87341-12-12RW | 87342-12-12RW | 3/4" | 20 | 12 | 73.9 | 38.1 | 31.7 | 28.1 | 6.73 |
| 87341-12-16RW | 87342-12-16RW | 3/4" | 25 | 16 | 86.1 | 38.1 | 31.7 | 29.7 | 6.73 |
| 87341-16-12RW | 87342-16-12RW | 1" | 20 | 12 | 73.9 | 44.4 | 38 | 28.1 | 8 |
| 87341-16-16RW | 87342-16-16RW | 1" | 25 | 16 | 86.1 | 44.4 | 38 | 29.7 | 8 |
| 87341-16-20RW | 87342-16-20RW | 1" | 32 | 20 | 95.7 | 44.4 | 38 | 33.8 | 8 |
| 87341-20-16RW | 87342-20-16RW | 1.1/4" | 25 | 16 | 86.1 | 50.8 | 43 | 29.7 | 8 |
| 87341-20-20RW | 87342-20-20RW | 1.1/4" | 32 | 20 | 95.7 | 50.8 | 43 | 33.8 | 8 |
| 87341-24-20RW | 87342-24-20RW | 1.1/2" | 32 | 20 | 97.1 | 60.3 | 50 | 35.2 | 8 |
| 87341-24-24RW | 87342-24-24RW | 1.1/2" | 40 | 24 | 111.8 | 60.3 | 50 | 39.1 | 8 |
| 87341-32-24RW | 87342-32-24RW | 2" | 40 | 24 | 111.8 | 71.4 | 62 | 39.1 | 9.53 |
| 87341-32-32RW | 87342-32-32RW | 2" | 50 | 32 | 136.1 | 71.4 | 62 | 46.3 | 9.53 |
Selection note: 45° SAE FLANGE 3000 PSI. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
