this fitting features an end-face o-ring flat seal and a four-bolt split flange clamp structure, manufactured from zinc-plated carbon steel. it is compatible with wire-spiral high-pressure hoses, providing excellent resistance to shock and leakage. please note that its specifications are strictly non-interchangeable with 3000 psi code 61 flanges.

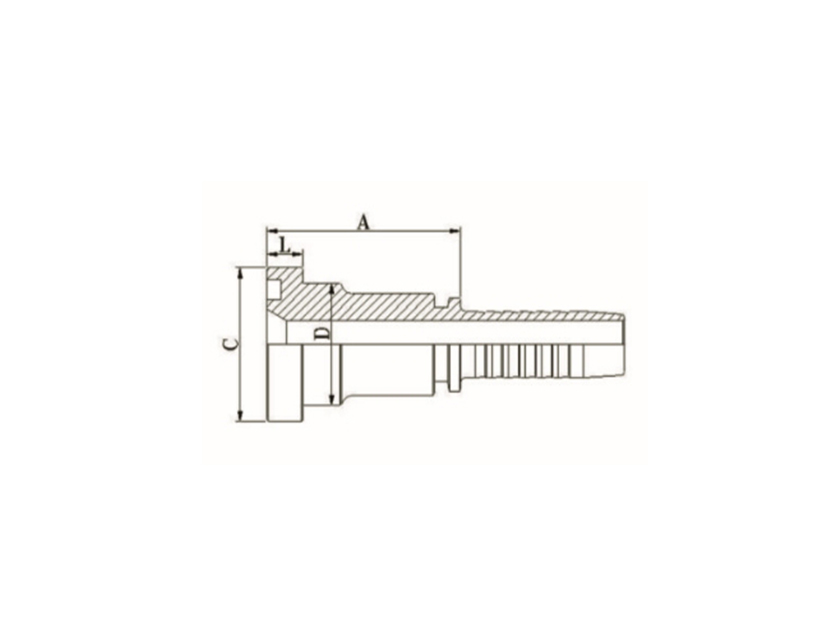

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | L | ||
| 97312-08-08 | 1/2" | 12 | 08 | 45.5 | 30.2 | 24 | 6.73 |
| 97312-12-08 | 3/4" | 12 | 08 | 47.5 | 38.1 | 31.7 | 6.73 |
| 97312-12-10 | 3/4" | 16 | 10 | 49 | 38.1 | 31.7 | 6.73 |
| 97312-12-12 | 3/4" | 20 | 12 | 48.5 | 38.1 | 31.7 | 6.73 |
| 97312-12-16 | 3/4" | 25 | 16 | 49 | 38.1 | 31.7 | 6.73 |
| 97312-16-12 | 1" | 20 | 12 | 51 | 44.4 | 38 | 8 |
| 97312-16-16 | 1" | 25 | 16 | 48 | 44.4 | 38 | 8 |
| 97312-16-20 | 1" | 32 | 20 | 53 | 44.4 | 38 | 8 |
| 97312-20-16 | 1.1/4" | 25 | 16 | 57 | 50.8 | 43 | 8 |
| 97312-20-20 | 1.1/4" | 32 | 20 | 56 | 50.8 | 43 | 8 |
| 97312-24-20 | 1.1/2" | 32 | 20 | 68 | 60.3 | 50 | 8 |
| 97312-24-24 | 1.1/2" | 40 | 24 | 74 | 60.3 | 50 | 8 |
| 97312-32-24 | 2" | 40 | 24 | 70 | 71.4 | 62 | 9.53 |
| 97312-32-32 | 2" | 50 | 32 | 70 | 71.4 | 62 | 9.53 |
| 97312-40-40 | 2.1/2" | 64 | 40 | 76 | 84.1 | 74 | 9.53 |
Selection note: SAE FLANGE 3000 PSI ISO 12151-3-SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
