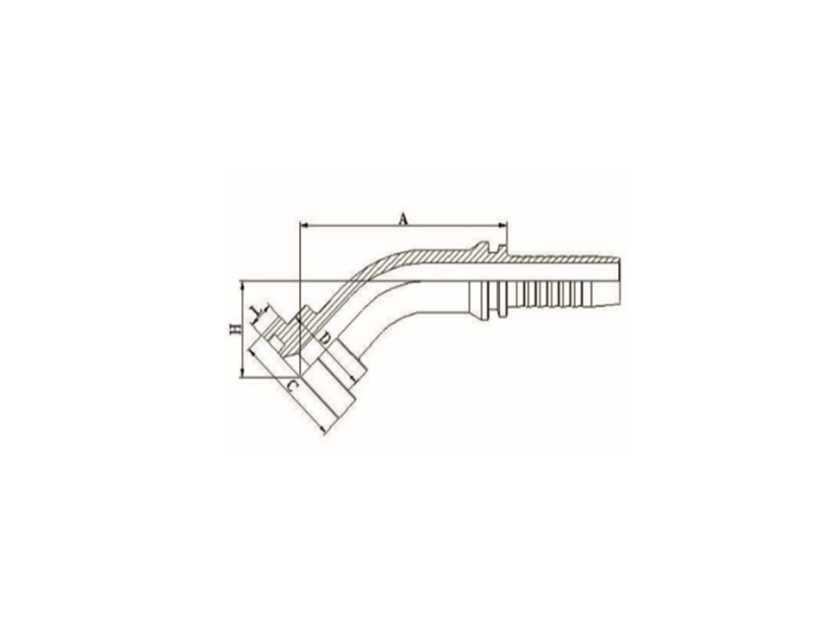

this fitting adopts a 45° angled structure with an end-face o-ring flat seal and a four-bolt split flange clamp, made of zinc-plated carbon steel. it offers excellent resistance to high-pressure shocks and prevents loosening from vibrations. compatible with high-pressure wire-braided and wire-spiral hydraulic hoses, it is specifically designed for space-saving installations at pipe corners, ensuring stable sealing and easy assembly and disassembly.
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | H | L | ||
| 87642-08-08 | 1/2" | 12 | 08 | 57.5 | 31.7 | 24 | 25 | 7.75 |
| 87642-08-12 | 1/2" | 20 | 12 | 77 | 31.7 | 24 | 29.6 | 7.75 |
| 87642-12-10 | 3/4" | 16 | 10 | 72.5 | 41.3 | 32 | 28.2 | 8.76 |
| 87642-12-12 | 3/4" | 20 | 12 | 75.5 | 41.3 | 32 | 32 | 8.76 |
| 87642-16-16 | 1" | 25 | 16 | 86 | 47.6 | 38 | 34 | 9.53 |
| 87642-20-20 | 1.1/4" | 32 | 20 | 100 | 54 | 44 | 40 | 10.29 |
| 87642-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 51 | 45.1 | 12.57 |
| 87642-24-24 | 1.1/2" | 40 | 24 | 112 | 63.5 | 51 | 46 | 12.57 |
| 87642-32-24 | 2" | 40 | 24 | 125.4 | 79.4 | 67 | 54.7 | 12.57 |
| 87642-32-32 | 2" | 50 | 32 | 143 | 79.4 | 67 | 49 | 12.57 |
Selection note: 45° SAE FLANGE 6000 PSI ISO 12151-3-SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
