45° sae flange 3000 psi complies with iso 12151-3 and sae j516 standards, classified as a code 61 light-duty four-bolt split flange fitting with a rated pressure of 3000 psi. the 45° elbow design accommodates space constraints at pipe corners, featuring an end-face o-ring flat seal and a zinc-plated carbon steel body. equipped with a split flange clamp, it is compatible with wire-braided hydraulic hoses. installation requires no hose rotation, allowing for easy assembly and disassembly. it is suitable for medium-pressure, medium-flow hydraulic systems and is strictly non-interchangeable with 6000 psi code 62 flanges.

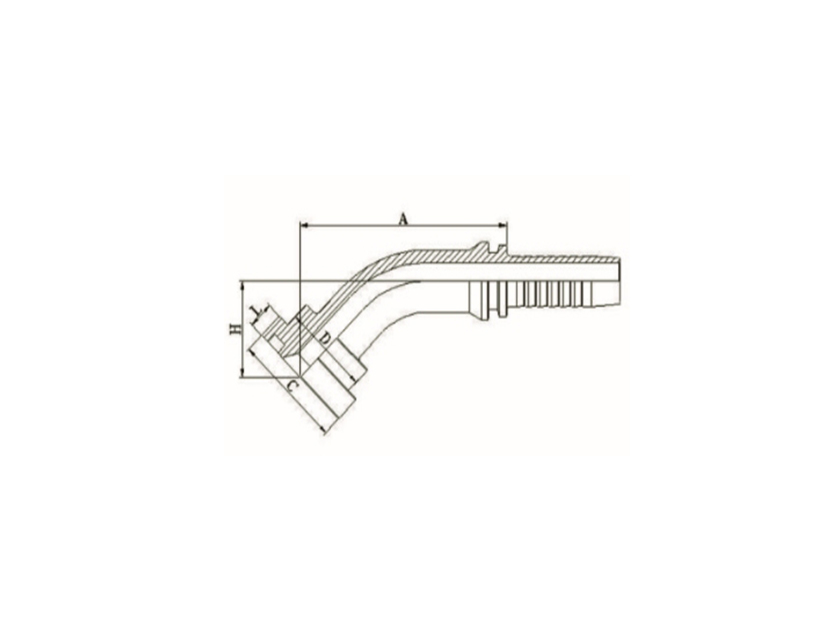

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | D | H | L | ||
| 87642-08-08 | 1/2" | 12 | 08 | 57.5 | 31.7 | 24 | 25 | 7.75 |
| 87642-08-12 | 1/2" | 20 | 12 | 77 | 31.7 | 24 | 29.6 | 7.75 |
| 87642-12-10 | 3/4" | 16 | 10 | 72.5 | 41.3 | 32 | 28.2 | 8.76 |
| 87642-12-12 | 3/4" | 20 | 12 | 75.5 | 41.3 | 32 | 32 | 8.76 |
| 87642-16-16 | 1" | 25 | 16 | 86 | 47.6 | 38 | 34 | 9.53 |
| 87642-20-20 | 1.1/4" | 32 | 20 | 100 | 54 | 44 | 40 | 10.29 |
| 87642-24-20 | 1.1/2" | 32 | 20 | 105.8 | 63.5 | 51 | 45.1 | 12.57 |
| 87642-24-24 | 1.1/2" | 40 | 24 | 112 | 63.5 | 51 | 46 | 12.57 |
| 87642-32-24 | 2" | 40 | 24 | 125.4 | 79.4 | 67 | 54.7 | 12.57 |
| 87642-32-32 | 2" | 50 | 32 | 143 | 79.4 | 67 | 49 | 12.57 |
Selection note: 45° SAE FLANGE 3000 PSI ISO 12151-3-SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
