THIS FITTING ACHIEVES A FLAT FACE SEAL BY UNIFORMLY TIGHTENING FOUR BOLTS TO COMPRESS THE SPLIT FLANGE CLAMP AGAINST THE END-FACE O-RING, EFFECTIVELY ISOLATING THE HYDRAULIC OIL. IT OFFERS SUPERIOR RESISTANCE TO PRESSURE IMPULSES AND EQUIPMENT VIBRATION, COMPLETELY ELIMINATING THE LOOSENING AND LEAKAGE ISSUES ASSOCIATED WITH THREADED FITTINGS. IT IS THE PREFERRED SEALING SOLUTION FOR MAIN OIL LINES WITH LARGE BORE DIAMETERS.
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|

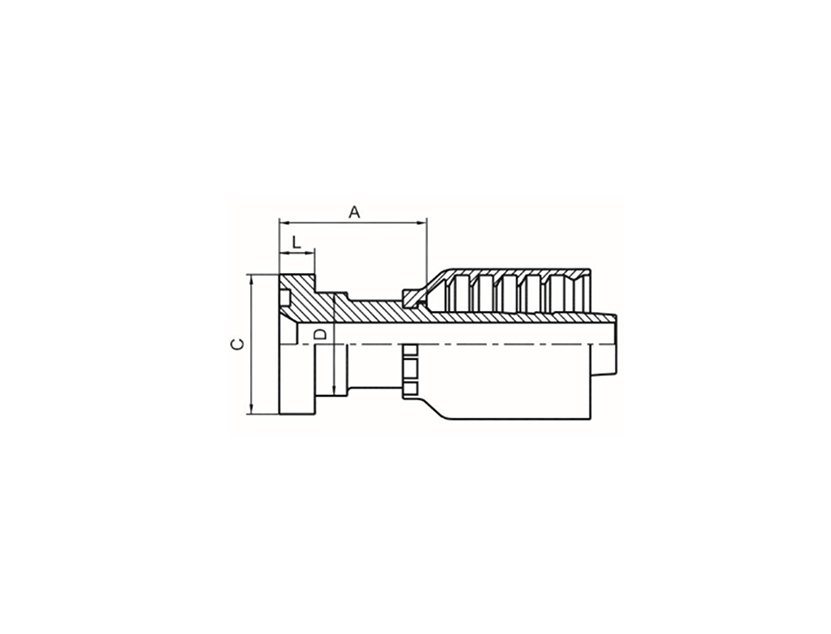

| BRAIDED | SPIRAL | DN | DASH | A | C | D | L | |
| 87611-08-08RW | 87612-08-08RW | 1/2" | 12 | 08 | 48.5 | 31.7 | 24 | 7.75 |
| 87611-12-08RW | 87612-12-08RW | 3/4" | 12 | 08 | 51.5 | 41.3 | 32 | 8.76 |
| 87611-12-10RW | 87612-12-10RW | 3/4" | 16 | 10 | 52 | 41.3 | 32 | 8.76 |
| 87611-12-12RW | 87612-12-12RW | 3/4" | 20 | 12 | 51 | 41.3 | 32 | 8.76 |
| 87611-12-16RW | 87612-12-16RW | 3/4" | 25 | 16 | 54.2 | 41.3 | 32 | 8.76 |
| 87611-16-12RW | 87612-16-12RW | 1" | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| 87611-16-16RW | 87612-16-16RW | 1" | 25 | 16 | 59.2 | 47.6 | 38 | 9.53 |
| 87611-16-20RW | 87612-16-20RW | 1" | 32 | 20 | 59.2 | 47.6 | 38 | 9.53 |
| 87611-20-16RW | 87612-20-16RW | 1.1/4" | 25 | 16 | 67.2 | 54 | 44 | 10.29 |
| 87611-20-20RW | 87612-20-20RW | 1.1/4" | 32 | 20 | 67.2 | 54 | 44 | 10.29 |
| 87611-24-20RW | 87612-24-20RW | 1.1/2" | 32 | 20 | 76.2 | 63.5 | 51 | 12.57 |
| 87611-24-24RW | 87612-24-24RW | 1.1/2" | 40 | 24 | 77 | 63.5 | 51 | 12.57 |
| 87611-32-24RW | 87612-32-24RW | 2" | 40 | 24 | 88 | 79.4 | 67 | 12.57 |
| 87611-32-32RW | 87612-32-32RW | 2" | 50 | 32 | 91.5 | 79.4 | 67 | 12.57 |
Selection note: SAE FLANGE 6000 PSI. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
