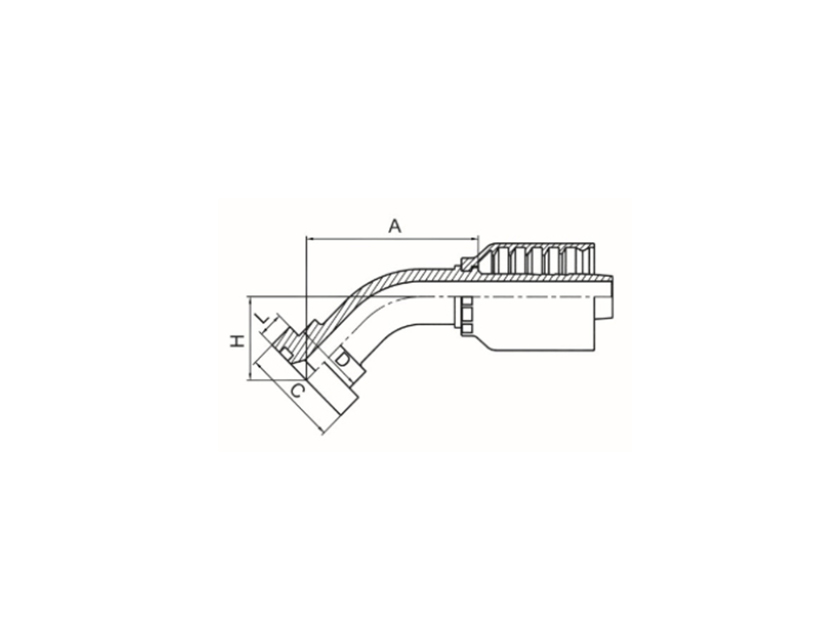

THIS 45° FORGED FLANGE FITTING CONFORMS TO THE JAPANESE FLANGE STANDARD AND FEATURES AN O-RING SEAL ON THE FLAT FLANGE FACE. IT IS EQUIPPED WITH CRIMP FERRULES FOR HIGH-PRESSURE HYDRAULIC HOSES.
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | D | H | L | |
| 88141-10-08RW | 88142-10-08RW | 5/8" | 12 | 08 | 60.4 | 34.2 | 27.8 | 24 | 6.7 |
| 88141-10-10RW | 88142-10-10RW | 5/8" | 16 | 10 | 70.6 | 34.2 | 27.8 | 25.3 | 6.7 |
| 88141-10-12RW | 88142-10-12RW | 5/8" | 20 | 12 | 73.9 | 34.2 | 27.8 | 28.1 | 6.7 |
Selection note: 45° JIS FLANGE. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
