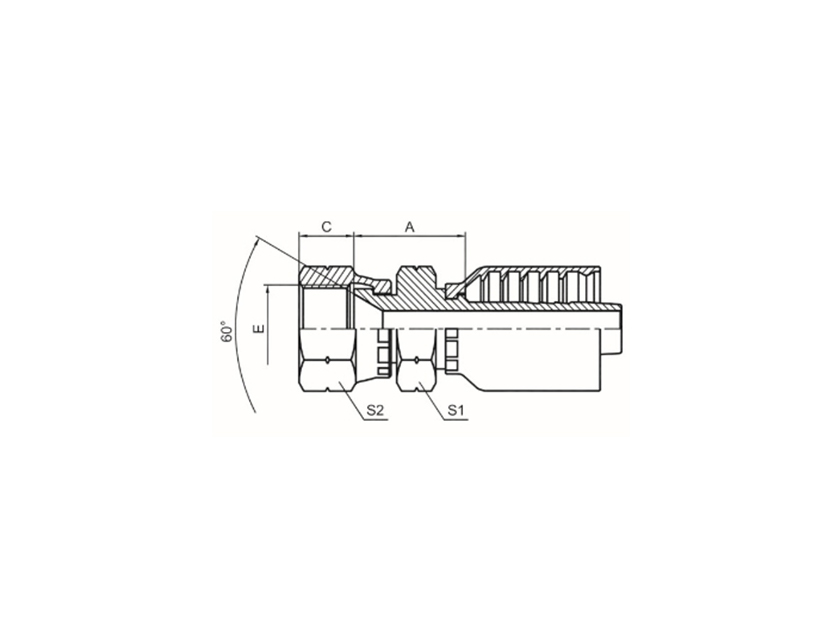

this fitting features jis b8363 british standard female parallel threads and a built-in 60° internal cone metal-to-metal seal. it is available with a double hex design to prevent follow-up rotation during installation.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | S2 | |
| 29611-04-04RW | -- | G1/4" X19 | 6 | 04 | 20.5 | 8 | 19 | 19 |
| 29611-04-05RW | -- | G1/4" X19 | 8 | 05 | 20.5 | 8 | 19 | 19 |
| 29611-06-04RW | -- | G3/8" X19 | 6 | 04 | 23.5 | 9 | 22 | 22 |
| 29611-06-06RW | -- | G3/8" X19 | 10 | 06 | 23 | 9 | 22 | 22 |
| 29611-08-06RW | -- | G1/2" X14 | 10 | 06 | 24.5 | 12 | 27 | 27 |
| 29611-08-08RW | 29612-08-08RW | G1/2" X14 | 12 | 08 | 25.5 | 12 | 27 | 27 |
| 29611-10-10RW | 29612-10-10RW | G5/8" X14 | 16 | 10 | 29.5 | 11.5 | 30 | 30 |
| 29611-12-10RW | 29612-12-10RW | G3/4" X14 | 16 | 10 | 29.5 | 13.5 | 32 | 32 |
| 29611-12-12RW | 29612-12-12RW | G3/4" X14 | 20 | 12 | 28.5 | 13.5 | 32 | 32 |
| 29611-16-16RW | 29612-16-16RW | G1" X14 | 25 | 16 | 33.2 | 16 | 41 | 41 |
| 29611-20-20WRW | 29612-20-20WRW | G1.1/4" X11 | 32 | 20 | 39.2 | 18.5 | 50 | 50 |
| 29611-24-24WRW | 29612-24-24WRW | G1.1/2" X11 | 40 | 24 | 41.5 | 19 | 55 | 55 |
| 29611-32-32WRW | 29612-32-32WRW | G2" X11 | 50 | 32 | 49 | 23 | 70 | 70 |
Selection note: JIS B8363 BRITISH STANDARD FEMALE THREAD 60° INTERNAL CONE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
