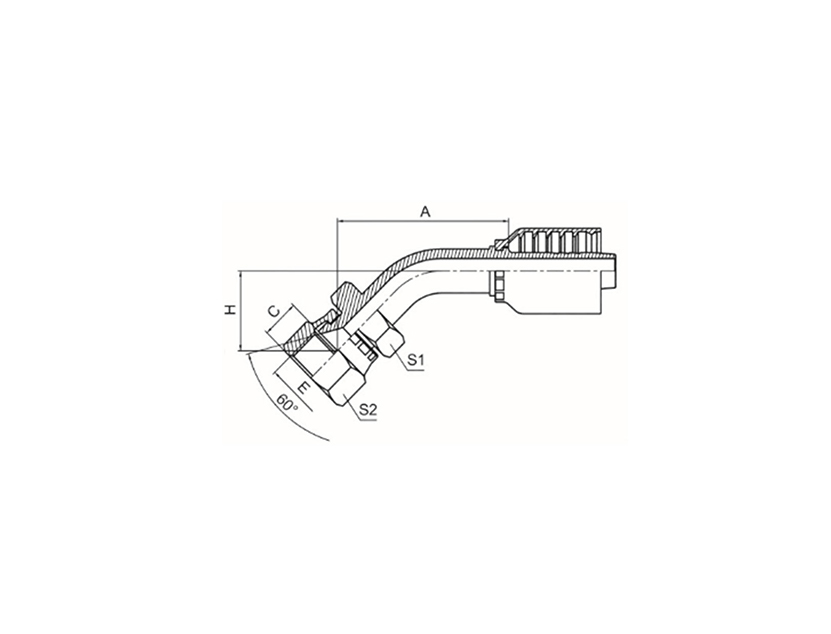

THIS 45° INTEGRATED FORGED ELBOW FITTING FEATURES JAPANESE METRIC FEMALE THREADS AND A BUILT-IN 60° INTERNAL CONE METAL-TO-METAL SEAL. IT IS AVAILABLE WITH A DOUBLE HEX DESIGN TO PREVENT FOLLOW-UP ROTATION DURING INSTALLATION.
| PART NO. |
THREAD E |
HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S1 | S2 | |
| 28641-14-04RW | -- | M14X1.5 | 6 | 04 | 44.9 | 10.5 | 21.3 | 19 | 19 |
| 28641-16-05RW | -- | M16X1.5 | 8 | 05 | 49.1 | 10 | 24.3 | 22 | 22 |
| 28641-18-06RW | -- | M18X1.5 | 10 | 06 | 50.9 | 11.5 | 25.7 | 24 | 24 |
| 28641-20-08RW | 28642-20-08RW | M20X1.5 | 12 | 08 | 63.9 | 12 | 27.5 | 27 | 27 |
| 28641-22-08RW | 28642-22-08RW | M22X1.5 | 12 | 08 | 63.9 | 14 | 27.5 | 27 | 27 |
| 28641-24-10RW | 28642-24-10RW | M24X1.5 | 16 | 10 | 75.9 | 15 | 30.6 | 32 | 32 |
| 28641-30-12RW | 28642-30-12RW | M30X1.5 | 20 | 12 | 79.9 | 18.3 | 34.1 | 36 | 36 |
| 28641-33-16RW | 28642-33-16RW | M33X1.5 | 25 | 16 | 92.1 | 21.3 | 35.7 | 41 | 41 |
| 28641-36-20RW | 28642-36-20RW | M36X1.5 | 32 | 20 | 103.8 | 20 | 41.9 | 46 | 46 |
| 28641-42-24WRW | 28642-42-24WRW | M42X1.5 | 40 | 24 | 122.4 | 18.8 | 49.7 | 55 | 55 |
Selection note: 45° JAPANESE METRIC FEMALE THREAD 60° INTERNAL CONE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
