manufactured from precision-forged carbon steel with a zinc-plated finish, featuring a 90° integrated elbow structure. it utilizes a japanese standard flange sealing structure with an o-ring seal on the flat flange face and is equipped with hex wrench flats. it is compatible with crimp ferrules for high-pressure wire-spiral hydraulic hoses.

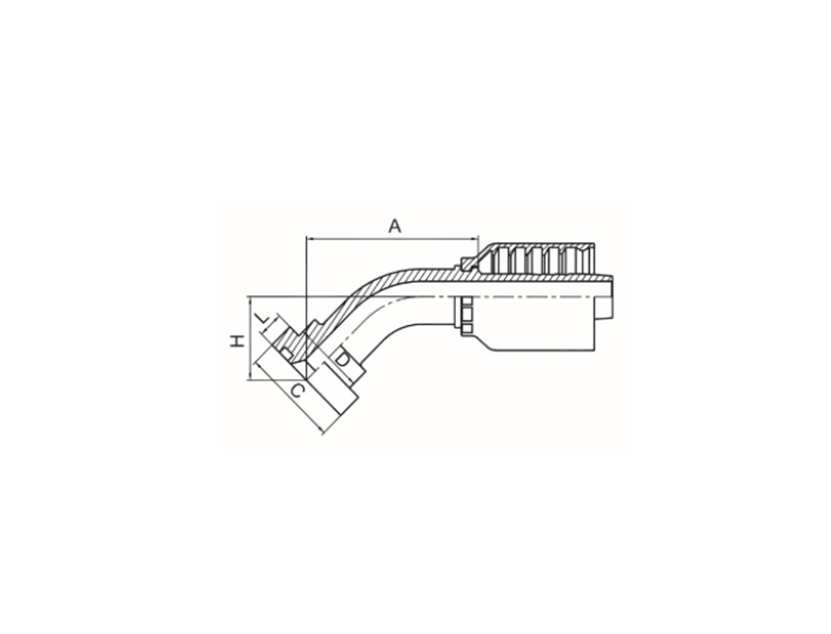

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | D | H | L | |
| 88191-10-08RW | 88192-10-08RW | 5/8" | 12 | 08 | 42.5 | 34.2 | 27.8 | 48 | 6.7 |
| 88191-10-10RW | 88192-10-10RW | 5/8" | 16 | 10 | 57 | 34.2 | 27.8 | 52.5 | 6.7 |
| 88191-10-12RW | 88192-10-12RW | 5/8" | 20 | 12 | 63.2 | 34.2 | 27.8 | 59 | 6.7 |
Selection note: 90° JIS FLANGE. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
