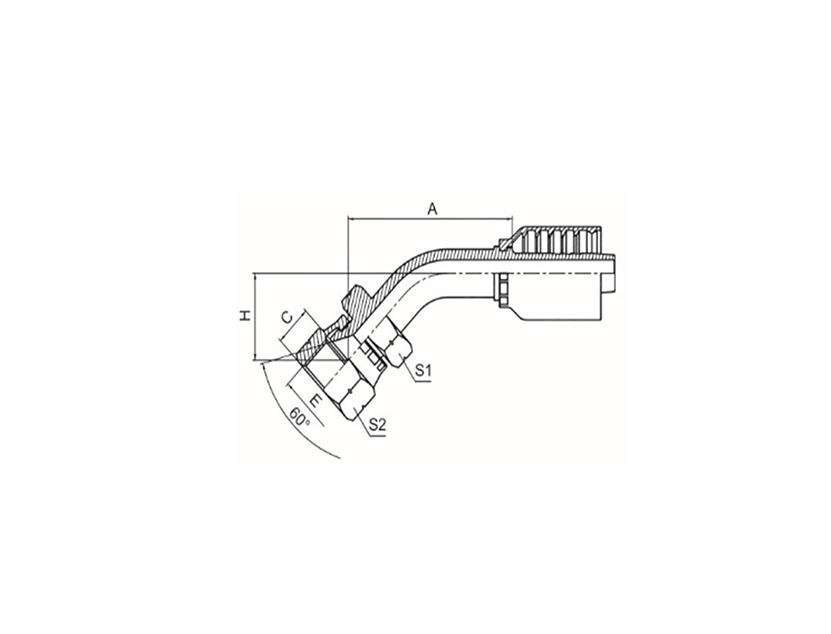

THIS 45° JIS B8363 BRITISH STANDARD FEMALE THREAD FITTING FEATURES A 60° INTERNAL CONE METAL-TO-METAL SEAL WITH AN OPTIMAL BENDING ANGLE, MAKING IT HIGHLY COMPATIBLE WITH HOSES FOR JAPANESE HYDRAULIC EQUIPMENT.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S1 | S2 | |
| 29641-04-04RW | -- | G1/4" X19 | 6 | 04 | 44.9 | 8 | 21.3 | 19 | 19 |
| 29641-06-06RW | -- | G3/8" X19 | 10 | 06 | 50.2 | 9 | 25 | 22 | 22 |
| 29641-08-08RW | 29642-08-08RW | G1/2" X14 | 12 | 08 | 63.9 | 12 | 27.5 | 27 | 27 |
| 29641-10-10RW | 29642-10-10RW | G5/8" X14 | 16 | 10 | 76.6 | 11.5 | 31.3 | 30 | 30 |
| 29641-12-12RW | 29642-12-12RW | G3/4" X14 | 20 | 12 | 79.9 | 13.5 | 34.1 | 32 | 32 |
| 29641-16-16RW | 29642-16-16RW | G1" X14 | 25 | 16 | 93.2 | 16 | 36.8 | 41 | 41 |
| 29641-20-20WRW | 29642-20-20WRW | G1.1/4" X11 | 32 | 20 | 107 | 18.5 | 45.1 | 50 | 50 |
| 29641-24-24WRW | 29642-24-24WRW | G1.1/2" X11 | 40 | 24 | 122.8 | 19 | 50.1 | 55 | 55 |
| 29641-32-32WRW | 29642-32-32WRW | G2" X11 | 50 | 32 | 149.9 | 23 | 60.1 | 70 | 70 |
Selection note: 45° JIS B8363 BRITISH STANDARD FEMALE THREAD 60° INTERNAL CONE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
