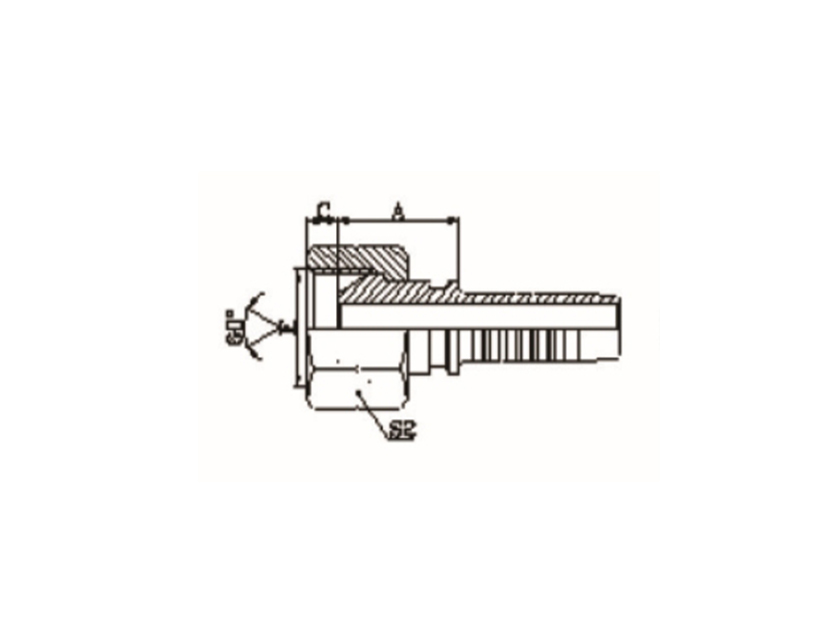

manufactured from precision-forged carbon steel as a single piece with a zinc-plated finish for rust resistance. this fitting features bspp female parallel threads and a 60° flare metal-to-metal seal at the end, which locks securely by mating with a corresponding 60° internal cone port or fitting to achieve sealing without the need for o-rings. 。
| PART NO. | HOSE OD | HOSE | SIZE | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | |
| 22611-02-03 | -- | G1/8" X28 | 5 | 03 | 15 | 5.5 | 14 |
| 22611-02-04 | -- | G1/8" X28 | 6 | 04 | 17.5 | 5.5 | 14 |
| 22611-04-03 | -- | G1/4" X19 | 5 | 03 | 17 | 5.5 | 19 |
| 22611-04-04 | -- | G1/4" X19 | 6 | 04 | 19 | 5.5 | 19 |
| 22611-04-05 | -- | G1/4" X19 | 8 | 05 | 19 | 5.5 | 19 |
| 22611-04-06 | -- | G1/4" X19 | 10 | 06 | 19 | 5.5 | 19 |
| 22611-06-04 | -- | G3/8" X19 | 6 | 04 | 21 | 6.3 | 22 |
| 22611-06-05 | -- | G3/8" X19 | 8 | 05 | 21 | 6.3 | 22 |
| 22611-06-06 | -- | G3/8" X19 | 10 | 06 | 21 | 6.3 | 22 |
| 22611-06-08 | 22612-06-08 | G3/8" X19 | 12 | 08 | 21.5 | 6.3 | 22 |
| 22611-08-06T | 22612-08-06T | G1/2" X14 | 10 | 06 | 21 | 7.5 | 27 |
| 22611-08-08 | 22612-08-08 | G1/2" X14 | 12 | 08 | 23 | 7.5 | 27 |
| 22611-10-08 | 22612-10-08 | G5/8" X14 | 12 | 08 | 23.5 | 9.5 | 30 |
| 22611-10-10 | 22612-10-10 | G5/8" X14 | 16 | 10 | 24.5 | 9.5 | 30 |
| 22611-12-08T | 22612-12-08T | G3/4" X14 | 12 | 08 | 22 | 10.9 | 32 |
| 22611-12-10 | 22612-12-10 | G3/4" X14 | 16 | 10 | 24.5 | 10.9 | 32 |
| 22611-12-12 | 22612-12-12 | G3/4" X14 | 20 | 12 | 24.5 | 10.9 | 32 |
| 22611-16-12T | 22612-16-12T | G1" X11 | 20 | 12 | 24 | 11.7 | 41 |
| 22611-16-14 | 22612-16-14 | G1" X11 | 22 | 14 | 26 | 11.7 | 41 |
| 22611-16-16 | 22612-16-16 | G1" X11 | 25 | 16 | 27.5 | 11.7 | 41 |
| 22611-20-16T | 22612-20-16T | G1.1/4" X11 | 25 | 16 | 27.5 | 11 | 50 |
| 22611-20-20W | 22612-20-20W | G1.1/4" X11 | 32 | 20 | 30.5 | 11 | 50 |
| 22611-24-20T | 22612-24-20T | G1.1/2" X11 | 32 | 20 | 32 | 13 | 55 |
| 22611-24-24W | 22612-24-24W | G1.1/2" X11 | 40 | 24 | 32 | 13 | 55 |
| 22611-32-24T | 22612-32-24T | G2" X11 | 40 | 24 | 30 | 16 | 65 |
| 22611-32-32W | 22612-32-32W | G2" X11 | 50 | 32 | 31.9 | 16 | 70 |
Selection note: BSPP FEMALE THREAD 60° FLARE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
