the head is equipped with an internal 60° metal cone metal-to-metal seal, which locks securely by mating with a bspp female 60° flare fitting, achieving a pure metal-to-metal seal without the need for sealing rings. available in straight, 45°, and 90° elbow configurations. compatible with standard and heavy-duty crimp ferrules for wire-braided and wire-spiral hydraulic hoses, it delivers high crimp bond strength, excellent pull-out resistance, and superior pressure impulse performance, ensuring leak-free operation under vibration conditions.

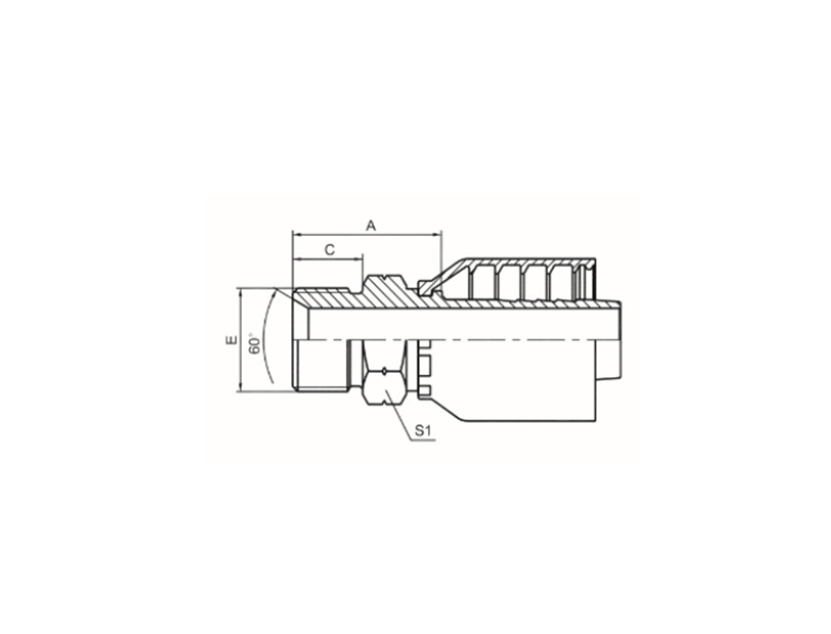

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 12211-02-04RW | -- | G1/8" X28 | 6 | 04 | 22 | 10 | 12 |
| 12211-02-04RW | -- | G1/4" X28 | 6 | 04 | 24 | 12 | 14 |
| 12211-02-04RW | -- | G1/4" X28 | 8 | 05 | 24 | 12 | 14 |
| 12211-02-04RW | -- | G1/4" X28 | 10 | 06 | 23.5 | 12 | 14 |
| 12211-02-04RW | -- | G3/8" X19 | 6 | 04 | 25.5 | 13.5 | 17 |
| 12211-02-04RW | -- | G3/8" X19 | 8 | 05 | 25.5 | 13.5 | 17 |
| 12211-02-04RW | -- | G3/8" X19 | 10 | 06 | 25 | 13.5 | 17 |
| 12211-02-04RW | 12212-02-04RW | G3/8" X19 | 12 | 08 | 26 | 13.5 | 19 |
| 12211-08-06RW | 12212-08-06RW | G1/2" X14 | 10 | 06 | 29.5 | 16 | 22 |
| 12211-08-08RW | 12212-08-08RW | G1/2" X14 | 12 | 08 | 30.5 | 16 | 22 |
| 12211-08-10RW | 12212-08-10RW | G1/2" X14 | 16 | 10 | 29.5 | 16 | 22 |
| 12211-10-10RW | 12212-10-10RW | G5/8" X14 | 16 | 10 | 57 | 8 | 27 |
| 12211-10-12RW | 12212-10-12RW | G5/8" X14 | 20 | 12 | 63.2 | 8 | 30 |
| 12211-12-08RW | 12212-12-08RW | G3/4" X14 | 12 | 08 | 35 | 18.5 | 27 |
| 12211-12-10RW | 12212-12-10RW | G3/4" X14 | 16 | 10 | 34.5 | 18.5 | 27 |
| 12211-12-12RW | 12212-12-12RW | G3/4" X14 | 20 | 12 | 38.7 | 18.5 | 32 |
| 12211-16-12RW | 12212-16-12RW | G1" X11 | 20 | 12 | 37.5 | 20.5 | 36 |
| 12211-16-16RW | 12212-16-16RW | G1" X11 | 25 | 16 | 40.7 | 20.5 | 36 |
| 12211-20-16RW | 12212-20-16RW | G1.1/4" X11 | 25 | 16 | 42.7 | 20.5 | 46 |
| 12211-20-20RW | 12212-20-20RW | G1.1/4" X11 | 32 | 20 | 48 | 23 | 50 |
| 12211-24-24RW | 12212-24-24RW | G1.1/2" X11 | 40 | 24 | 52.5 | 25.5 | 65 |
| 12211-32-32RW | 12212-32-32RW | G2" X11 | 50 | 32 | 56 | 25.5 | 65 |
Selection note: BSPP MALE THREAD 60° INTERNAL CONE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
