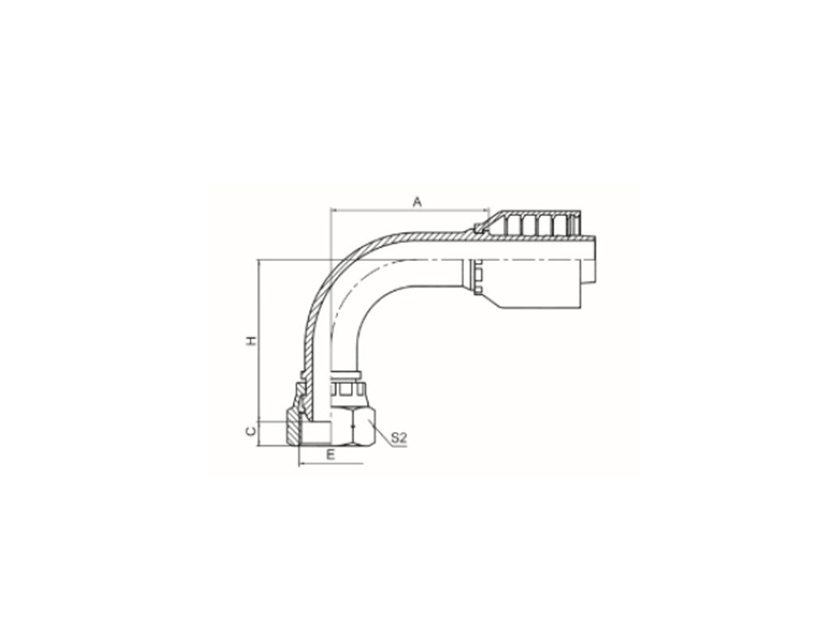

manufactured from precision-forged carbon steel as a single piece with a zinc-plated finish for rust resistance. this 90° elbow structure features bspp female parallel threads and an internal 60° metal spherical self-centering metal-to-metal seal. the spherical seat can automatically compensate for minor angular misalignments during installation, achieving a pure metal-to-metal seal without the need for o-rings.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 22191-02-04RW | -- | G1/8" X28 | 6 | 04 | 31.5 | 2 | 38 | 14 |
| 22191-04-04RW | -- | G1/4" X19 | 6 | 04 | 31.5 | 4 | 38 | 19 |
| 22191-06-05RW | -- | G3/8" X19 | 8 | 05 | 34.5 | 5 | 42 | 22 |
| 22191-06-06RW | -- | G3/8" X19 | 10 | 06 | 36.3 | 5 | 44.3 | 22 |
| 22191-06-08RW | 22192-06-08RW | G3/8" X19 | 12 | 08 | 42.5 | 5 | 50.5 | 22 |
| 22191-08-04RW | -- | G1/2" X14 | 6 | 04 | 31.5 | 6 | 38.5 | 27 |
| 22191-08-06RW | -- | G1/2" X14 | 10 | 06 | 36.3 | 6 | 43.8 | 27 |
| 22191-08-08RW | 22192-08-08RW | G1/2" X14 | 12 | 08 | 42.5 | 6 | 52.5 | 27 |
| 22191-08-10RW | 22192-08-10RW | G1/2" X14 | 16 | 10 | 57 | 6 | 57 | 27 |
| 22191-10-10RW | 22192-10-10RW | G5/8" X14 | 16 | 10 | 57 | 8 | 57.5 | 30 |
| 22191-10-12RW | 22192-10-12RW | G5/8" X14 | 20 | 12 | 63.2 | 8 | 64 | 30 |
| 22191-12-08RW | 22192-12-08RW | G3/4" X14 | 12 | 08 | 42.5 | 9.5 | 50.5 | 32 |
| 22191-12-10RW | 22192-12-10RW | G3/4" X14 | 16 | 10 | 57 | 9.5 | 55 | 32 |
| 22191-12-12RW | 22192-12-12RW | G3/4" X14 | 20 | 12 | 63.2 | 9.5 | 65 | 32 |
| 22191-16-12RW | 22192-16-12RW | G1" X11 | 20 | 12 | 63.2 | 11 | 61.5 | 41 |
| 22191-16-16RW | 22192-16-16RW | G1" X11 | 25 | 16 | 78.9 | 11 | 75 | 41 |
| 22191-20-16RW | 22192-20-16RW | G1.1/4" X11 | 25 | 16 | 78.9 | 11 | 73 | 50 |
| 22191-20-20RW | 22192-20-20RW | G1.1/4" X11 | 32 | 20 | 92.7 | 10 | 90 | 50 |
| 22191-24-24RW | 22192-24-24RW | G1.1/2" X11 | 40 | 24 | 111.4 | 11.5 | 108 | 55 |
| 22191-32-32RW | 22192-32-32RW | G2" X11 | 50 | 32 | 138.6 | 15 | 129.3 | 70 |
Selection note: 90° BSPP FEMALE SPHERICAL SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
