this fitting consists of three components: a core mandrel, a swivel sleeve, and a lock nut, with a built-in 60° spherical sealing pair. it allows for 360° free rotation and multi-angle swiveling to eliminate twisting stress during hose installation. it also features double hex wrench flats to prevent the fitting from rotating with the hose during tightening.

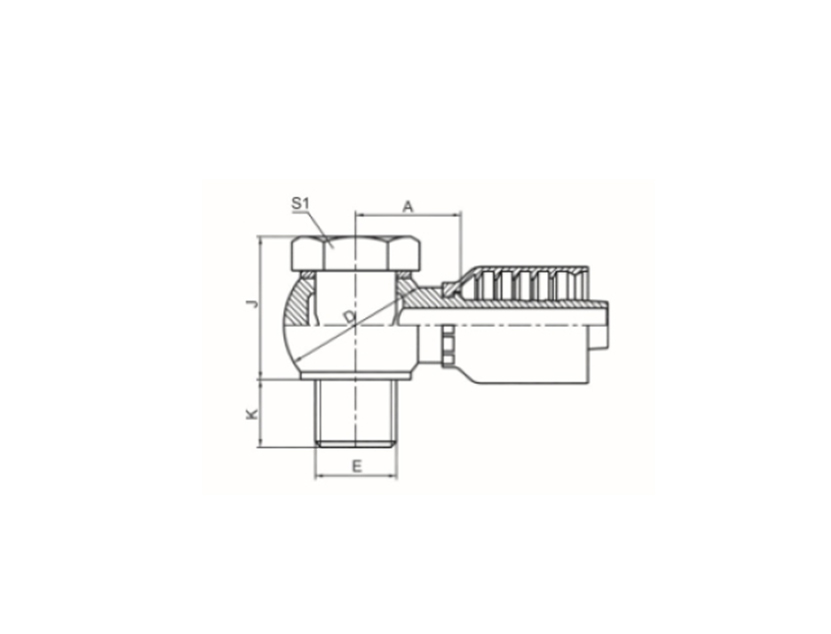

| PART NO. | THREAD E | HOSE BORE | BONDED | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | D | J | K | S1 | ||
| 72011-02-04RW | -- | G1/8" X28 | 6 | 04 | ZHD-10 | 20 | 22 | 24.8 | 9.5 | 14 |
| 72011-04-04RW | -- | G1/4" X19 | 6 | 04 | ZHD-14 | 21 | 24 | 25 | 9.5 | 19 |
| 72011-04-05RW | -- | G1/4" X19 | 8 | 05 | ZHD-14 | 21 | 24 | 25 | 9.5 | 19 |
| 72011-04-06RW | -- | G1/4" X19 | 10 | 06 | ZHD-14 | 20.5 | 24 | 25 | 9.5 | 19 |
| 72011-06-04RW | -- | G3/8" X19 | 6 | 04 | ZHD-18 | 23.5 | 29 | 31 | 14.5 | 22 |
| 72011-06-05RW | -- | G3/8" X19 | 8 | 05 | ZHD-18 | 23.5 | 29 | 31 | 14.5 | 22 |
| 72011-06-06RW | -- | G3/8" X19 | 10 | 06 | ZHD-18 | 23 | 29 | 31 | 14.5 | 22 |
| 72011-06-08RW | 72012-06-08RW | G3/8" X19 | 12 | 08 | ZHD-18 | 23.5 | 29 | 31 | 14.5 | 22 |
| 72011-08-05RW | -- | G1/2" X14 | 8 | 05 | ZHD-22 | 29 | 38 | 37.5 | 15 | 27 |
| 72011-08-06RW | -- | G1/2" X14 | 10 | 06 | ZHD-22 | 28.5 | 38 | 37.5 | 15 | 27 |
| 72011-08-08RW | 72012-08-08RW | G1/2" X14 | 12 | 08 | ZHD-22 | 28.5 | 38 | 37.5 | 15 | 27 |
| 72011-08-10RW | 72012-08-10RW | G1/2" X14 | 16 | 10 | ZHD-22 | 30.5 | 38 | 37.5 | 15 | 27 |
| 72011-10-10RW | 72012-10-10RW | G5/8" X14 | 16 | 10 | ZHD-22 | 29.5 | 40 | 41 | 17.5 | 30 |
| 72011-12-10RW | 72012-12-10RW | G3/4" X14 | 16 | 10 | ZGD-27 | 33.5 | 48 | 45 | 21 | 32 |
| 72011-12-12RW | 72012-12-12RW | G3/4" X14 | 20 | 12 | ZHD-27 | 32 | 48 | 45 | 21 | 32 |
| 72011-16-08RW | 72012-16-08RW | G1" X11 | 12 | 08 | ZHD-33 | 40.5 | 60 | 59 | 22.5 | 41 |
| 72011-16-12RW | 72012-16-12RW | G1" X11 | 20 | 12 | ZHD-33 | 40 | 60 | 59 | 22.5 | 41 |
| 72011-16-16RW | 72012-16-16RW | G1" X11 | 25 | 16 | ZHD-33 | 43.2 | 60 | 59 | 22.5 | 41 |
Selection note: BRITISH STANDARD SWIVEL BODY. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
