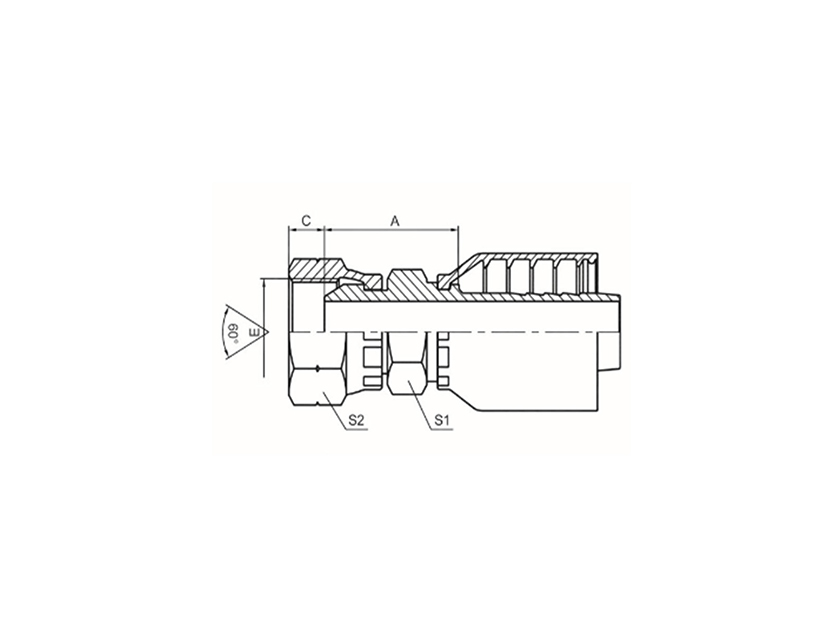

this fitting features bspp female parallel threads and a 60° flare metal-to-metal seal at the head, achieving sealing through precise cone-to-cone contact without the need for sealing rings. it features a double hex design with wrench flats on both ends, allowing for two-wrench installation. this prevents the fitting from rotating during tightening, eliminating hose twisting and cone misalignment to ensure leak-free operation.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 22611D-02-04MRW | -- | G1/4" X19 | 6 | 04 | 23 | 5.5 | 12 | 19 |
| 22611D-06-06MRW | -- | G3/8" X19 | 10 | 06 | 23.7 | 6.3 | 17 | 22 |
| 22611D-08-08MRW | 22612D-08-08MRW | G1/2" X14 | 12 | 08 | 28.5 | 7.5 | 22 | 27 |
| 22611D-10-10MRW | 22612D-10-10MRW | G5/8" X14 | 10 | 06 | 28 | 9.5 | 22 | 30 |
| 22611D-12-12MRW | 22612D-12-12MRW | G3/4" X14 | 20 | 12 | 31.1 | 10.9 | 27 | 32 |
| 22611D-16-16MRW | 22612D-16-16MRW | G1" X11 | 25 | 16 | 36.5 | 11.7 | 32 | 41 |
| 22611D-20-20MRW | 22612D-20-20MRW | G1.1/4" X11 | 32 | 20 | 42.7 | 11 | 41 | 50 |
| 22611D-24-24MRW | 22612D-24-24MRW | G1.1/2" X11 | 40 | 24 | 43 | 13 | 46 | 55 |
| 22611D-32-32MRW | 22612D-32-32MRW | G2" X11 | 50 | 32 | 49 | 16 | 55 | 70 |
Selection note: BSPP FEMALE THREAD 60° FLARE SEAT DOUBLE HEX. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
