offering dual functionality with lower inventory costs. it features high assembly tolerance, allowing it to mate with 60° cone female fittings or be locked directly onto flat face ports using a combination washer. it is highly adaptable for pipeline modifications in various scenarios, including european standard agricultural machinery, marine equipment, and imported machine tools.

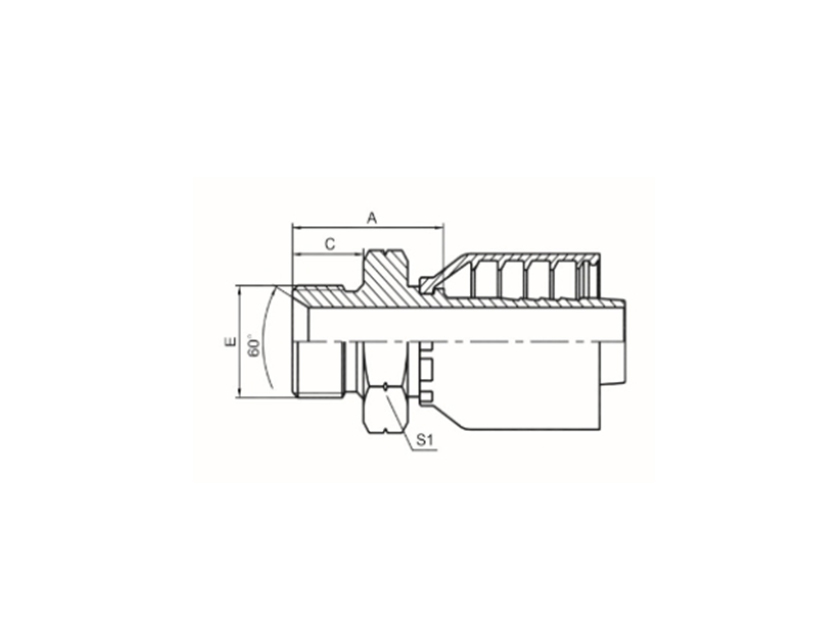

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 12611A-02-04RW | -- | R1/8" X28 | 6 | 04 | 22 | 10 | 14 |
| 12611A-04-04RW | -- | R1/4" X28 | 6 | 04 | 24 | 12 | 19 |
| 12611A-04-05RW | -- | R1/4" X28 | 8 | 05 | 24 | 12 | 19 |
| 12611A-04-06RW | -- | R1/4" X28 | 10 | 06 | 23.5 | 12 | 19 |
| 12611A-06-04RW | -- | G3/8" X19 | 6 | 04 | 27.5 | 13.5 | 22 |
| 12611A-06-05RW | -- | G3/8" X19 | 8 | 05 | 27.5 | 13.5 | 22 |
| 12611A-06-06RW | -- | G3/8" X19 | 10 | 06 | 27 | 13.5 | 22 |
| 12611A-06-08RW | 12612A-06-08RW | G3/8" X19 | 12 | 08 | 28 | 13.5 | 22 |
| 12611A-08-06RW | -- | R1/2" X14 | 10 | 06 | 31.5 | 16 | 27 |
| 12611A-08-08RW | 12612A-08-08RW | R1/2" X14 | 12 | 08 | 32.5 | 16 | 27 |
| 12611A-08-10RW | 12612A-08-10RW | R1/2" X14 | 16 | 10 | 31.5 | 16 | 27 |
| 12611A-12-08RW | 12612A-12-08RW | G3/4" X14 | 12 | 08 | 36 | 18.5 | 32 |
| 12611A-12-10RW | 12612A-12-10RW | G3/4" X14 | 16 | 10 | 36.5 | 18.5 | 32 |
| 12611A-12-12RW | 12612A-12-12RW | G3/4" X14 | 20 | 12 | 35.5 | 18.5 | 32 |
| 12611A-12-16RW | 12612A-12-16RW | G3/4" X14 | 25 | 16 | 38.7 | 18.5 | 32 |
| 12611A-16-12RW | 12612A-16-12RW | R1" X11 | 20 | 12 | 39.5 | 20.5 | 41 |
| 12611A-16-16RW | 12612A-16-16RW | R1" X11 | 25 | 16 | 42.7 | 20.5 | 41 |
| 12611A-20-16RW | 12612A-20-16RW | R1.1/4" X11 | 25 | 16 | 44.7 | 20.5 | 50 |
| 12611A-20-20RW | 12612A-20-20RW | R1.1/4" X11 | 32 | 20 | 44.7 | 20.5 | 50 |
| 12611A-24-24RW | 12612A-24-24RW | R1.1/2" X11 | 40 | 24 | 48 | 23 | 55 |
| 12611A-32-24RW | 12612A-32-24RW | R2" X11 | 40 | 24 | 52.5 | 25.5 | 70 |
| 12611A-32-32RW | 12612A-32-32RW | R2" X11 | 50 | 32 | 56 | 25.5 | 70 |
Selection note: BSPP MALE THREAD DUAL-PURPOSE FITTING WITH 60° INTERNAL CONE SEAT OR HEXAGON FACE WASHER SEAL. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
