manufactured from precision-forged carbon steel as a single piece with a zinc-plated finish for rust resistance. this fitting features bspp female parallel threads and an internal 60° metal spherical self-centering seal, which locks securely through tight contact between the spherical seat and the corresponding external cone without the need for sealing rings. available in straight, 45°, and 90° configurations. compatible with standard and heavy-duty crimp ferrules for wire-braided and wire-spiral high-pressure hoses, it delivers high crimp bite strength, excellent pull-out resistance, and superior continuous pressure impulse performance, ensuring leak-free operation under vibration conditions.

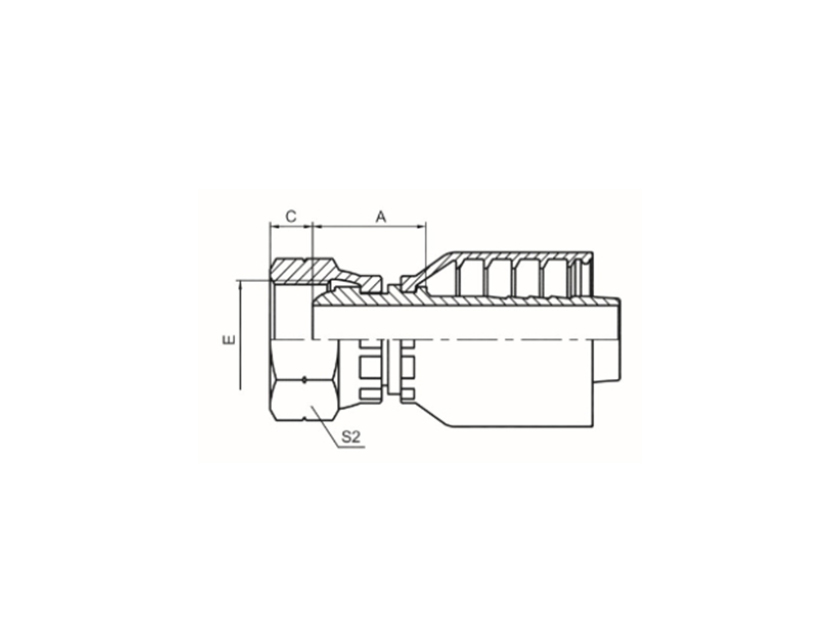

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | |
| 22111-02-04RW | -- | R1/8" X28 | 6 | 04 | 21 | 2 | 14 |
| 22111-04-04RW | -- | R1/4" X19 | 6 | 04 | 21 | 4 | 19 |
| 22111-04-05RW | -- | R1/4" X19 | 8 | 05 | 22 | 5 | 19 |
| 22111-06-06RW | -- | G3/8" X19 | 10 | 06 | 22 | 5 | 22 |
| 22111-06-08RW | 22112-06-08RW | G3/8" X19 | 12 | 08 | 23 | 5 | 22 |
| 22111-06-04TRW | -- | R1/2" X14 | 6 | 04 | 21 | 6 | 27 |
| 22111-08-06TRW | -- | R1/2" X14 | 10 | 06 | 20.5 | 6 | 27 |
| 22111-08-08RW | 22112-08-08RW | R1/2" X14 | 12 | 08 | 25 | 6 | 27 |
| 22111-08-10RW | 22112-08-10RW | R1/2" X14 | 16 | 10 | 25.5 | 6 | 27 |
| 22111-10-10RW | 22112-10-10RW | G5/8" X14 | 16 | 10 | 26 | 8 | 30 |
| 22111-10-12RW | 22112-10-12RW | G5/8" X14 | 20 | 12 | 25.5 | 8 | 30 |
| 22111-12-08TRW | 22112-12-08TRW | G3/4" X14 | 12 | 08 | 23 | 9.5 | 32 |
| 22111-12-10TRW | 22112-12-10TRW | G3/4" X14 | 16 | 10 | 23.5 | 9.5 | 32 |
| 22111-12-12RW | 22112-12-12RW | G3/4" X14 | 20 | 12 | 26.5 | 9.5 | 32 |
| 22111-16-12TRW | 22112-16-12TRW | R1" X11 | 20 | 12 | 22.5 | 11 | 41 |
| 22111-16-16RW | 22112-16-16RW | R1" X11 | 25 | 16 | 30.2 | 11 | 41 |
| 22111-20-16TRW | 22112-20-16TRW | R1.1/4" X11 | 25 | 16 | 28.7 | 11 | 50 |
| 22111-20-20RW | 22112-20-20RW | R1.1/4" X11 | 32 | 20 | 30.7 | 10 | 50 |
| 22111-24-24RW | 22112-24-24RW | R1.1/2" X11 | 40 | 24 | 39 | 11.5 | 55 |
| 22111-32-24RW | 22112-32-24RW | R2" X11 | 40 | 24 | 43.5 | 15 | 70 |
| 22111-32-32RW | 22112-32-32RW | R2" X11 | 50 | 32 | 43.5 | 15 | 70 |
Selection note: BSPP FEMALE SPHERICAL SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
