MANUFACTURED FROM PRECISION-FORGED CARBON STEEL AS A SINGLE PIECE WITH A ZINC-PLATED FINISH FOR RUST RESISTANCE. THE 55° BSPT MALE THREAD FEATURES INTEGRAL TAPERED THREADS, ACHIEVING SELF-SEALING THROUGH THE TIGHT ENGAGEMENT OF THE THREAD PROFILE DURING TIGHTENING WITHOUT THE NEED FOR BUILT-IN SEALING RINGS. AVAILABLE IN STRAIGHT, 45°, AND 90° ELBOW CONFIGURATIONS. COMPATIBLE WITH CRIMP FERRULES FOR WIRE-BRAIDED AND WIRE-SPIRAL HYDRAULIC HOSES, ENSURING A SECURE CRIMP WITH EXCELLENT PULL-OUT RESISTANCE.

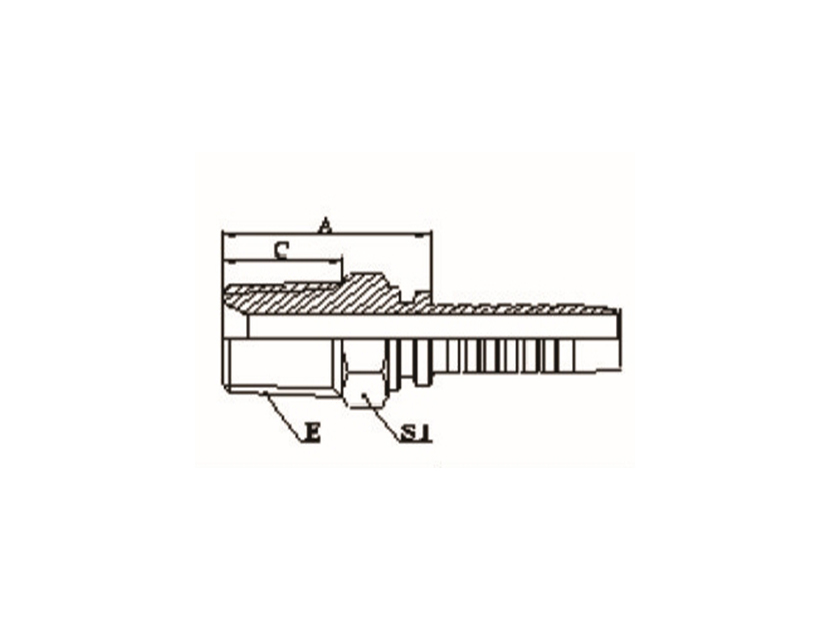

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
|---|---|---|---|---|---|---|
| DN | DASH | A | C | S1 | ||
| 13011-02-03SP | R1/8" X28 | 5 | 03 | 22 | 10 | 12 |
| 13011-02-04SP | R1/8" X28 | 6 | 04 | 22.5 | 10 | 12 |
| 13011-04-04SP | R1/4" X19 | 6 | 04 | 27 | 14.5 | 14 |
| 13011-04-05SP | R1/4" X19 | 8 | 05 | 25 | 15.4 | 14 |
| 13011-04-06SP | R1/4" X19 | 10 | 06 | 27 | 14.5 | 17 |
| 13011-06-04SP | R1/4" X19 | 6 | 04 | 27.5 | 15 | 17 |
| 13011-06-05SP | R3/8" X19 | 8 | 05 | 26.5 | 15 | 17 |
| 13011-06-06SP | R3/8" X19 | 10 | 06 | 27.5 | 15 | 17 |
| 13011-06-08SP | R3/8" X19 | 12 | 08 | 30 | 15 | 19 |
| 13011-08-06SP | R1/2" X14 | 10 | 06 | 34.5 | 20 | 22 |
| 13011-08-08SP | R1/2" X14 | 12 | 08 | 35 | 20 | 22 |
| 13011-08-10SP | R1/2" X14 | 10 | 10 | 38 | 20 | 22 |
| 13011-08-12SP | R1/2" X14 | 20 | 12 | 38 | 20 | 27 |
| 13011-12-08SP | R3/4" X14 | 12 | 08 | 37 | 20 | 27 |
| 13011-12-10SP | R3/4" X14 | 16 | 10 | 38 | 20 | 27 |
| 13011-12-12SP | R3/4" X14 | 20 | 12 | 38.5 | 20 | 27 |
| 13011-12-16SP | R3/4" X14 | 25 | 16 | 39.5 | 20 | 32 |
| 13011-16-12SP | R1" X11 | 20 | 12 | 44 | 25.5 | 36 |
| 13011-16-16SP | R1" X11 | 25 | 16 | 45 | 25.5 | 36 |
| 13011-20-20SP | R1.1/4" X11 | 32 | 20 | 49.5 | 26.5 | 46 |
| 13011-24-24SP | R1.1/2" X11 | 40 | 24 | 52.5 | 26.5 | 50 |
| 13011-32-24SP | R2" X11 | 40 | 24 | 57 | 30 | 65 |
| 13011-32-32SP | R2" X11 | 50 | 32 | 59 | 30 | 65 |
Selection note: BSPT MALE THREAD. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
