manufactured from precision-forged carbon steel with a hot-dip galvanized finish for rust resistance. this 45° integrated elbow features a bspp female parallel thread and a 60° flare metal-to-metal seal at the front, achieving sealing through precise cone-to-cone contact without the need for sealing rings. compatible with standard/heavy-duty crimp ferrules for wire-braided and multi-spiral wire hydraulic hoses, it delivers high crimp bite strength, excellent pull-out resistance, and superior hydraulic impulse performance, ensuring leak-free operation under slight vibrations.

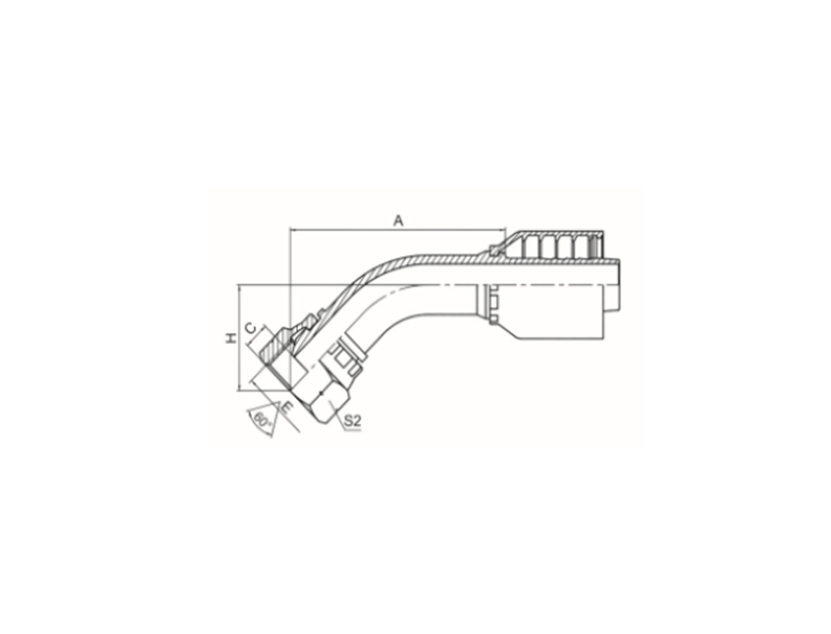

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 22611-04-04RW | -- | G1/4" X19 | 6 | 04 | 43.8 | 5.5 | 20.2 | 19 |
| 22611-04-05RW | -- | G1/4" X19 | 8 | 05 | 45.9 | 5.5 | 21.1 | 19 |
| 22611-04-06RW | -- | G1/4" X19 | 10 | 06 | 47 | 5.5 | 21.8 | 19 |
| 22611-06-04TRW | -- | G3/8" X19 | 6 | 04 | 43.2 | 6.3 | 19.6 | 22 |
| 22611-06-05RW | -- | G3/8" X19 | 8 | 05 | 45.3 | 6.3 | 20.5 | 22 |
| 22611-06-06RW | -- | G3/8" X19 | 10 | 06 | 47.8 | 6.3 | 22.6 | 22 |
| 22611-06-08RW | -- | G3/8" X19 | 12 | 08 | 61.2 | 6.3 | 24.8 | 22 |
| 22611-08-06TRW | -- | G1/2" X14 | 10 | 06 | 47.7 | 7.5 | 22.5 | 27 |
| 22611-08-08RW | 22612-08-08RW | G1/2" X14 | 12 | 08 | 62.5 | 7.5 | 26.1 | 27 |
| 22611-10-08TRW | 22612-10-08TRW | G5/8" X14 | 12 | 08 | 60.8 | 9.5 | 24.4 | 30 |
| 22611-10-10RW | 22612-10-10RW | G5/8" X14 | 10 | 10 | 73.1 | 9.5 | 27.8 | 30 |
| 22611-12-08TRW | 22612-12-08TRW | G3/4" X14 | 12 | 08 | 61.2 | 10.9 | 24.8 | 32 |
| 22611-12-10TRW | 22612-12-10TRW | G3/4" X14 | 16 | 10 | 71.4 | 10.9 | 26.1 | 32 |
| 22611-12-12RW | 22612-12-12RW | G3/4" X14 | 20 | 12 | 76.8 | 10.9 | 31 | 32 |
| 22611-16-12RW | 22612-16-12RW | G1" X11 | 20 | 12 | 75.5 | 11.7 | 29.7 | 41 |
| 22611-16-16RW | 22612-16-16RW | G1" X11 | 25 | 16 | 90.6 | 11.7 | 34.2 | 41 |
| 22611-20-16RW | 22612-20-16RW | G1.1/4" X11 | 25 | 16 | 88.6 | 11 | 32.2 | 50 |
| 22611-20-20RW | 22612-20-20RW | G1.1/4" X11 | 32 | 20 | 103.1 | 11 | 41.2 | 50 |
| 22611-24-20RW | 22612-24-20RW | G1.1/2" X11 | 32 | 20 | 99.2 | 13 | 37.3 | 55 |
| 22611-24-24RW | 22612-24-24RW | G1.1/2" X11 | 40 | 24 | 118.5 | 13 | 45.8 | 55 |
| 22611-32-24RW | 22612-32-24RW | G2" X11 | 40 | 24 | 116.4 | 16 | 43.7 | 70 |
| 22611-32-32RW | 22612-32-32RW | G2" X11 | 50 | 32 | 142.8 | 16 | 53 | 70 |
Selection note: 45° BSPP FEMALE THREAD 60° FLARE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
