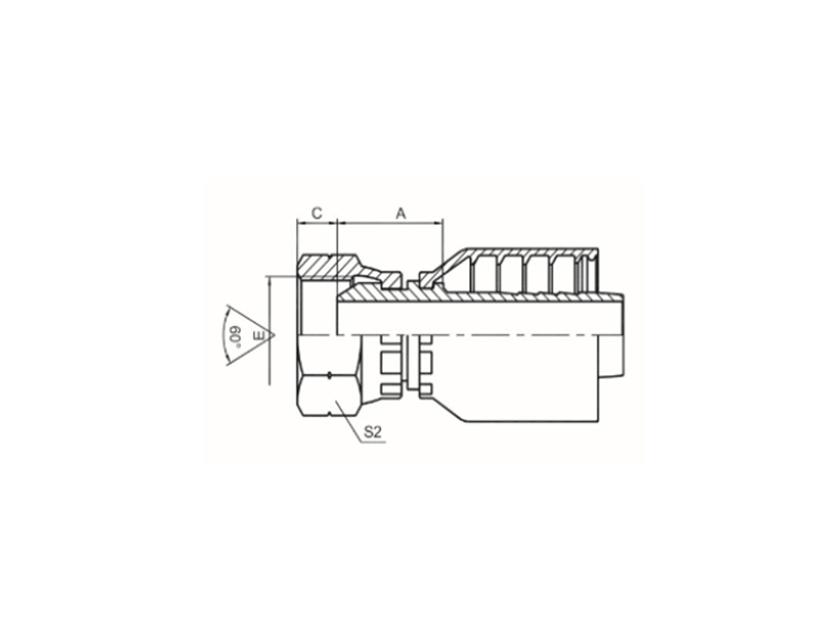

MANUFACTURED FROM PRECISION-FORGED CARBON STEEL AS A SINGLE PIECE WITH A ZINC-PLATED FINISH FOR RUST AND CORROSION RESISTANCE. THIS FITTING FEATURES BSPP FEMALE PARALLEL THREADS AND AN INTERNAL 60° METAL CONE METAL-TO-METAL SEAL, WHICH LOCKS SECURELY BY MATING WITH THE CORRESPONDING EXTERNAL FLARE SEAT WITHOUT THE NEED FOR O-RINGS. AVAILABLE IN STRAIGHT, 45°, AND 90° ELBOW CONFIGURATIONS. COMPATIBLE WITH STANDARD/HEAVY-DUTY CRIMP FERRULES FOR WIRE-BRAIDED AND WIRE-SPIRAL HYDRAULIC HOSES, DELIVERING A SECURE CRIMP BITE, EXCELLENT PULL-OUT RESISTANCE, AND SUPERIOR PRESSURE IMPULSE PERFORMANCE.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 22611-04-04RW | -- | G1/4" X19 | 6 | 04 | 19.5 | 5.5 | 19 |
| 22611-04-05RW | -- | G1/4" X19 | 8 | 05 | 19.5 | 5.5 | 19 |
| 22611-04-06RW | -- | G1/4" X19 | 10 | 06 | 19.5 | 5.5 | 19 |
| 22611-06-04TRW | -- | G3/8" X19 | 6 | 04 | 18.2 | 6.3 | 22 |
| 22611-06-05RW | -- | G3/8" X19 | 8 | 05 | 18.2 | 6.3 | 22 |
| 22611-06-06RW | -- | G3/8" X19 | 10 | 06 | 20.7 | 6.3 | 22 |
| 22611-06-08RW | -- | G3/8" X19 | 12 | 08 | 21.7 | 6.3 | 22 |
| 22611-08-06TRW | -- | G1/2" X14 | 10 | 06 | 19.5 | 7.5 | 27 |
| 22611-08-08RW | 22612-08-08RW | G1/2" X14 | 12 | 08 | 23.5 | 7.5 | 27 |
| 22611-10-08TRW | 22612-10-08TRW | G5/8" X14 | 12 | 08 | 21 | 9.5 | 30 |
| 22611-10-10RW | 22612-10-10RW | G5/8" X14 | 10 | 10 | 24.5 | 9.5 | 30 |
| 22611-12-08TRW | 22612-12-08TRW | G3/4" X14 | 12 | 08 | 21.6 | 10.9 | 32 |
| 22611-12-10TRW | 22612-12-10TRW | G3/4" X14 | 16 | 10 | 22.1 | 10.9 | 32 |
| 22611-12-12RW | 22612-12-12RW | G3/4" X14 | 20 | 12 | 24.6 | 10.9 | 32 |
| 22611-16-12RW | 22612-16-12RW | G1" X11 | 20 | 12 | 22.3 | 11.7 | 41 |
| 22611-16-16RW | 22612-16-16RW | G1" X11 | 25 | 16 | 29 | 11.7 | 41 |
| 22611-20-16RW | 22612-20-16RW | G1.1/4" X11 | 25 | 16 | 26.8 | 11 | 50 |
| 22611-20-20RW | 22612-20-20RW | G1.1/4" X11 | 32 | 20 | 29.7 | 11 | 50 |
| 22611-24-20RW | 22612-24-20RW | G1.1/2" X11 | 32 | 20 | 28.8 | 13 | 55 |
| 22611-24-24RW | 22612-24-24RW | G1.1/2" X11 | 40 | 24 | 34.5 | 13 | 55 |
| 22611-32-24RW | 22612-32-24RW | G2" X11 | 40 | 24 | 32.5 | 16 | 70 |
| 22611-32-32RW | 22612-32-32RW | G2" X11 | 50 | 32 | 38 | 16 | 70 |
Selection note: BSPP FEMALE 60° CONE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
