MANUFACTURED FROM PRECISION-FORGED CARBON STEEL WITH ZINC PLATING FOR RUST RESISTANCE, FEATURING BSPP PARALLEL FEMALE THREADS. THE 45° ELBOW STRUCTURE IS EQUIPPED WITH A 60° METAL SPHERICAL SELF-CENTERING SEAL, WHICH AUTOMATICALLY COMPENSATES FOR MINOR ANGULAR MISALIGNMENT TO ENSURE A TIGHT FIT WITHOUT THE NEED FOR O-RINGS. COMPATIBLE WITH STANDARD/HEAVY-DUTY CRIMP FERRULES FOR BOTH WIRE-BRAIDED AND WIRE-SPIRAL HYDRAULIC HOSES, IT DELIVERS STRONG CRIMP BITE, EXCELLENT PULL-OUT RESISTANCE, AND SUPERIOR PRESSURE IMPULSE PERFORMANCE, ENSURING LEAK-FREE OPERATION UNDER VIBRATION CONDITIONS.

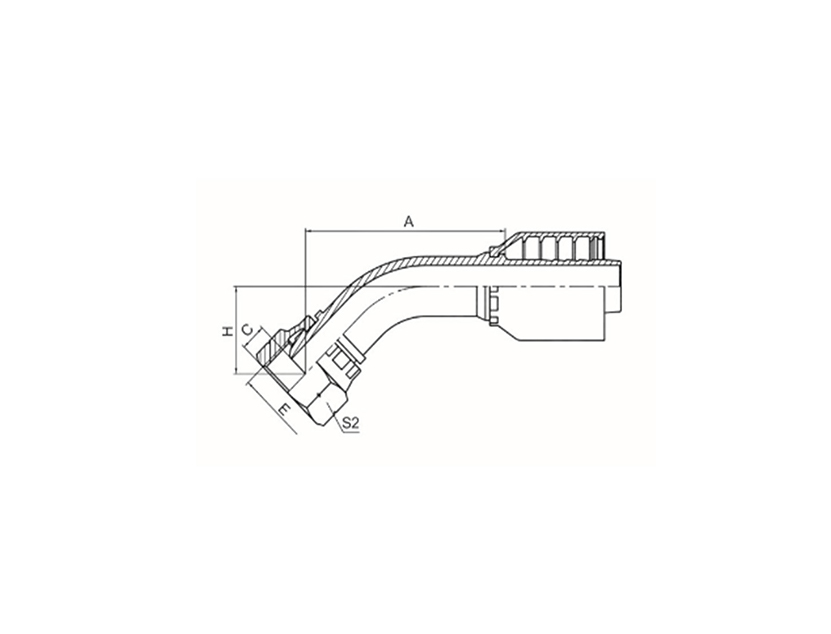

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 13011-02-04SPRW | -- | R1/8" X28 | 6 | 04 | 22 | 10 | 12 |
| 13011-04-04SPRW | -- | R1/4" X28 | 6 | 04 | 26.5 | 14.5 | 14 |
| 13011-04-05SPRW | -- | R1/4" X28 | 8 | 05 | 27.4 | 15.4 | 14 |
| 13011-04-06SPRW | -- | R1/4" X28 | 10 | 06 | 26 | 14.5 | 17 |
| 13011-06-04SPRW | -- | R3/8" X19 | 6 | 04 | 27 | 15 | 17 |
| 13011-06-05SPRW | -- | R3/8" X19 | 8 | 05 | 27 | 15 | 17 |
| 13011-06-06SPRW | -- | R3/8" X19 | 10 | 06 | 26.5 | 15 | 17 |
| 13011-06-08SPRW | 13012-06-08SPRW | R3/8" X19 | 12 | 08 | 27.5 | 15 | 19 |
| 13011-08-06SPRW | -- | R1/2" X14 | 10 | 06 | 33.5 | 20 | 22 |
| 13011-08-08SPRW | 13012-08-08SPRW | R1/2" X14 | 12 | 08 | 34.5 | 20 | 22 |
| 13011-08-10SPRW | 13012-08-10SPRW | R1/2" X14 | 16 | 10 | 33.5 | 20 | 22 |
| 13011-08-12SPRW | 13012-08-12SPRW | R1/2" X14 | 20 | 12 | 36 | 20 | 27 |
| 13011-12-08SPRW | 13012-12-08SPRW | R3/4" X14 | 12 | 08 | 36.5 | 20 | 27 |
| 13011-12-10SPRW | 13012-12-10SPRW | R3/4" X14 | 16 | 10 | 37 | 20 | 27 |
| 13011-12-12SPRW | 13012-12-12SPRW | R3/4" X14 | 20 | 12 | 36 | 20 | 27 |
| 13011-12-16SPRW | 13012-12-16SPRW | R3/4" X14 | 25 | 16 | 40.2 | 20 | 32 |
| 13011-16-12SPRW | 13012-16-12SPRW | R1" X11 | 20 | 12 | 42.5 | 25.5 | 36 |
| 13011-16-16SPRW | 13012-16-16SPRW | R1" X11 | 25 | 16 | 45.7 | 25.5 | 36 |
| 13011-20-20SPRW | 13012-20-20SPRW | R1.1/4" X11 | 32 | 20 | 48.7 | 26.5 | 46 |
| 13011-24-24SPRW | 13012-24-24SPRW | R1.1/2" X11 | 40 | 24 | 51.5 | 26.5 | 50 |
| 13011-32-24SPRW | 13012-32-24SPRW | R2" X11 | 40 | 24 | 57 | 30 | 65 |
| 13011-32-32SPRW | 13012-32-32SPRW | R2" X11 | 50 | 32 | 60.5 | 30 | 65 |
Selection note: 45° BSPP FEMALE SPHERICAL SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
