Manufactured from precision-forged carbon steel as a single piece with zinc plating for rust resistance. This 90° elbow features a BSPP female thread and a 60° flare metal-to-metal seal at the end, which locks securely through cone-to-cone contact without the need for sealing rings. Compatible with standard crimp ferrules and regular wire-braided hoses, it delivers high crimp strength, excellent pull-out resistance, and superior hydraulic impulse performance, ensuring leak-free operation under slight vibrations.

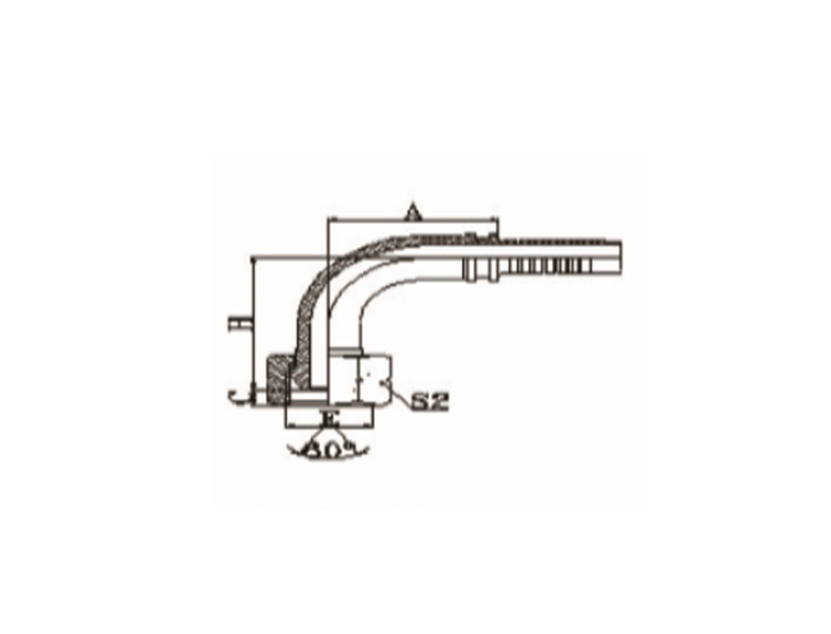

| PART NO. | TUBE OD | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | S2 | ||
| 22691-02-03 | G1/8" X28 | 5 | 03 | 26.5 | 5.5 | 31.5 | 14 |
| 22691-02-04 | G1/8" X28 | 6 | 04 | 27.5 | 5.5 | 35.5 | 14 |
| 22691-04-03 | G1/4" X19 | 5 | 03 | 26.5 | 5.5 | 33.5 | 19 |
| 22691-04-04 | G1/4" X19 | 6 | 04 | 27.5 | 5.5 | 37 | 19 |
| 22691-04-05 | G1/4" X19 | 8 | 05 | 31 | 5.5 | 41.5 | 19 |
| 22691-04-06 | G1/4" X19 | 10 | 06 | 30 | 5.5 | 36.5 | 19 |
| 22691-06-04 | G3/8" X19 | 6 | 04 | 27.5 | 6.3 | 39 | 22 |
| 22691-06-05 | G3/8" X19 | 8 | 05 | 31 | 6.3 | 43.5 | 22 |
| 22691-06-06 | G3/8" X19 | 10 | 06 | 33 | 6.3 | 44.5 | 22 |
| 22691-08-06T | G1/2" X14 | 10 | 06 | 35.3 | 7 | 43.3 | 27 |
| 22691-08-08 | G1/2" X14 | 12 | 08 | 42.5 | 7.5 | 53 | 27 |
| 22691-08-10 | G1/2" X14 | 16 | 10 | 56.5 | 7.5 | 55.5 | 27 |
| 22691-10-08 | G5/8" X14 | 12 | 08 | 42.5 | 9.5 | 53.5 | 30 |
| 22691-10-10 | G5/8" X14 | 16 | 10 | 48.5 | 9.5 | 58 | 30 |
| 22691-12-08T | G3/4" X14 | 12 | 08 | 41 | 10.9 | 52.1 | 32 |
| 22691-12-10 | G3/4" X14 | 16 | 10 | 48.5 | 10.9 | 58 | 32 |
| 22691-12-12 | G3/4" X14 | 20 | 12 | 50.5 | 10.9 | 66 | 32 |
| 22691-16-12T | G1" X11 | 20 | 12 | 65.5 | 11.7 | 68.3 | 41 |
| 22691-16-14 | G1" X11 | 22 | 14 | 71.2 | 11.7 | 69.3 | 41 |
| 22691-16-16 | G1" X11 | 25 | 16 | 66 | 11.7 | 78.5 | 41 |
| 22691-20-16T | G1.1/4" X11 | 25 | 16 | 78 | 11 | 69.5 | 50 |
| 22691-20-20W | G1.1/4" X11 | 32 | 20 | 91.5 | 11 | 84.3 | 50 |
| 22691-24-24W | G1.1/2" X11 | 40 | 24 | 109.4 | 13 | 103 | 55 |
| 22691-32-32W | G2" X11 | 50 | 32 | 131.8 | 16 | 123.3 | 70 |
Selection note: 90° BSPP FEMALE THREAD 60° FLARE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
