Manufactured from precision-forged carbon steel as a single piece with a zinc-plated finish for rust resistance. This 90° elbow features a BSPP female thread and a 60° flare metal-to-metal seal at the end, which locks securely through precise cone-to-cone contact, eliminating the need for any sealing rings. Compatible with standard crimp ferrules and regular wire-braided hoses, it delivers high crimp strength, excellent pull-out resistance, and superior hydraulic impulse performance, ensuring a leak-free operation even under slight vibrations.

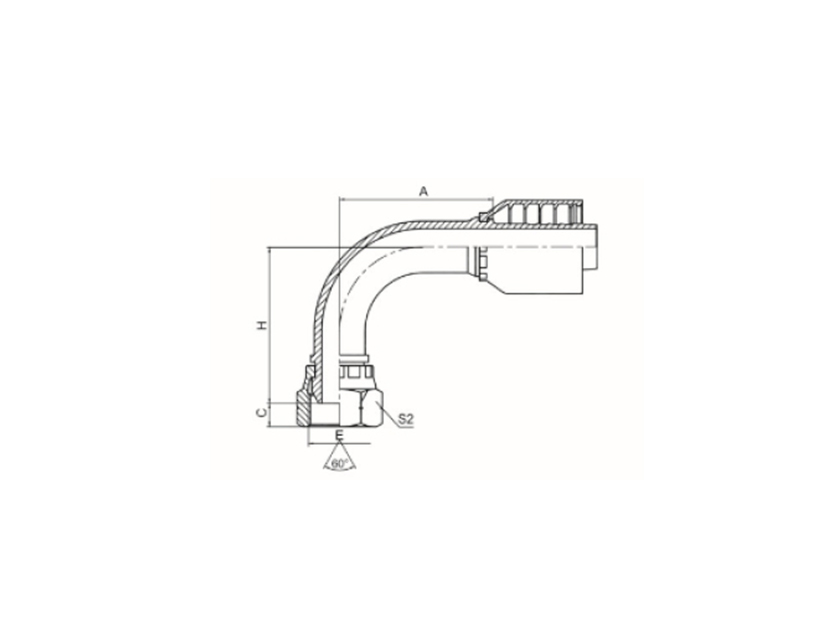

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 22691-04-04RW | -- | G1/4" X19 | 6 | 04 | 31.5 | 5.5 | 36.5 | 19 |
| 22691-04-05RW | -- | G1/4" X19 | 8 | 05 | 34.5 | 5.5 | 39.5 | 19 |
| 22691-04-06RW | -- | G1/4" X19 | 10 | 06 | 36.3 | 5.5 | 41.8 | 19 |
| 22691-06-04TRW | -- | G3/8" X19 | 6 | 04 | 31.5 | 6.3 | 35.7 | 22 |
| 22691-06-05TRW | -- | G3/8" X19 | 8 | 05 | 34.5 | 6.3 | 40.7 | 22 |
| 22691-06-06RW | -- | G3/8" X19 | 10 | 06 | 36.3 | 6.3 | 43 | 22 |
| 22691-06-08RW | -- | G3/8" X19 | 12 | 08 | 42.5 | 6.3 | 49.2 | 22 |
| 22691-08-06TRW | -- | G1/2" X14 | 10 | 06 | 36.3 | 7.5 | 42.8 | 27 |
| 22691-08-08RW | 22692-08-08RW | G1/2" X14 | 12 | 08 | 42.5 | 7.5 | 51 | 27 |
| 22691-10-08TRW | 22692-10-08TRW | G5/8" X14 | 12 | 08 | 42.5 | 9.5 | 48.5 | 30 |
| 22691-10-10RW | 22692-10-10RW | G5/8" X14 | 10 | 10 | 57 | 9.5 | 56 | 30 |
| 22691-12-08TRW | 22692-12-08TRW | G3/4" X14 | 12 | 08 | 42.5 | 10.9 | 49.1 | 32 |
| 22691-12-10TRW | 22692-12-10TRW | G3/4" X14 | 16 | 10 | 57 | 10.9 | 53.6 | 32 |
| 22691-12-12RW | 22692-12-12RW | G3/4" X14 | 20 | 12 | 63.2 | 10.9 | 63.1 | 32 |
| 22691-16-12TRW | 22692-16-12TRW | G1" X11 | 20 | 12 | 63.2 | 11.7 | 61.3 | 41 |
| 22691-16-16RW | 22692-16-16RW | G1" X11 | 25 | 16 | 78.9 | 11.7 | 73.8 | 41 |
| 22691-20-16TRW | 22692-20-16TRW | G1.1/4" X11 | 25 | 16 | 78.9 | 11 | 71.1 | 50 |
| 22691-20-20WRW | 22692-20-20WRW | G1.1/4" X11 | 32 | 20 | 92.7 | 11 | 89 | 50 |
| 22691-24-20TRW | 22692-24-20TRW | G1.1/2" X11 | 32 | 20 | 92.7 | 13 | 83.5 | 55 |
| 22691-24-24WRW | 22692-24-24WRW | G1.1/2" X11 | 40 | 24 | 111.4 | 13 | 103.5 | 55 |
| 22691-32-24TRW | 22692-32-24TRW | G2" X11 | 40 | 24 | 111.4 | 16 | 100.5 | 70 |
| 22691-32-32WRW | 22692-32-32WRW | G2" X11 | 50 | 32 | 138.6 | 16 | 123.8 | 70 |
Selection note: 90° BSPP FEMALE 60° CONE SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
