MANUFACTURED IN STRICT ACCORDANCE WITH THE ISO 8434-3 AND SAE J1453 INTERNATIONAL STANDARDS. THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR CORROSION PREVENTION. FEATURES AN AMERICAN UNF MALE EXTERNAL THREAD WITH AN ORFS FLAT FACE GROOVE AND BUILT-IN O-RING AT THE HEAD. IT FORMS A SOFT-HARD COMPOSITE SEAL BY MATING WITH THE FLAT FACE OF THE FEMALE INTERNAL THREAD, COMPENSATING FOR MINOR ASSEMBLY MISALIGNMENTS AND ENSURING LEAK-FREE PERFORMANCE UNDER HIGH-PRESSURE VIBRATIONS. COMPATIBLE WITH MULTI-SPECIFICATION CRIMPING SLEEVES TO MATCH STEEL WIRE BRAIDED AND SPIRAL HYDRAULIC HOSES, ENSURING STRONG CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, AND HIGH-FREQUENCY HIGH-PRESSURE PULSE RESISTANCE.

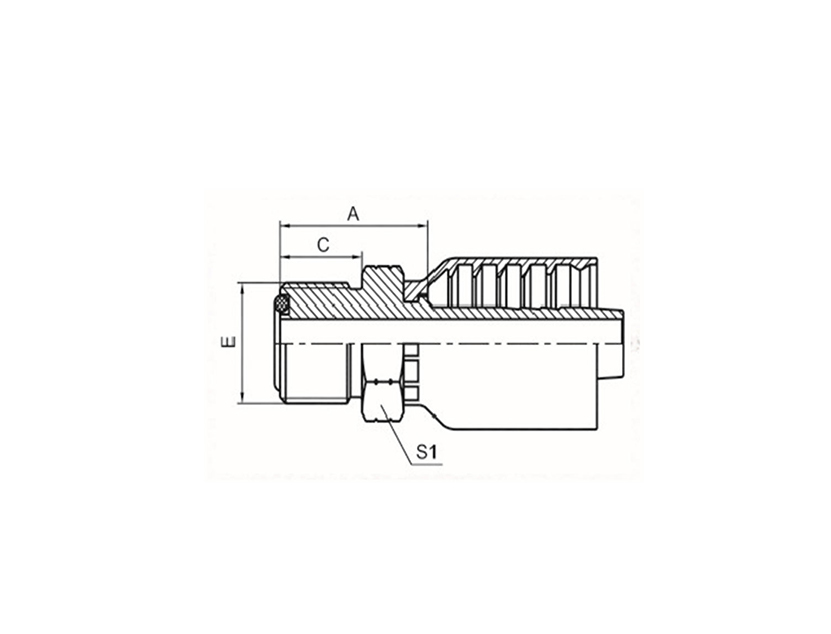

| PART NO. | THREAD E | HOSE BORE | O RING | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | ||
| 14211-04-04RW | -- | 9/16" X18 | 6 | 04 | OO11 | 21.8 | 9.8 | 17 |
| 14211-06-04RW | -- | 11/16" X16 | 6 | 04 | OO12 | 23.2 | 11.2 | 19 |
| 14211-06-06RW | -- | 11/16" X16 | 10 | 06 | OO12 | 22.7 | 11.2 | 19 |
| 14211-08-06RW | -- | 13/16" X16 | 10 | 06 | OO14 | 26.3 | 12.8 | 22 |
| 14211-08-08RW | 14212-08-08RW | 13/16" X16 | 12 | 08 | OO14 | 27.3 | 12.8 | 22 |
| 14211-08-10RW | 14212-08-10RW | 13/16" X16 | 16 | 10 | OO14 | 27.8 | 12.8 | 22 |
| 14211-10-08RW | 14212-10-08RW | 1" X14 | 12 | 08 | OO16 | 32 | 15.5 | 27 |
| 14211-10-10RW | 14212-10-10RW | 1" X14 | 16 | 10 | OO16 | 32.5 | 15.5 | 27 |
| 14211-12-08RW | 14212-12-08RW | 1.3/16" X12 | 12 | 08 | OO18 | 34.5 | 17 | 32 |
| 14211-12-10RW | 14212-12-10RW | 1.3/16" X12 | 16 | 10 | OO18 | 35 | 17 | 32 |
| 14211-12-12RW | 14212-12-12RW | 1.3/16" X12 | 20 | 12 | OO18 | 34 | 17 | 32 |
| 14211-16-12RW | 14212-16-12RW | 1.7/16" X12 | 20 | 12 | OO21 | 34.5 | 17.5 | 38 |
| 14211-16-16RW | 14212-16-16RW | 1.7/16" X12 | 25 | 16 | OO21 | 37.7 | 17.5 | 38 |
| 14211-20-20RW | 14212-20-20RW | 1.11/16" X12 | 32 | 20 | OO25 | 39.7 | 17.5 | 46 |
| 14211-24-24RW | 14212-24-24RW | 2" X12 | 40 | 24 | OO29 | 42.5 | 17.5 | 55 |
Selection note: AMERICAN ORFS MALE EXTERNAL THREAD FLAT FACE O-RING SEAL ISO 8434-3 SAE J1453. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
