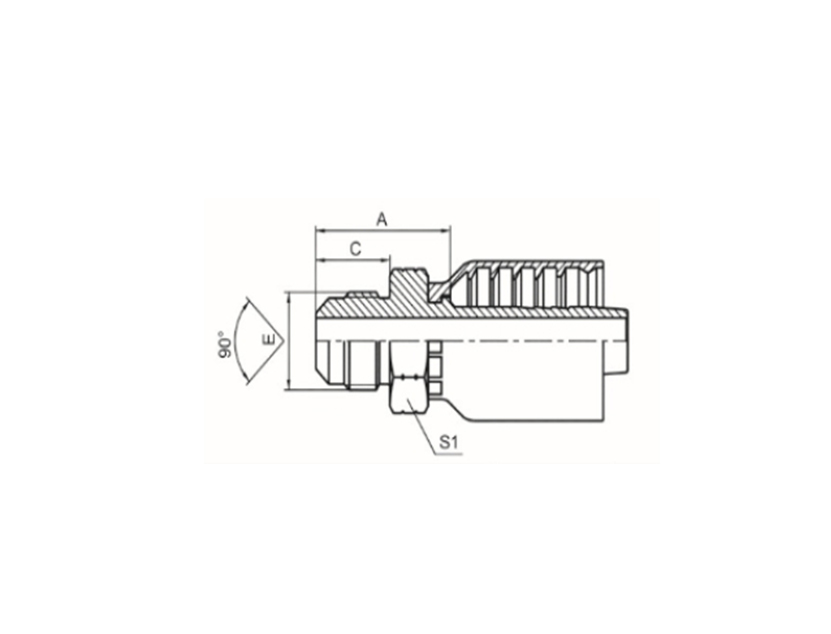

CONSTRUCTED FROM CARBON STEEL IN ONE-PIECE FORGING WITH ZINC-PLATED RUST PREVENTION. FEATURES AN AMERICAN SAE MALE EXTERNAL THREAD AND A 90° EXTERNAL CONE METAL-TO-METAL HARD SEAL AT THE END. IT RELIES ON CONE-TO-CONE LOCKING FOR SEALING, ELIMINATING THE NEED FOR O-RINGS. EQUIPPED WITH A STANDARD CRIMPING SLEEVE COMPATIBLE WITH HYDRAULIC BRAIDED HOSES, ENSURING TIGHT CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, HYDRAULIC PULSE RESISTANCE, AND EFFECTIVE PREVENTION OF LEAKAGE UNDER VIBRATION CONDITIONS.
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 17811-04-04RW | -- | 7/16" X20 | 6 | 04 | 24.7 | 12.7 | 12 |
| 17811-05-05RW | -- | 1/2" X20 | 8 | 05 | 26.2 | 14.2 | 14 |
| 17811-06-04RW | -- | 5/8" X18 | 6 | 04 | 27.7 | 15.7 | 17 |
| 17811-06-05RW | -- | 5/8" X18 | 8 | 05 | 27.7 | 15.7 | 17 |
| 17811-06-06RW | 17812-08-08RW | 5/8" X18 | 10 | 06 | 27.2 | 15.7 | 17 |
| 17811-08-08RW | 17812-10-08RW | 3/4" X16 | 12 | 08 | 33.5 | 19 | 22 |
| 17811-10-08RW | 17812-10-10RW | 7/8" X14 | 12 | 08 | 36.9 | 22.4 | 24 |
| 17811-10-10RW | 17812-12-12RW | 7/8" X14 | 16 | 10 | 37.4 | 22.4 | 24 |
| 17811-12-12RW | 17812-16-16RW | 1.1/16" X14 | 20 | 12 | 41.4 | 25.4 | 30 |
Selection note: AMERICAN SAE MALE EXTERNAL THREAD 90° EXTERNAL CONE SEAT SAE J513. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
