MANUFACTURED IN STRICT ACCORDANCE WITH THE ISO 11926 AND SAE J1926 GENERAL STANDARDS. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES AN AMERICAN UNF MALE EXTERNAL THREAD WITH AN O-RING INSTALLATION GROOVE DESIGNED AT THE THREAD ROOT. IT RELIES ON END-FACE COMPRESSION OF THE O-RING FOR SEALING, WHILE THE THREADS ARE STRICTLY RESPONSIBLE FOR LOCKING AND POSITIONING. THIS ENSURES THAT THE SEALING PERFORMANCE IS UNAFFECTED BY THREAD CLEARANCE. COMPATIBLE WITH STANDARD AND HEAVY SERIES CRIMPING SLEEVES TO MATCH STEEL WIRE BRAIDED AND MULTI-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES. IT ENSURES HIGH CRIMPING ENGAGEMENT STRENGTH, PULL-OUT RESISTANCE, AND HIGH-FREQUENCY PRESSURE PULSE RESISTANCE, EFFECTIVELY PREVENTING OIL SEEPAGE UNDER EQUIPMENT VIBRATION CONDITIONS.

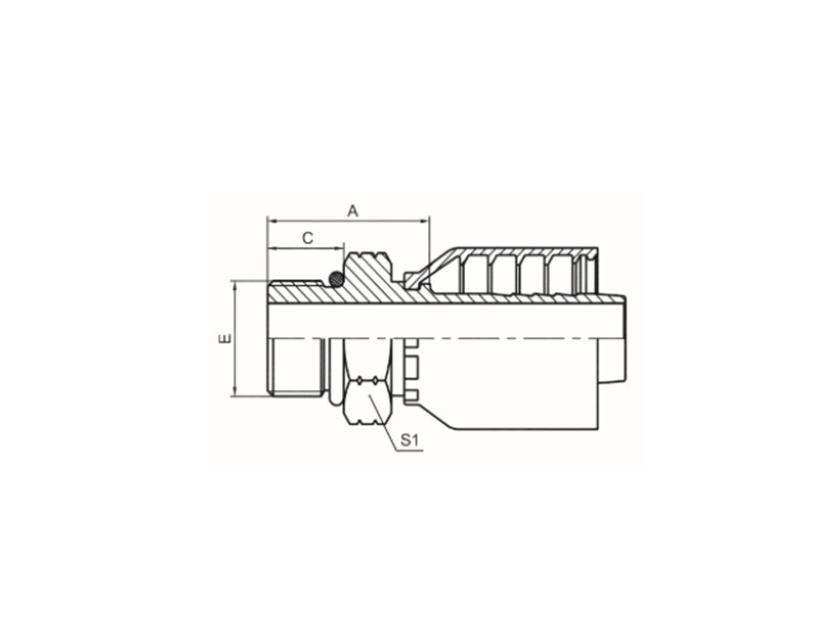

PART NO. | THREAD E | HOSE BORE | O RING | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | ||
| 16011-04-04RW | -- | 7/16" X20 | 6 | 04 | O904 | 21.1 | 9.1 | 14 |
| 16011-05-04RW | -- | 1/2" X20 | 6 | 04 | O905 | 21.1 | 9.1 | 17 |
| 16011-06-05RW | -- | 9/16" X18 | 8 | 05 | O906 | 21.9 | 9.9 | 17 |
| 16011-06-06RW | -- | 9/16" X18 | 10 | 06 | O906 | 21.4 | 9.9 | 17 |
| 16011-08-06RW | -- | 3/4" X16 | 10 | 06 | O908 | 24.6 | 11.1 | 22 |
| 16011-08-08RW | 16012-08-08RW | 3/4" X16 | 12 | 08 | O908 | 25.6 | 11.1 | 22 |
| 16011-10-08RW | 16012-10-08RW | 7/8" X14 | 12 | 08 | O910 | 29.2 | 12.7 | 27 |
| 16011-10-10RW | 16012-10-10RW | 7/8" X14 | 16 | 10 | O910 | 29.7 | 12.7 | 27 |
| 16011-12-10RW | 16012-12-10RW | 1.1/16" X12 | 16 | 10 | O912 | 33.1 | 15.1 | 32 |
| 16011-12-12RW | 16012-12-12RW | 1.1/16" X12 | 20 | 12 | O912 | 32.1 | 15.1 | 32 |
| 16011-16-16RW | 16012-16-16RW | 1.5/16" X12 | 25 | 16 | O916 | 35.3 | 15.1 | 38 |
Selection note: AMERICAN SAE MALE EXTERNAL THREAD WITH O-RING ISO 11926 SAE J1926. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
