CONSTRUCTED FROM THICKENED FORGED CARBON STEEL IN ONE PIECE WITH ZINC-PLATED RUST PREVENTION. FEATURES A 90° ELBOW AND UNF AMERICAN FEMALE INTERNAL THREAD WITH AN ORFS END-FACE FLAT SEAL STRUCTURE. IT RELIES ON END-FACE O-RING COMPRESSION FOR SEALING, OFFERING HIGH FAULT TOLERANCE AGAINST EQUIPMENT VIBRATIONS AND MINOR ASSEMBLY DEVIATIONS TO PREVENT OIL LEAKAGE. EQUIPPED WITH A HEAVY-DUTY THICKENED SLEEVE COMPATIBLE WITH MULTI-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING SECURE CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, HIGH-FREQUENCY HIGH-PRESSURE PULSE RESISTANCE, AND EFFECTIVE PREVENTION OF FITTING LOOSENING AND LEAKAGE DURING LONG-TERM USE.

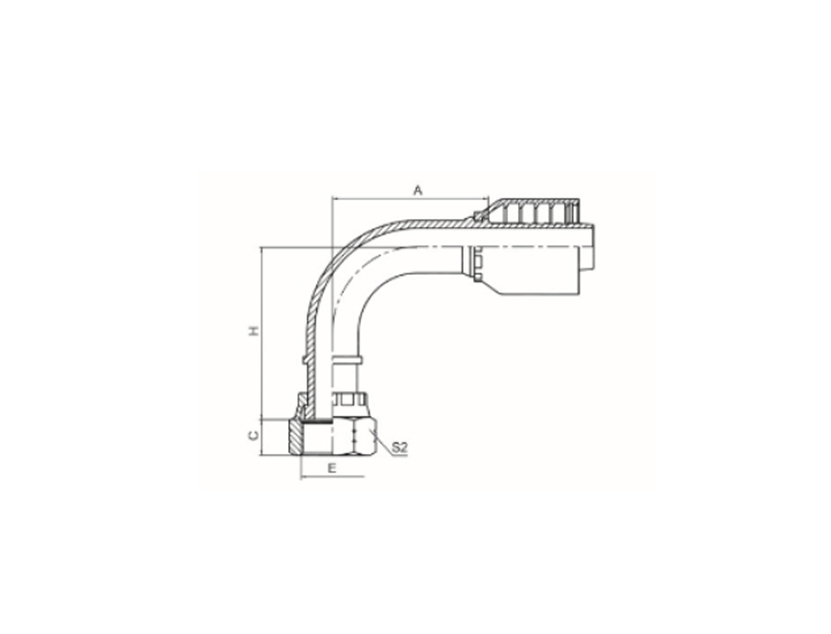

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | |
| 24211-04-04RW | -- | 9/16" X18 | 6 | 04 | 24 | 8.5 | 19 |
| 24211-04-05RW | -- | 9/16" X18 | 8 | 05 | 24 | 8.5 | 19 |
| 24211-04-06RW | -- | 9/16" X18 | 10 | 06 | 24 | 8.5 | 19 |
| 24211-06-04TRW | -- | 11/16" X16 | 6 | 04 | 26 | 10 | 22 |
| 24211-06-05TRW | -- | 11/16" X16 | 8 | 05 | 26 | 10 | 22 |
| 24211-06-06RW | -- | 11/16" X16 | 10 | 06 | 27 | 10 | 22 |
| 24211-06-08RW | 24212-06-08RW | 11/16" X16 | 12 | 08 | 28 | 10 | 22 |
| 24211-08-05TRW | -- | 13/16" X16 | 8 | 05 | 27.5 | 11 | 27 |
| 24211-08-06TRW | -- | 13/16" X16 | 10 | 06 | 27 | 11 | 27 |
| 24211-08-08RW | 24212-08-08RW | 13/16" X16 | 12 | 08 | 30 | 11 | 27 |
| 24211-08-10RW | 24212-08-10RW | 13/16" X16 | 16 | 10 | 30.5 | 11 | 27 |
| 24211-10-08TRW | 24212-10-08TRW | 1" X14 | 12 | 08 | 32 | 13.5 | 30 |
| 24211-10-10RW | 24212-10-10RW | 1" X14 | 16 | 10 | 34.5 | 13.5 | 30 |
| 24211-10-12RW | 24212-10-12RW | 1" X14 | 20 | 12 | 34 | 13.5 | 30 |
| 24211-12-08TRW | 24212-12-08TRW | 1.3/16" X12 | 12 | 08 | 33.5 | 15 | 36 |
| 24211-12-10TRW | 24212-12-10TRW | 1.3/16" X12 | 16 | 10 | 34 | 15 | 36 |
| 24211-12-12TRW | 24212-12-12TRW | 1.3/16" X12 | 20 | 12 | 33 | 15 | 36 |
| 24211-12-16RW | 24212-12-16RW | 1.3/16" X12 | 25 | 16 | 38.7 | 15 | 36 |
| 24211-16-12TRW | 24212-16-12TRW | 1.7/16" X12 | 20 | 12 | 34 | 14.8 | 41 |
| 24211-16-16TRW | 24212-16-16TRW | 1.7/16" X12 | 16 | 10 | 35 | 14.8 | 41 |
| 24211-16-20RW | 24212-16-20RW | 1.7/16" X12 | 32 | 20 | 41.2 | 14.8 | 41 |
| 24211-20-16TRW | 24212-20-16TRW | 1.11/16" X12 | 25 | 16 | 38.2 | 15 | 50 |
| 24211-20-20WRW | 24212-20-20WRW | 1.11/16" X12 | 32 | 20 | 45.2 | 15 | 50 |
| 24211-20-24WRW | 24212-20-24WRW | 1.11/16" X12 | 40 | 24 | 46 | 15 | 50 |
| 24211-24-20TRW | 24212-24-20TRW | 2" X12 | 32 | 20 | 38.2 | 14.8 | 60 |
| 24211-24-24TRW | 24212-24-24TRW | 2" X12 | 40 | 24 | 39 | 14.8 | 60 |
Selection note: 90° AMERICAN ORFS FEMALE INTERNAL THREAD FLAT FACE ISO 12151-1 SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
