MANUFACTURED IN STRICT ACCORDANCE WITH THE ISO 12151-1 AND SAE J516 INTERNATIONAL STANDARDS. THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR CORROSION PREVENTION. FEATURES UNF AMERICAN FEMALE INTERNAL THREAD AND ORFS END-FACE FLAT SEAL, RELYING ON END-FACE O-RING COMPRESSION FOR SEALING. THIS DESIGN PROVIDES SELF-COMPENSATION FOR INSTALLATION GAPS, ENSURING OUTSTANDING HIGH-PRESSURE VIBRATION RESISTANCE AND LEAK-FREE PERFORMANCE. EQUIPPED WITH A THICKENED SLEEVE COMPATIBLE WITH MULTI-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING DEEP CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, CONTINUOUS HIGH-FREQUENCY PULSE RESISTANCE, AND EFFECTIVE PREVENTION OF OIL SEEPAGE UNDER LONG-TERM HEAVY-DUTY CONDITIONS.

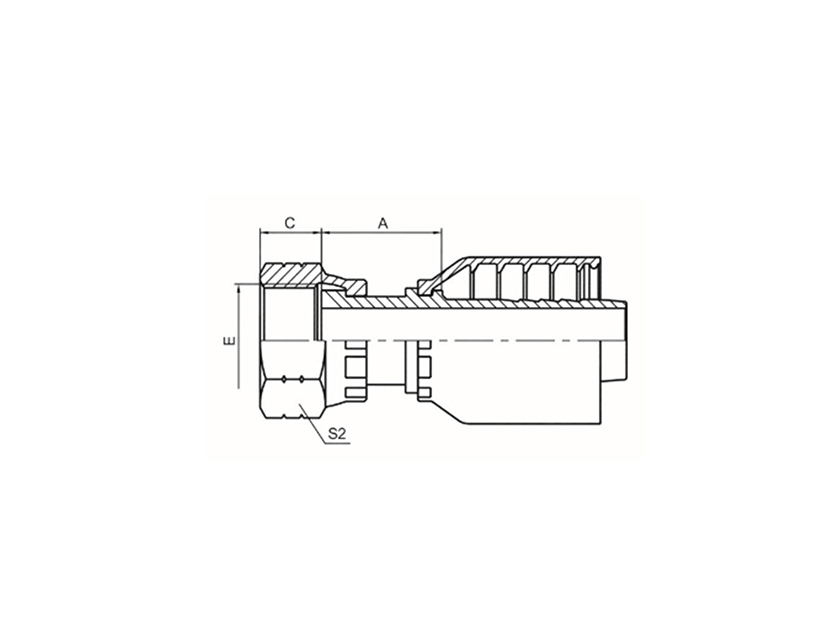

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | |
| 24211-04-04RW | -- | 9/16" X18 | 6 | 04 | 24 | 8.5 | 19 |
| 24211-04-05RW | -- | 9/16" X18 | 8 | 05 | 24 | 8.5 | 19 |
| 24211-04-06RW | -- | 9/16" X18 | 10 | 06 | 24 | 8.5 | 19 |
| 24211-06-04TRW | -- | 11/16" X16 | 6 | 04 | 26 | 10 | 22 |
| 24211-06-05TRW | -- | 11/16" X16 | 8 | 05 | 26 | 10 | 22 |
| 24211-06-06RW | -- | 11/16" X16 | 10 | 06 | 27 | 10 | 22 |
| 24211-06-08RW | 24212-06-08RW | 11/16" X16 | 12 | 08 | 28 | 10 | 22 |
| 24211-08-05TRW | -- | 13/16" X16 | 8 | 05 | 27.5 | 11 | 27 |
| 24211-08-06TRW | -- | 13/16" X16 | 10 | 06 | 27 | 11 | 27 |
| 24211-08-08RW | 24212-08-08RW | 13/16" X16 | 12 | 08 | 30 | 11 | 27 |
| 24211-08-10RW | 24212-08-10RW | 13/16" X16 | 16 | 10 | 30.5 | 11 | 27 |
| 24211-10-08TRW | 24212-10-08TRW | 1" X14 | 12 | 08 | 32 | 13.5 | 30 |
| 24211-10-10RW | 24212-10-10RW | 1" X14 | 16 | 10 | 34.5 | 13.5 | 30 |
| 24211-10-12RW | 24212-10-12RW | 1" X14 | 20 | 12 | 34 | 13.5 | 30 |
| 24211-12-08TRW | 24212-12-08TRW | 1.3/16" X12 | 12 | 08 | 33.5 | 15 | 36 |
| 24211-12-10TRW | 24212-12-10TRW | 1.3/16" X12 | 16 | 10 | 34 | 15 | 36 |
| 24211-12-12TRW | 24212-12-12TRW | 1.3/16" X12 | 20 | 12 | 33 | 15 | 36 |
| 24211-12-16RW | 24212-12-16RW | 1.3/16" X12 | 25 | 16 | 38.7 | 15 | 36 |
| 24211-16-12TRW | 24212-16-12TRW | 1.7/16" X12 | 20 | 12 | 34 | 14.8 | 41 |
| 24211-16-16TRW | 24212-16-16TRW | 1.7/16" X12 | 16 | 10 | 35 | 14.8 | 41 |
| 24211-16-20RW | 24212-16-20RW | 1.7/16" X12 | 32 | 20 | 41.2 | 14.8 | 41 |
| 24211-20-16TRW | 24212-20-16TRW | 1.11/16" X12 | 25 | 16 | 38.2 | 15 | 50 |
| 24211-20-20WRW | 24212-20-20WRW | 1.11/16" X12 | 32 | 20 | 45.2 | 15 | 50 |
| 24211-20-24WRW | 24212-20-24WRW | 1.11/16" X12 | 40 | 24 | 46 | 15 | 50 |
| 24211-24-20TRW | 24212-24-20TRW | 2" X12 | 32 | 20 | 38.2 | 14.8 | 60 |
| 24211-24-24TRW | 24212-24-24TRW | 2" X12 | 40 | 24 | 39 | 14.8 | 60 |
Selection note: AMERICAN ORFS FEMALE INTERNAL THREAD FLAT FACE ISO 12151-1 SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
