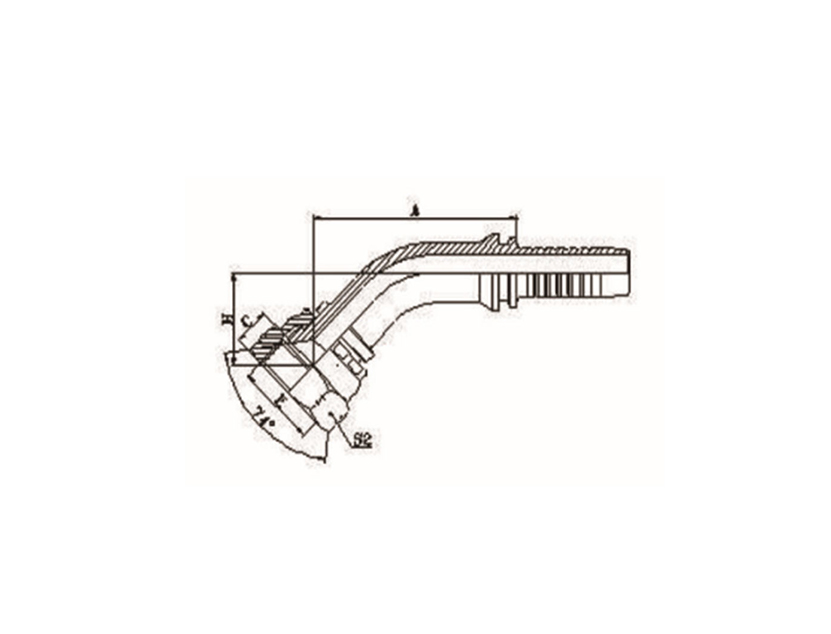

CONSTRUCTED FROM FORGED CARBON STEEL IN ONE PIECE WITH ZINC-PLATED RUST PREVENTION. FEATURES A 45° ELBOW STRUCTURE AND UNF AMERICAN FEMALE INTERNAL THREAD WITH A 74° INTERNAL CONE METAL-TO-METAL HARD SEAL. IT RELIES ON PRECISE CONE SURFACE CONFORMABILITY AND TIGHTENING FOR GASKET-FREE SEALING. EQUIPPED WITH A STANDARD SLEEVE COMPATIBLE WITH STEEL WIRE BRAIDED/SPIRAL HYDRAULIC HOSES, ENSURING HIGH CRIMPING ENGAGEMENT STRENGTH, PULL-OUT RESISTANCE, HIGH-FREQUENCY HYDRAULIC PULSE RESISTANCE, AND EFFECTIVE PREVENTION OF LEAKAGE UNDER VIBRATION CONDITIONS.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | S2 | ||
| 26741-04-03 | 7/16" X20 | 5 | 03 | 37.6 | 9 | 17.2 | 15 |
| 26741-04-04 | 7/16" X20 | 6 | 04 | 37 | 9 | 18 | 15 |
| 26741-05-04 | 1/2" X20 | 6 | 04 | 40.5 | 9.5 | 18.5 | 17 |
| 26741-05-05 | 1/2" X20 | 8 | 05 | 41.5 | 9.5 | 20 | 17 |
| 26741-05-06 | 1/2" X20 | 10 | 06 | 44.6 | 9.5 | 20.3 | 17 |
| 26741-06-04 | 9/16" X18 | 6 | 04 | 40.5 | 10.5 | 18.5 | 19 |
| 26741-06-05 | 9/16" X18 | 8 | 05 | 42 | 10.5 | 20.5 | 19 |
| 26741-06-06 | 9/16" X18 | 10 | 06 | 44 | 10.5 | 20.5 | 19 |
| 26741-08-06 | 3/4" X16 | 10 | 06 | 45 | 11 | 21.5 | 24 |
| 26741-08-08 | 3/4" X16 | 12 | 08 | 56.5 | 11 | 24 | 24 |
| 26741-10-08 | 7/8" X14 | 12 | 08 | 57.5 | 13 | 24.6 | 27 |
| 26741-10-10 | 7/8" X14 | 16 | 10 | 60 | 13 | 26 | 27 |
| 26741-10-12 | 7/8" X14 | 20 | 12 | 75.7 | 13 | 28.9 | 27 |
| 26741-12-08 | 1.1/16" X12 | 12 | 08 | 58 | 15 | 25.5 | 32 |
| 26741-12-10 | 1.1/16" X12 | 16 | 10 | 60.5 | 15 | 27 | 32 |
| 26741-12-12 | 1.1/16" X12 | 20 | 12 | 73.5 | 15 | 30 | 32 |
| 26741-14-12 | 1.3/16" X12 | 20 | 12 | 77.4 | 15 | 30 | 36 |
| 26741-16-12 | 1.5/16" X12 | 20 | 12 | 77.4 | 16 | 30 | 41 |
| 26741-16-16 | 1.5/16" X12 | 25 | 16 | 84 | 16 | 32.5 | 41 |
| 26741-20-20W | 1.5/8" X12 | 32 | 20 | 95.9 | 17 | 35.2 | 50 |
| 26741-24-20W | 1.7/8" X12 | 32 | 20 | 100.9 | 20 | 40.1 | 55 |
| 26741-24-24W | 1.7/8" X12 | 40 | 24 | 114.8 | 20 | 44.1 | 55 |
| 26741-32-32T | 2.1/2" X12 | 50 | 32 | 135.9 | 23.5 | 51.6 | 75 |
Selection note: 45° ELBOW STRUCTURE, UNF AMERICAN FEMALE INTERNAL THREAD, 74° INTERNAL CONE METAL-TO-METAL HARD SEAL.. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
