MANUFACTURED IN STRICT ACCORDANCE WITH THE DIN 2353 METRIC COMPRESSION FITTING STANDARD. THE BODY IS PRECISION-FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 45° INTEGRATED ELBOW STRUCTURE AND METRIC MALE EXTERNAL THREAD WITH A CUTTING RING SEALING ASSEMBLY. IT RELIES ON NUT TIGHTENING TO COMPRESS THE CUTTING RING INTO THE OUTER WALL OF THE STEEL PIPE, FORMING A METAL-TO-METAL HARD SEAL WITHOUT THE NEED FOR O-RINGS. EQUIPPED WITH STANDARD CUTTING RINGS COMPATIBLE WITH PRECISION SEAMLESS STEEL PIPES, ENSURING SECURE ASSEMBLY, VIBRATION RESISTANCE, HIGH-PRESSURE PULSE RESISTANCE, AND LEAK-FREE PERFORMANCE.

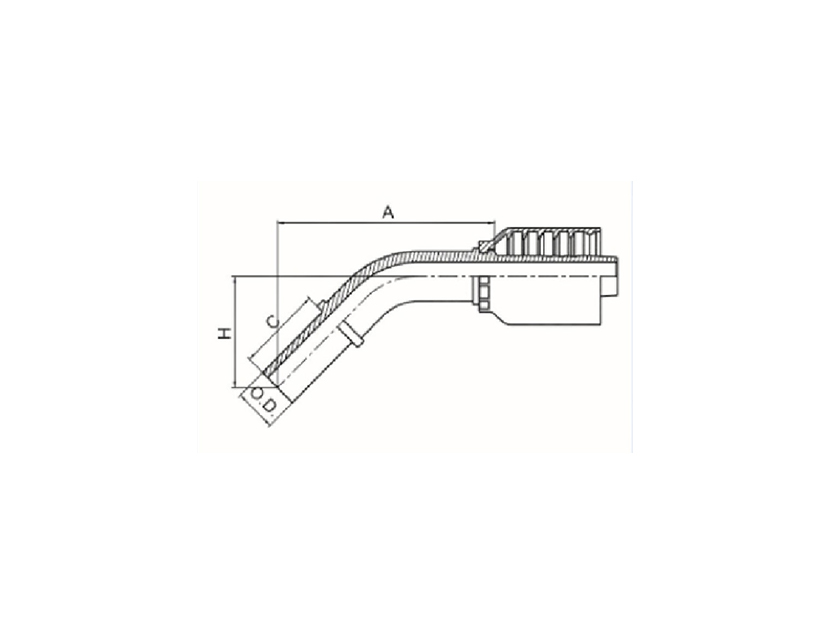

PART NO. | HOSE BORE | TUBE O.D. | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | |
| 50041-06-04RW | -- | 6 | 04 | 6 | 53.7 | 22 | 30.1 |
| 50041-08-05RW | -- | 8 | 05 | 8 | 57.2 | 24 | 32.4 |
| 50041-08-06RW | -- | 10 | 06 | 8 | 58.9 | 24 | 33.1 |
| 50041-10-05RW | -- | 8 | 05 | 10 | 55.5 | 23 | 30.6 |
| 50041-10-06RW | -- | 10 | 06 | 10 | 57.1 | 23 | 31.3 |
| 50041-12-06RW | -- | 10 | 06 | 12 | 59.5 | 23 | 34.5 |
| 50041-12-08RW | 50042-12-08RW | 12 | 008 | 12 | 72.9 | 23 | 37.4 |
| 50041-15-06RW | 50042-15-06RW | 10 | 06 | 15 | 60.3 | 25 | 34.5 |
| 50041-15-08RW | 50042-15-08RW | 12 | 08 | 15 | 71.1 | 25 | 35.7 |
| 50041-18-08RW | 50042-18-08RW | 12 | 08 | 18 | 73.9 | 26 | 38.5 |
| 50041-18-10RW | 50042-18-10RW | 16 | 10 | 18 | 86.1 | 26 | 39.8 |
| 50041-22-10RW | 50042-22-10RW | 16 | 10 | 22 | 88.6 | 28 | 42.3 |
| 50041-22-12RW | 50042-22-12RW | 20 | 12 | 22 | 93.3 | 28 | 45.9 |
| 50041-22-16RW | 50042-22-16RW | 25 | 16 | 22 | 103.1 | 28 | 46.7 |
| 50041-28-16RW | 50042-28-16RW | 25 | 16 | 28 | 105.9 | 30 | 49.5 |
| 50041-35-20RW | 50042-35-20RW | 32 | 20 | 35 | 119.7 | 36 | 57.8 |
| 50041-42-24RW | 50042-42-24RW | 40 | 24 | 42 | 112.3 | 40 | 59.6 |
| 50041-08-04RW | -- | 6 | 04 | 8 | 55.1 | 24 | 31.5 |
| 50041-08-05RW | -- | 8 | 05 | 8 | 57.2 | 24 | 32.4 |
| 50041-08-06RW | -- | 10 | 06 | 8 | 58.9 | 24 | 33.1 |
| 50041-10-04RW | -- | 6 | 04 | 10 | 55.5 | 26 | 31.9 |
| 50041-12-04RW | -- | 6 | 04 | 12 | 58.6 | 26 | 35.1 |
| 50041-12-05RW | -- | 8 | 05 | 12 | 60.7 | 26 | 35.9 |
| 50041-14-06RW | -- | 10 | 06 | 14 | 62.6 | 29 | 37.3 |
| 50041-14-08RW | 50042-14-08RW | 12 | 08 | 14 | 74.3 | 29 | 38.8 |
| 50041-14-12RW | 50042-14-12RW | 20 | 12 | 14 | 91.9 | 29 | 43.8 |
| 50041-16-08RW | 50042-16-08RW | 12 | 08 | 16 | 77.1 | 30 | 41.7 |
| 50041-16-10RW | 50042-16-10RW | 16 | 10 | 16 | 89.3 | 30 | 43 |
| 50041-20-10RW | 50042-20-10RW | 16 | 10 | 20 | 94.3 | 36 | 48 |
Selection note: 45° METRIC COMPRESSION FITTING STRAIGHT TUBE DIN 2353. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
