MANUFACTURED IN STRICT ACCORDANCE WITH THE GB/T 9065.3 NATIONAL STANDARD. THE BODY IS FORGED FROM THICKENED CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 90° ELBOW AND METRIC FEMALE INTERNAL THREAD FLAT FACE SEAL STRUCTURE, RELYING ON END-FACE O-RING COMPRESSION FOR SEALING, WHICH COMPENSATES FOR INSTALLATION MISALIGNMENT AND PREVENTS LEAKAGE UNDER VIBRATIONS. AVAILABLE WITH LIGHT AND HEAVY SERIES SLEEVES; THE HEAVY SERIES IS COMPATIBLE WITH MULTI-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING TIGHT CRIMPING ENGAGEMENT, HIGH-PRESSURE PULSE RESISTANCE, AND PULL-OUT RESISTANCE.

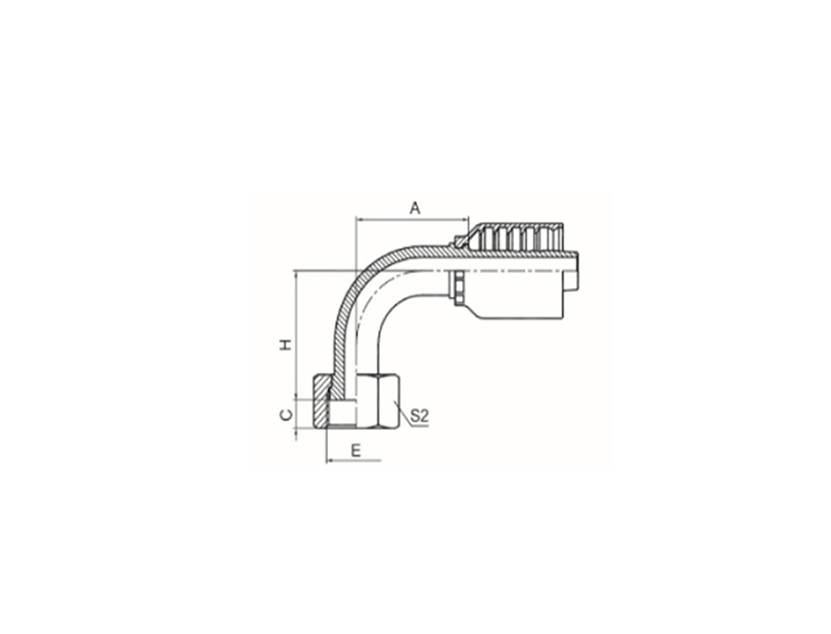

PART NO. | E THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 20291-14-04TRW | -- | M14X1.5 | 6 | 04 | 32 | 8 | 32 | 19 |
| 20291-14-05RW | -- | M14X1.5 | 8 | 05 | 34.5 | 10 | 37 | 19 |
| 20291-16-05TRW | -- | M16X1.5 | 8 | 05 | 35.5 | 9 | 35 | 22 |
| 20291-16-04TRW | -- | M16X1.5 | 6 | 04 | 31.5 | 9 | 32 | 22 |
| 20291-16-06RW | -- | M16X1.5 | 10 | 06 | 36.3 | 8 | 40.3 | 22 |
| 20291-18-06TRW | -- | M18X1.5 | 10 | 06 | 37.3 | 10.5 | 37.8 | 24 |
| 20291-18-04TRW | -- | M18X1.5 | 6 | 04 | 31.5 | 10.5 | 32.5 | 24 |
| 20291-18-05TRW | -- | M18X1.5 | 8 | 05 | 33.5 | 10.5 | 35.5 | 24 |
| 20291-20-06TRW | -- | M20X1.5 | 10 | 06 | 36.3 | 10 | 39.3 | 24 |
| 20291-20-08RW | 20292-20-08RW | M20X1.5 | 12 | 08 | 41.5 | 10 | 48 | 27 |
| 20291-22-06TRW | -- | M22X1.5 | 10 | 06 | 36.3 | 10 | 9.3 | 27 |
| 20291-22-08TRW | 20292-22-08TRW | M22X1.5 | 12 | 08 | 41.5 | 10 | 44.5 | 27 |
| 20291-22-10RW | 20292-22-10RW | M22X1.5 | 16 | 10 | 57.5 | 10 | 52.5 | 27 |
| 20291-24-08TRW | 20292-24-08TRW | M24X1.5 | 12 | 08 | 41.5 | 11 | 44.5 | 30 |
| 20291-24-10RW | 20292-24-10RW | M24X1.5 | 16 | 10 | 57.5 | 10.5 | 53 | 30 |
| 20291-27-10TRW | 20292-27-10TRW | M27X1.5 | 16 | 10 | 57.5 | 10 | 50.3 | 32 |
| 20291-27-08TRW | 20292-27-08TRW | M27X1.5 | 12 | 08 | 41.5 | 10 | 45.8 | 32 |
| 20291-27-12RW | 20292-27-12RW | M27X1.5 | 20 | 12 | 62.5 | 10 | 60.5 | 32 |
| 20291-30-12TRW | 20292-30-12TRW | M30X1.5 | 20 | 12 | 62.5 | 10.5 | 58 | 36 |
| 20291-30-10TRW | 20292-30-10TRW | M30X1.5 | 16 | 10 | 57.5 | 10.5 | 51.5 | 36 |
| 20291-33-16RW | 20292-33-16RW | M33X1.5 | 25 | 16 | 74.4 | 13.5 | 70 | 41 |
| 20291-36-12TRW | 20292-36-12TRW | M36X2.0 | 20 | 12 | 62.5 | 13 | 59.5 | 41 |
| 20291-36-16TRW | 20292-36-16TRW | M36X2.0 | 25 | 16 | 75.9 | 13 | 68 | 41 |
| 20291-39-16TRW | 20292-39-16TRW | M39X2.0 | 25 | 10 | 79.2 | 13 | 53 | 46 |
| 20291-42-16TRW | 20292-42-16TRW | M42X2.0 | 25 | 16 | 74.4 | 15 | 69 | 50 |
| 20291-45-20TRW | 20292-45-20TRW | M45X2.0 | 32 | 20 | 92.7 | 15 | 79 | 5 |
Selection note: 90° METRIC FEMALE INTERNAL THREAD FLAT FACE, REFERENCE GB/T 9065.3. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
