MANUFACTURED IN STRICT ACCORDANCE WITH DIN AND ISO 12151-2 HEAVY SERIES STANDARDS. THE BODY IS FORGED FROM THICKENED CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST AND CORROSION RESISTANCE. FEATURES A METRIC FEMALE INTERNAL THREAD WITH A 24° SPHERICAL METAL SELF-CENTERING SEAL. THE SPHERE ADAPTS TO MINOR ANGULAR MISALIGNMENT DURING ASSEMBLY, AND THE PURE METAL-TO-METAL HARD SEAL ENSURES A HIGH PRESSURE BEARING LIMIT. EQUIPPED WITH A HEAVY SERIES THICKENED SLEEVE COMPATIBLE WITH 4/6-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING STRONG CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, AND HIGH-FREQUENCY HIGH-PRESSURE PULSE RESISTANCE, EFFECTIVELY PREVENTING OIL LEAKAGE UNDER LONG-TERM VIBRATION CONDITIONS.

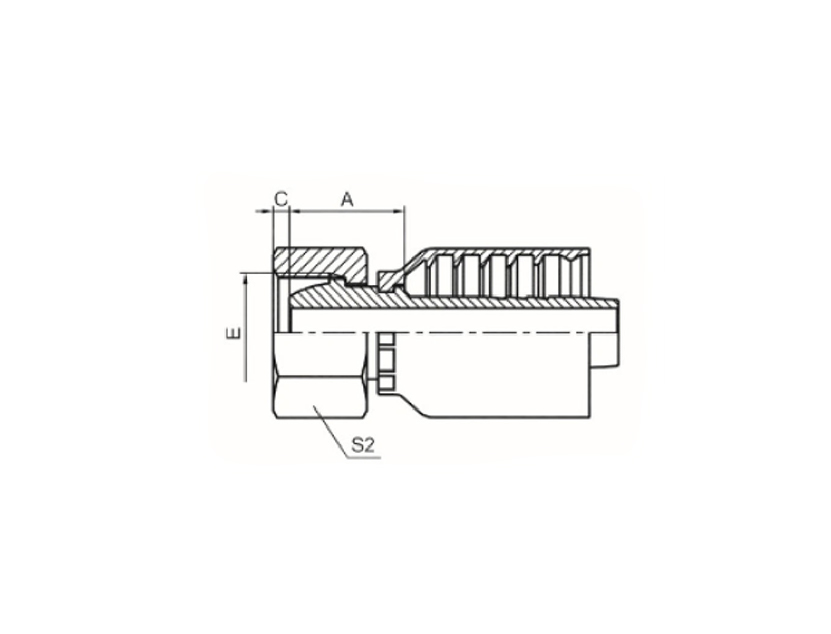

PART NO. | THREAD E | HOSE BORE | TUBE O.D. | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S2 | ||
| 20511C-16-04TRW | -- | M16X1.5 | 6 | 04 | 8 | 20 | 3 | 19 |
| 20511C-18-04TRW | -- | M18X1.5 | 6 | 04 | 10 | 21.5 | 3 | 22 |
| 20511C-20-05TRW | -- | M20X1.5 | 8 | 05 | 12 | 22 | 4.5 | 24 |
| 20511C-20-06TRW | -- | M20X1.5 | 10 | 06 | 12 | 21.5 | 4.5 | 24 |
| 20511C-22-06TRW | -- | M22X1.5 | 10 | 06 | 14 | 21.5 | 4.5 | 27 |
| 20511C-24-08TRW | 20512C-24-08TRW | M24X1.5 | 12 | 08 | 16 | 22 | 5 | 30 |
| 20511C-30-10TRW | 20512C-30-10TRW | M30X1.5 | 16 | 10 | 20 | 25.5 | 7 | 36 |
| 20511C-36-12TRW | 20512C-36-12TRW | M36X2 | 20 | 12 | 25 | 25 | 6.5 | 41 |
| 20511C-42-16TRW | 20512C-42-16TRW | M42X2 | 25 | 16 | 30 | 29.7 | 9 | 50 |
| 20511C-52-20TRW | 20512C-52-20TRW | M52X2 | 32 | 20 | 38 | 32.7 | 8 | 60 |
Selection note: METRIC FEMALE INTERNAL THREAD 24° SPHERE HEAVY SERIES. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
