MANUFACTURED IN STRICT ACCORDANCE WITH THE ISO 12151-2 AND DIN 3865 HEAVY-DUTY STANDARDS. THE BODY IS FORGED FROM THICKENED CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR CORROSION PREVENTION. FEATURES A 45° ELBOW AND METRIC FEMALE INTERNAL THREAD, WITH A 24° CONE SEAT AND BUILT-IN O-RING COMPOSITE SEALING. THE COMBINATION OF METAL POSITIONING AND RUBBER BUFFERING PROVIDES DUAL LEAK PREVENTION, EXCELLENT VIBRATION RESISTANCE, AND COMPENSATION FOR ASSEMBLY DEVIATIONS. EQUIPPED WITH A HEAVY SERIES THICKENED SLEEVE COMPATIBLE WITH MULTI-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING DEEP CRIMPING ENGAGEMENT, PULL-OUT RESISTANCE, HIGH-FREQUENCY HIGH-PRESSURE PULSE RESISTANCE, AND EFFECTIVE PREVENTION OF OIL SEEPAGE AND FITTING LOOSENING UNDER LONG-TERM HEAVY-DUTY CONDITIONS.
PART NO. | THREAD E | HOSE BORE | O RING | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | TUBE O.D. | A | C | H | S2 | ||
| 20541-14-04TRW | -- | M14X1.5 | 6 | 04 | 6 | O04.5X1.5 | 44.1 | 1.1 | 20.5 | 17 |
| 20541-16-04TRW | -- | M16X1.5 | 6 | 04 | 8 | O06.5X1.5 | 44.5 | 1.5 | 20.9 | 19 |
| 20541-16-05TRW | -- | M16X1.5 | 8 | 05 | 8 | O06.5X1.5 | 46.6 | 1.5 | 21.8 | 19 |
| 20541-18-04TRW | -- | M18X1.5 | 6 | 04 | 10 | O08.0X1.5 | 45.6 | 1.5 | 22 | 22 |
| 20541-18-06TRW | -- | M18X1.5 | 10 | 06 | 10 | O08.0X1.5 | 48.8 | 1.5 | 23.6 | 22 |
| 20541-20-06TRW | -- | M20X1.5 | 10 | 06 | 12 | O10.0X1.5 | 49.1 | 2.5 | 23.9 | 24 |
| 20541-20-08WRW | 20542-20-08WRW | M20X1.5 | 12 | 08 | 12 | O10.0X1.5 | 65 | 2.5 | 28.6 | 24 |
| 20541-22-06TRW | -- | M22X1.5 | 10 | 06 | 14 | O11.0X2.0 | 49.1 | 2.5 | 23.9 | 27 |
| 20541-22-08TRW | 20542-22-08TRW | M22X1.5 | 12 | 08 | 14 | O11.0X2.0 | 61.8 | 2.5 | 25.4 | 27 |
| 20541-24-06TRW | -- | M24X1.5 | 10 | 06 | 16 | O13.0X2.0 | 49.1 | 3 | 23.9 | 30 |
| 20541-24-08TRW | 20542-24-08TRW | M24X1.5 | 12 | 08 | 16 | O13.0X2.0 | 61.8 | 3 | 25.4 | 30 |
| 20541-30-10TRW | 20542-30-10TRW | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 74.8 | 2.5 | 29.5 | 36 |
| 20541-30-12TRW | 20542-30-12TRW | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 78.1 | 2.5 | 32.3 | 36 |
| 20541-36-12TRW | 20542-36-12TRW | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 78.4 | 3 | 32.6 | 46 |
| 20541-42-12TRW | 20542-42-12TRW | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 79.6 | 4 | 33.8 | 50 |
| 20541-42-16TRW | 20542-42-16TRW | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 91.8 | 4 | 34.5 | 50 |
| 20541-52-20TRW | 20542-52-20TRW | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 101.7 | 4.5 | 39.8 | 60 |
| 20541-52-24TRW | 20542-52-24TRW | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 116.4 | 4.5 | 43.7 | 60 |

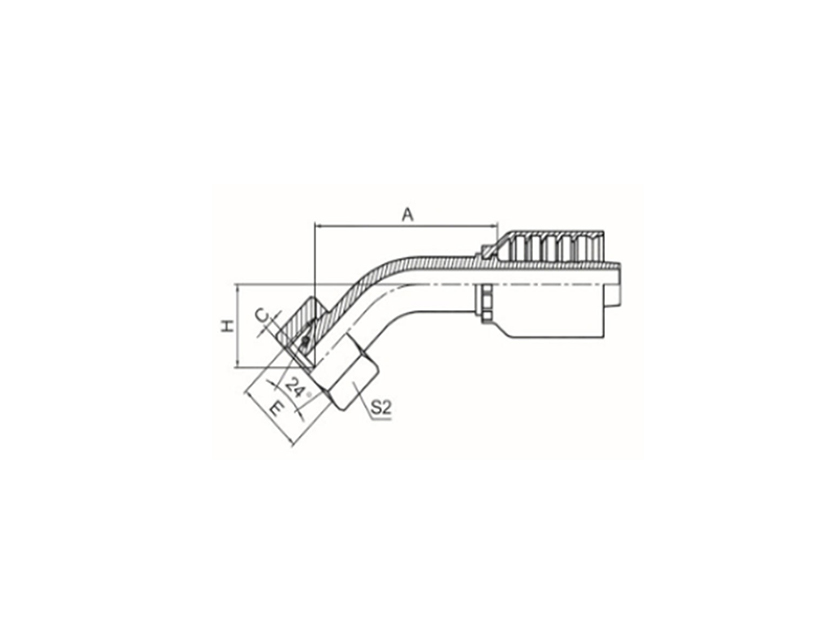

Selection note: 45° METRIC FEMALE INTERNAL THREAD 24° CONE WITH O-RING HEAVY SERIES ISO 12151-2 DIN 3865. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
