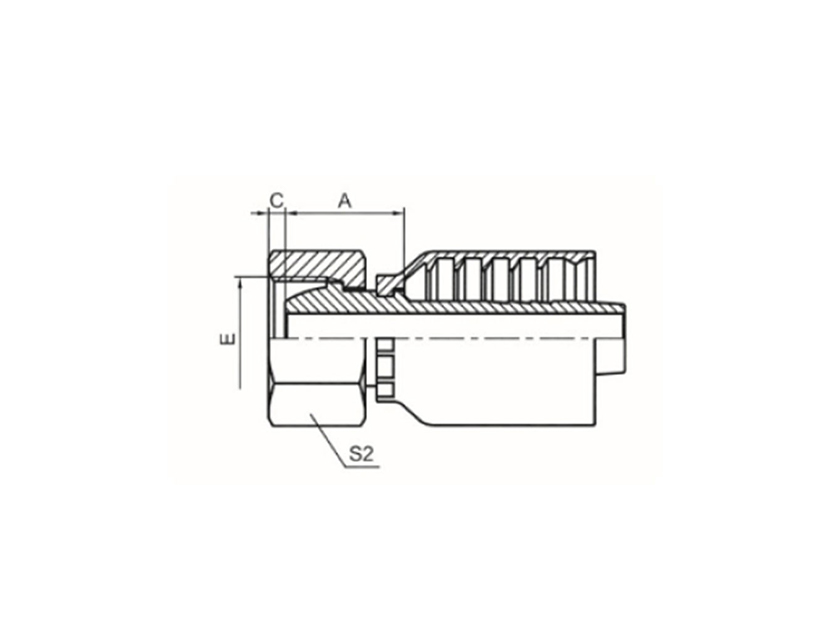

MANUFACTURED IN STRICT ACCORDANCE WITH THE ISO 12151-2 AND DIN 3861 LIGHT SERIES STANDARDS. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 45° ELBOW STRUCTURE AND METRIC FEMALE INTERNAL THREAD WITH A 24° SPHERE SELF-CENTERING SEAL. THE SPHERE ADAPTS TO MINOR ANGULAR DEVIATIONS DURING ASSEMBLY, ENSURING METAL-TO-METAL SURFACE CONFORMABILITY FOR LEAK-FREE SEALING. EQUIPPED WITH A LIGHT SERIES THIN-WALL SLEEVE COMPATIBLE WITH SINGLE-LAYER/DOUBLE-LAYER STEEL WIRE BRAIDED LOW-PRESSURE HOSES, PROVIDING SMOOTH BENDING, SECURE CRIMPING, PULL-OUT RESISTANCE, AND STANDARD PRESSURE PULSE RESISTANCE.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | TUBE O.D. | A | C | H | S2 | |
| 20441C-12-04WRW | -- | M12X1.5 | 6 | 04 | 6 | 45.6 | 3.5 | 22 | 17 |
| 20441C-14-04TRW | -- | M14X1.5 | 6 | 04 | 8 | 44.1 | 3.5 | 20.5 | 19 |
| 20441C-16-04TRW | -- | M16X1.5 | 6 | 04 | 10 | 44.1 | 4 | 20.5 | 22 |
| 20441C-16-05TRW | -- | M16X1.5 | 8 | 05 | 10 | 46.2 | 4 | 21.4 | 22 |
| 20441C-16-06WRW | -- | M16X1.5 | 10 | 06 | 10 | 49.9 | 3.5 | 24.7 | 19 |
| 20441C-18-06TRW | -- | M18X1.5 | 10 | 06 | 12 | 48.8 | 3 | 23.6 | 22 |
| 20441C-22-06TRW | -- | M22X1.5 | 10 | 06 | 15 | 49.1 | 4.5 | 23.9 | 27 |
| 20441C-22-08TRW | 20442C-22-08TRW | M22X1.5 | 12 | 08 | 15 | 61.8 | 4.5 | 25.4 | 27 |
| 20441C-26-10TRW | 20442C-26-10TRW | M26X1.5 | 16 | 10 | 18 | 73.8 | 4 | 28.5 | 32 |
| 20441C-30-10TRW | 20442C-30-10TRW | M30X2 | 16 | 10 | 22 | 73.8 | 7 | 28.5 | 36 |
| 20441C-30-12TRW | 20442C-30-12TRW | M30X2 | 20 | 12 | 22 | 77.1 | 7 | 31.3 | 36 |
| 20441C-36-16TRW | 20442C-36-16TRW | M36X2 | 25 | 16 | 28 | 89.6 | 6.5 | 33.2 | 41 |
| 20441C-45-20TRW | 20442C-45-20TRW | M45X2 | 32 | 20 | 35 | 101.7 | 7 | 39.8 | 50 |
| 20441C-52-24TRW | 20442C-52-24TRW | M52X2 | 40 | 24 | 42 | 117.1 | 8 | 44.4 | 60 |
Selection note: 45° METRIC FEMALE INTERNAL THREAD 24° SPHERE LIGHT SERIES. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
