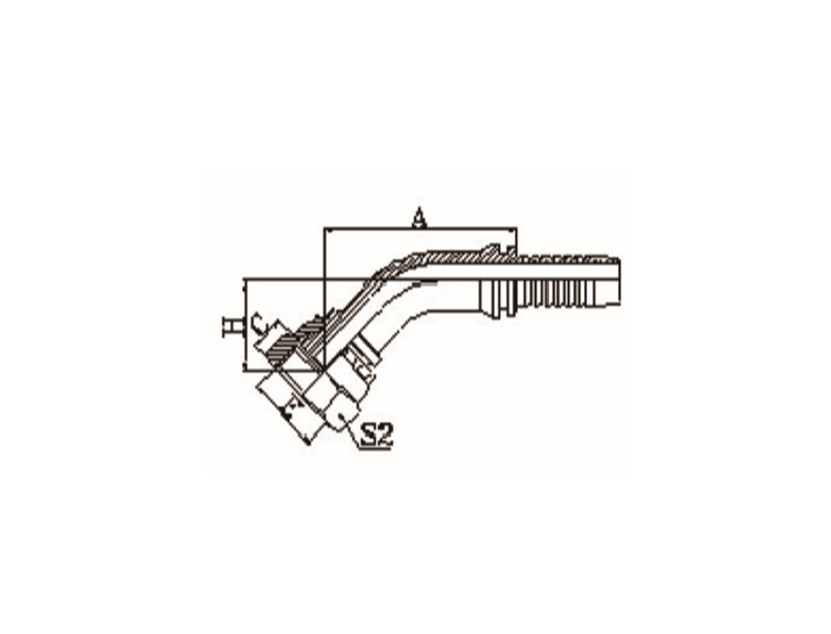

THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR CORROSION PREVENTION. FEATURES A 45° ELBOW TRANSITION AND METRIC FEMALE INTERNAL THREAD FLAT FACE SEAL STRUCTURE, RELYING ON END-FACE O-RING COMPRESSION FOR SEALING, COMPENSATING FOR INSTALLATION DEVIATIONS AND ENSURING LEAK-FREE PERFORMANCE UNDER HIGH PRESSURE. LIGHT/HEAVY SERIES SLEEVES ARE AVAILABLE TO COMPATIBLY FIT BRAIDED/SPIRAL WIRE HYDRAULIC HOSES, ENSURING TIGHT CRIMPING ENGAGEMENT, PULSE RESISTANCE, AND PULL-OUT PREVENTION.
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | S2 | ||
| 20241-14-04 | M14X1.5 | 6 | 04 | 38 | 8.5 | 19 | 19 |
| 20241-14-05 | M14X1.5 | 8 | 05 | 42.7 | 8.5 | 19.3 | 19 |
| 20241-16-05 | M16X1.5 | 8 | 05 | 42.3 | 8.5 | 20.7 | 22 |
| 20241-18-06 | M18X1.5 | 10 | 06 | 45.5 | 8 | 22 | 24 |
| 20241-22-08 | M22X1.5 | 12 | 08 | 57.5 | 10 | 24.5 | 27 |
| 20241-27-10T | M27X1.5 | 16 | 10 | 58 | 10 | 24.5 | 32 |
| 20241-30-12T | M30X1.5 | 20 | 12 | 74 | 11 | 30 | 36 |
| 20241-36-12T | M36X2 | 20 | 12 | 75 | 13 | 27.5 | 41 |
| 20241-36-14T | M36X2 | 22 | 14 | 77.3 | 13 | 27 | 41 |
| 20241-36-16 | M36X2 | 25 | 16 | 85.7 | 13 | 31.5 | 41 |
| 20241-39-16T | M39X2 | 25 | 16 | 82 | 13 | 30 | 46 |
| 20241-42-20W | M42X2 | 32 | 20 | 95.9 | 15 | 35.2 | 50 |
| 20241-45-20T | M45X2 | 32 | 20 | 94.5 | 15 | 35.5 | 55 |
| 20241-52-20T | M52X2 | 32 | 20 | 94.5 | 17 | 33.8 | 60 |
| 20241-52-24T | M52X2 | 40 | 24 | 105 | 17 | 38.5 | 60 |
| 20241-60-28T | M60X2 | 45 | 28 | 118.7 | 20 | 43.6 | 70 |
| 20241-62-32T | M64X2 | 50 | 32 | 127.8 | 23 | 45.6 | 75 |
Selection note: 45° METRIC FEMALE INTERNAL THREAD FLAT SEAT. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
