MANUFACTURED IN STRICT ACCORDANCE WITH ISO 12151-2 AND DIN 3865 STANDARDS. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 45° ELBOW AND METRIC FEMALE INTERNAL THREAD, WITH A 24° CONE SEAT PAIRED WITH A BUILT-IN O-RING FOR STABLE AND LEAK-FREE COMPOSITE SEALING. EQUIPPED WITH A LIGHT SERIES THIN CLAMPING SLEEVE COMPATIBLE WITH LIGHT-DUTY BRAIDED HYDRAULIC HOSES, ENSURING SECURE CRIMPING, LOW BENDING RESISTANCE, PULL-OUT RESISTANCE, AND MEDIUM- TO LOW-PRESSURE PULSE RESISTANCE.

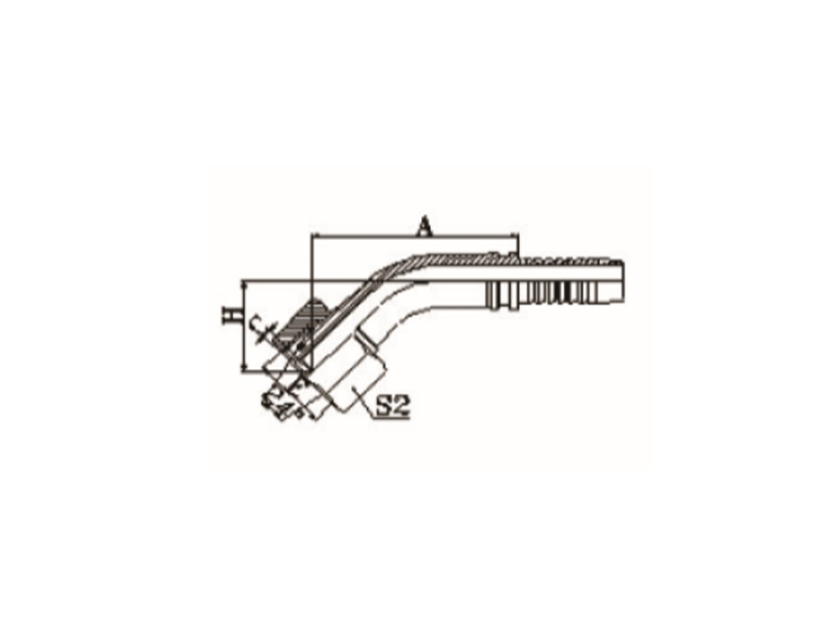

PART NO. | THREAD E | HOSE BORE | O-RING | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|---|
| DN | DASH | OD | A | C | H | S2 | |||
| 20441-12-04 | M14X1.5 | 6 | 04 | 8 | O06.5X1.5 | 45 | 2 | 26 | 19 |
| 20441-16-05 | M16X1.5 | 8 | 05 | 10 | O08.5X1.5 | 49.5 | 2 | 27.8 | 22 |
| 20441-16-06 | M16X1.5 | 10 | 06 | 10 | O08.5X1.5 | 51.3 | 2 | 27.8 | 22 |
| 20441-18-05T | M18X1.5 | 8 | 05 | 12 | O10.0X1.5 | 44.7 | 1.5 | 23.2 | 22 |
| 20441-18-06 | M18X1.5 | 10 | 06 | 12 | O10.0X1.5 | 53 | 2.5 | 29 | 24 |
| 20441-22-05T | M22X1.5 | 8 | 05 | 15 | O12.0X2 | 3 | 27 | ||
| 20441-22-06T | M22X1.5 | 10 | 06 | 15 | O12.0X2 | 49 | 3 | 25.3 | 27 |
| 20441-22-08 | M22X1.5 | 12 | 08 | 15 | O12.0X2 | 66.5 | 2.5 | 34 | 27 |
| 20441-26-08T | M26X1.5 | 12 | 08 | 18 | O15.0X2 | 61 | 2.1 | 28 | 32 |
| 20441-26-10 | M26X1.5 | 16 | 10 | 18 | O15.0X2 | 70 | 2.5 | 36 | 32 |
| 20441-26-12 | M26X1.5 | 20 | 12 | 18 | O15.0X2 | 2.5 | 32 | ||
| 20441-30-10T | M30X1.5 | 16 | 10 | 22 | O20.0X2 | 64 | 3.8 | 30 | 36 |
| 20441-30-12 | M30X1.5 | 20 | 12 | 22 | O20.0X2 | 84.5 | 4 | 40.5 | 36 |
| 20441-36-12T | M36X1.5 | 20 | 12 | 28 | O28.0X2 | 79.3 | 4.5 | 35.5 | 46 |
| 20441-36-14T | M36X2 | 22 | 14 | 28 | O28.0X2 | 4.5 | 46 | ||
| 20441-45-20T | M45X2 | 32 | 20 | 35 | O35.0X2 | 101.8 | 4 | 42.4 | 55 |
| 20441-52-20T | M52X2 | 32 | 20 | 42 | O42.0X2 | 4 | 46.6 | 60 | |
| 20441-52-24T | M52X2 | 40 | 24 | 42 | O42.0X2 | 113 | 4 | 60 | |
Selection note: 45° METRIC FEMALE INTERNAL THREAD 24° CONE WITH O-RING LIGHT SERIES ISO 12151-2 DIN 3865. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
