CONSTRUCTED FROM THICKENED FORGED CARBON STEEL WITH ZINC-PLATED RUST PREVENTION. FEATURES A 90° ELBOW AND METRIC FEMALE INTERNAL THREAD WITH A 24° SPHERE SELF-CENTERING SEAL, OFFERING HIGH FAULT TOLERANCE FOR METAL SPHERE SURFACE CONFORMABILITY. EQUIPPED WITH A HEAVY SERIES THICKENED SLEEVE COMPATIBLE WITH FOUR-LAYER/SIX-LAYER STEEL WIRE SPIRAL HIGH-PRESSURE HOSES, ENSURING HIGH CRIMPING ENGAGEMENT STRENGTH, ULTRA-HIGH PRESSURE RESISTANCE, SEVERE PULSE RESISTANCE, AND PULL-OUT RESISTANCE.

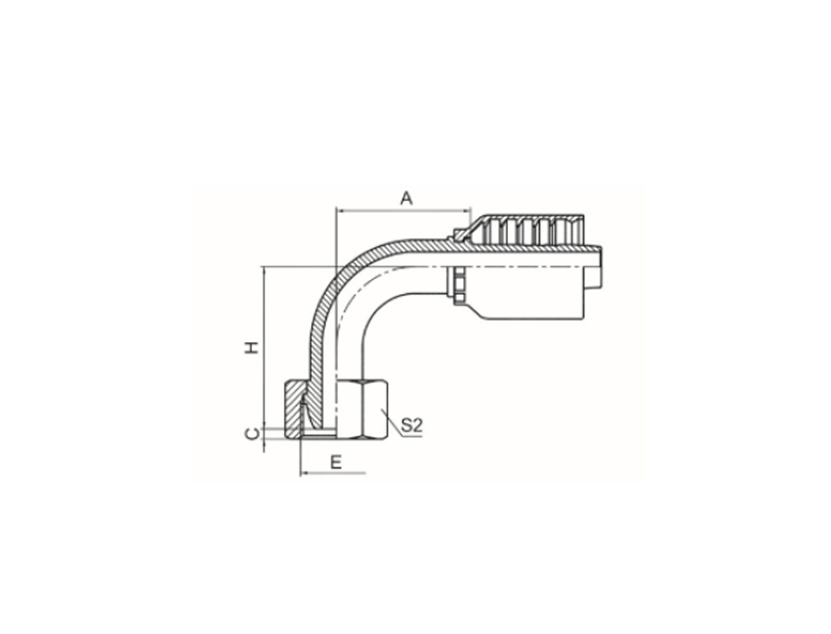

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 编BRAIDED | SPIRAL | DN | DASH | TUBE O.D. | A | C | H | S2 | |
| 20591C-16-04TRW | -- | M16X1.5 | 6 | 04 | 8 | 31.5 | 3 | 37.5 | 19 |
| 20591C-18-04TRW | -- | M18X1.5 | 6 | 04 | 10 | 31.5 | 3 | 39 | 22 |
| 20591C-20-05TRW | -- | M20X1.5 | 8 | 05 | 12 | 34.5 | 4.5 | 42.5 | 24 |
| 20591C-20-06TRW | -- | M20X1.5 | 10 | 06 | 12 | 36.3 | 4.5 | 44.8 | 24 |
| 20591C-22-06TRW | -- | M22X1.5 | 10 | 06 | 14 | 36.3 | 4.5 | 44.8 | 27 |
| 20591C-24-08TRW | 20592C-24-08TRW | M24X1.5 | 12 | 08 | 16 | 42.5 | 5 | 50.5 | 30 |
| 20591C-30-10TRW | 20592C-30-10TRW | M30X1.5 | 16 | 10 | 20 | 57 | 7 | 57 | 36 |
| 20591C-36-12TRW | 20592C-36-12TRW | M36X2 | 20 | 12 | 25 | 63.2 | 6.5 | 64 | 41 |
| 20591C-42-16TRW | 20592C-42-16TRW | M42X2 | 25 | 16 | 30 | 78.9 | 9 | 74 | 50 |
| 20591C-52-20TRW | 20592C-52-20TRW | M52X2 | 32 | 20 | 38 | 92.7 | 8 | 88 | 60 |
Selection note: 90° METRIC FEMALE INTERNAL THREAD 24° CONE SPHERE HEAVY SERIES. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
