THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST PREVENTION. FEATURES AN AMERICAN UNF FEMALE INTERNAL THREAD WITH A 90° INTERNAL CONE METAL SEALING SURFACE, RELYING ON PRECISE CONE SURFACE BUTTING FOR SEALING WITHOUT O-RINGS. EQUIPPED WITH A STANDARD SLEEVE THAT ENSURES TIGHT CRIMPING TO THE HYDRAULIC HOSE, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HIGH-FREQUENCY HYDRAULIC PULSES, EFFECTIVELY PREVENTING FITTING DISCONNECTION AND OIL SEEPAGE.

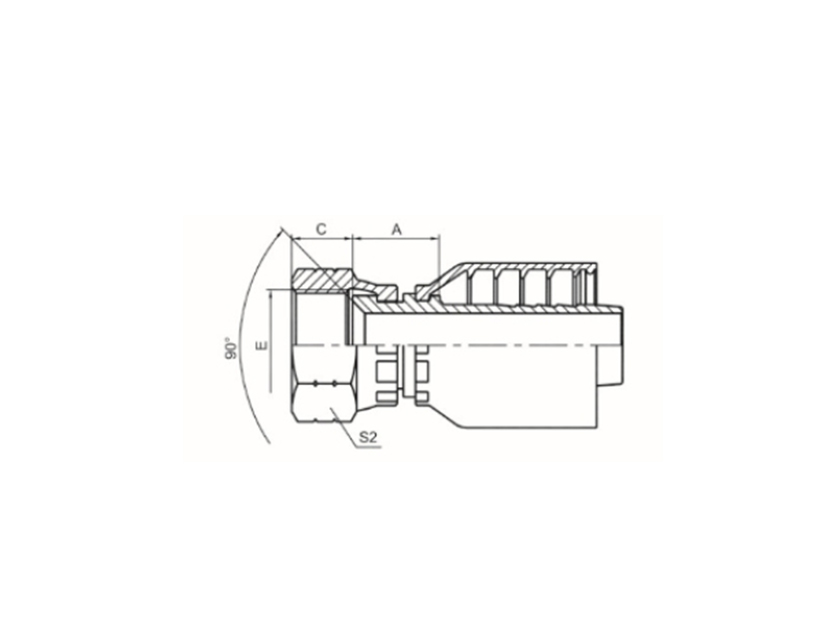

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | S1 | |
| 27811-04-04RW | -- | 7/16" X20 | 6 | 04 | 16.5 | 9 | 15 |
| 27811-05-05RW | -- | 1/2" X20 | 8 | 05 | 17 | 9.5 | 17 |
| 27811-06-04RW | -- | 5/8" X18 | 6 | 04 | 18.5 | 11.3 | 22 |
| 27811-06-05RW | -- | 5/8" X18 | 8 | 05 | 18.5 | 11.3 | 22 |
| 27811-06-06RW | 27812-08-08RW | 5/8" X18 | 10 | 06 | 18.5 | 11.3 | 22 |
| 27811-08-08RW | 27812-10-08RW | 3/4" X16 | 12 | 08 | 20 | 11 | 24 |
| 27811-10-08RW | 27812-10-10RW | 7/8" X14 | 12 | 08 | 20.5 | 13 | 27 |
| 27811-10-10RW | 27812-12-12RW | 7/8" X14 | 16 | 10 | 21 | 13 | 27 |
| 27811-12-12RW | 27812-16-16RW | 1.1/16" X14 | 20 | 12 | 22 | 14.3 | 32 |
Selection note: AMERICAN SAE FEMALE INTERNAL THREAD 90° INTERNAL CONE SAE J513. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
