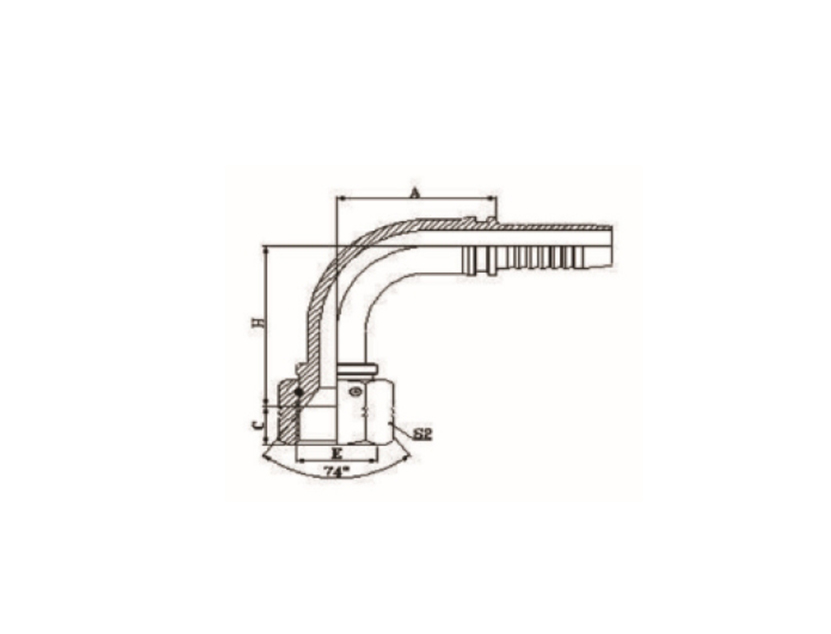

MANUFACTURED IN STRICT ACCORDANCE WITH THE SAE J514 AMERICAN STANDARD. THE BODY IS FORGED FROM CARBON STEEL AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 90° ELBOW COMPACT DESIGN AND AMERICAN UNF FEMALE INTERNAL THREAD, WITH A 74° INTERNAL CONE METAL-TO-METAL HARD SEAL THAT RELIES ON PRECISE CONE SURFACE CONFORMABILITY TO LOCK AND PREVENT LEAKAGE. EQUIPPED WITH A STANDARD CLAMPING SLEEVE THAT INTEGRATES SEAMLESSLY WITH HIGH-PRESSURE HOSE CRIMPING, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HIGH-FREQUENCY HYDRAULIC PULSES, EFFECTIVELY PREVENTING LOOSENING AND OIL SEEPAGE.
|
PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
DIMENSIONS |
|||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | C | H | S2 | ||
| 26791-04-03 | 7/16" X20 | 5 | 03 | 26.5 | 9 | 30.5 | 15 |
| 26791-04-04 | 7/16" X20 | 6 | 04 | 27.5 | 9 | 33 | 15 |
| 26791-05-04 | 1/2" X20 | 6 | 04 | 27.5 | 9.5 | 33.5 | 17 |
| 26791-05-05 | 1/2" X20 | 8 | 05 | 31 | 9.5 | 38.5 | 17 |
| 26791-05-06 | 1/2" X20 | 10 | 06 | 35.3 | 9.5 | 39.3 | 17 |
| 26791-06-04 | 9/16" X18 | 6 | 04 | 27.5 | 10.5 | 34.5 | 19 |
| 26791-06-05 | 9/16" X18 | 8 | 05 | 31 | 10.5 | 39 | 19 |
| 26791-06-06 | 9/16" X18 | 10 | 06 | 33 | 10.5 | 40 | 19 |
| 26791-06-08 | 9/16" X18 | 12 | 08 | 35.8 | 10.5 | 39.8 | 19 |
| 26791-08-06 | 3/4" X16 | 10 | 06 | 33 | 11 | 41.5 | 24 |
| 26791-08-08 | 3/4" X16 | 12 | 08 | 42.5 | 11 | 48.5 | 24 |
| 26791-08-10 | 3/4" X16 | 16 | 10 | 49 | 11 | 47.5 | 24 |
| 26791-10-08 | 7/8" X14 | 12 | 08 | 42.5 | 13 | 49.5 | 27 |
| 26791-10-10 | 7/8" X14 | 16 | 10 | 48.5 | 13 | 54 | 27 |
| 26791-10-12 | 7/8" X14 | 20 | 12 | 50.5 | 13 | 62 | 27 |
| 26791-12-08 | 1.1/16" X12 | 12 | 08 | 42.5 | 15 | 50.5 | 32 |
| 26791-12-10 | 1.1/16" X12 | 16 | 10 | 48.5 | 15 | 55 | 32 |
| 26791-12-12 | 1.1/16" X12 | 20 | 12 | 60.5 | 15 | 63 | 32 |
| 26791-12-16 | 1.1/16" X12 | 25 | 16 | 74 | 15 | 63.5 | 32 |
| 26791-14-12 | 1.3/16" X12 | 20 | 12 | 65.5 | 15 | 63.5 | 36 |
| 26791-16-12 | 1.5/16" X12 | 20 | 12 | 65.5 | 16 | 63.5 | 41 |
| 26791-16-16 | 1.5/16" X12 | 25 | 16 | 66 | 16 | 75.5 | 41 |
| 26791-20-20W | 1.5/8" X12 | 32 | 20 | 91.5 | 17 | 80.5 | 50 |
| 26791-24-20W | 1.7/8" X12 | 32 | 20 | 91.5 | 20 | 80.5 | 55 |
| 26791-24-24W | 1.7/8" X12 | 40 | 24 | 109.4 | 20 | 94 | 55 |
| 26791-32-32T | 2.1/2" X12 | 50 | 32 | 133.1 | 23.5 | 121.8 | 75 |
Selection note: 90° AMERICAN JIC FEMALE INTERNAL THREAD 74° INTERNAL CONE SAE J514. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
