THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST PREVENTION. FEATURES AN AMERICAN UNF FEMALE INTERNAL THREAD WITH A 74° INTERNAL CONE METAL-TO-METAL HARD SEAL ON THE END FACE, WHERE THE CONE SURFACE CONFORMS PRECISELY TO EFFECTIVELY PREVENT LEAKAGE WITHOUT O-RINGS. EQUIPPED WITH A STANDARD CLAMPING SLEEVE THAT ENSURES TIGHT CRIMPING TO THE HYDRAULIC HOSE, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HIGH-FREQUENCY HYDRAULIC PRESSURE PULSES, EFFECTIVELY PREVENTING HOSE DISCONNECTION AND OIL LEAKAGE.

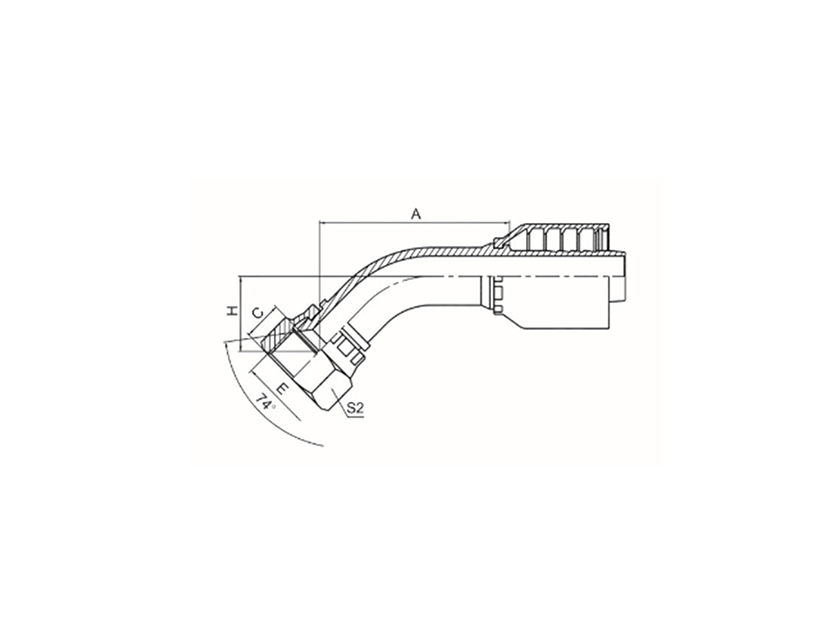

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| BRAIDED | SPIRAL | DN | DASH | A | C | H | S2 | |
| 26741-04-04RW | -- | 7/16" X20 | 6 | 04 | 41.7 | 9 | 18.1 | 15 |
| 26741-05-04RW | -- | 1/2" X20 | 6 | 04 | 42 | 9.5 | 18.1 | 17 |
| 26741-05-05RW | -- | 1/2" X20 | 8 | 05 | 44.1 | 9.5 | 19.3 | 17 |
| 26741-06-04TRW | -- | 9/16" X18 | 6 | 04 | 40.6 | 10.5 | 17 | 19 |
| 26741-06-05RW | -- | 9/16" X18 | 8 | 05 | 44.1 | 10.5 | 19.3 | 19 |
| 26741-06-06RW | -- | 9/16" X18 | 10 | 06 | 45.2 | 10.5 | 20 | 19 |
| 26741-06-08RW | 26742-06-08RW | 9/16" X18 | 12 | 08 | 58.6 | 10.5 | 22.2 | 19 |
| 26741-08-06TRW | -- | 3/4" X16 | 10 | 06 | 45.2 | 11 | 20 | 24 |
| 26741-08-08RW | 26742-08-08RW | 3/4" X16 | 12 | 08 | 60 | 11 | 23.6 | 24 |
| 26741-08-10RW | 26742-08-10RW | 3/4" X16 | 16 | 10 | 70.2 | 11 | 24.9 | 24 |
| 26741-10-08RW | 26742-10-08RW | 7/8" X14 | 12 | 08 | 60.4 | 13 | 24 | 27 |
| 26741-10-10RW | 26742-10-10RW | 7/8" X14 | 16 | 10 | 70.6 | 13 | 25.3 | 27 |
| 26741-10-12RW | 26742-10-12TRW | 7/8" X14 | 20 | 12 | 73.9 | 13 | 28.1 | 27 |
| 26741-12-08TRW | 26742-12-08TRW | 1.1/16" X12 | 12 | 08 | 59.3 | 15 | 22.9 | 32 |
| 26741-12-10TRW | 26742-12-10TRW | 1.1/16" X12 | 16 | 10 | 69.5 | 15 | 24.2 | 32 |
| 26741-12-12RW | 26742-12-12RW | 1.1/16" X12 | 20 | 12 | 75 | 15 | 29.2 | 32 |
| 26741-12-16RW | 26742-12-16RW | 1.1/16" X12 | 25 | 16 | 87.9 | 15 | 31.5 | 32 |
| 26741-14-12RW | 26742-14-12RW | 1.3/16" X12 | 20 | 12 | 75 | 15 | 29.2 | 36 |
| 26741-16-12TRW | 26742-16-12TRW | 1.5/16" X12 | 20 | 12 | 72.8 | 16 | 27 | 41 |
| 26741-16-16RW | 26742-16-16RW | 1.5/16" X12 | 25 | 16 | 87.9 | 16 | 31.5 | 41 |
| 26741-16-20RW | 26742-16-20RW | 1.5/16" X12 | 32 | 20 | 97.5 | 16 | 35.6 | 41 |
| 26741-20-16TRW | 26742-20-16TRW | 1.5/8" X12 | 25 | 16 | 86.1 | 17 | 29.7 | 50 |
| 26741-20-20WRW | 26742-20-20WRW | 1.5/8" X12 | 32 | 20 | 97.8 | 17 | 38.7 | 50 |
| 26741-24-20TRW | 26742-24-20TRW | 1.7/8" X12 | 32 | 20 | 95.3 | 20 | 33.4 | 55 |
| 26741-24-24WRW | 26742-24-24WRW | 1.7/8" X12 | 40 | 24 | 116.8 | 20 | 44.1 | 55 |
| 26741-32-24TRW | 26742-32-24TRW | 2.1/2" X12 | 40 | 24 | 113.6 | 23.5 | 40.9 | 75 |
Selection note: AMERICAN JIC FEMALE INTERNAL THREAD 74° INTERNAL CONE SAE J514. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
