STRICTLY MANUFACTURED IN ACCORDANCE WITH ISO 12151-1 AND SAE J516 STANDARDS. THE BODY IS FORGED FROM CARBON STEEL IN ONE PIECE AND ZINC-PLATED FOR RUST PREVENTION. FEATURES A 90° ELBOW AND AMERICAN UNF FEMALE INTERNAL THREAD, WITH AN ORFS FLAT SEAL STRUCTURE THAT RELIES ON END-FACE O-RING COMPRESSION FOR SEALING. THIS DESIGN OFFERS HIGH FAULT TOLERANCE AND ENSURES LEAK-FREE PERFORMANCE UNDER HIGH PRESSURE. EQUIPPED WITH A THICKENED CLAMPING SLEEVE THAT ENSURES SECURE CRIMPING TO HIGH-PRESSURE HOSES, PROVIDING PULL-OUT RESISTANCE AND WITHSTANDING HIGH-FREQUENCY HYDRAULIC PULSES, EFFECTIVELY PREVENTING FITTING LOOSENING AND OIL LEAKAGE DURING LONG-TERM USE.

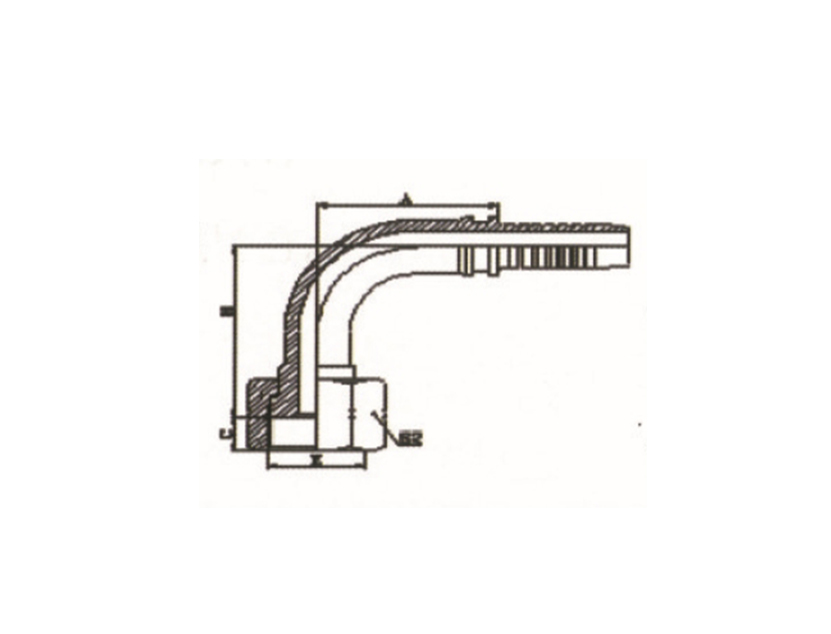

PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| DN | DASH | A | H | C | S2 | ||
| 24291-04-04 | 9/16" X18 | 6 | 04 | 27.5 | 43.5 | 8.5 | 19 |
| 24291-04-05 | 9/16" X18 | 8 | 05 | 33 | 44 | 8.5 | 19 |
| 24291-06-05T | 11/16" X16 | 8 | 05 | 33 | 37.5 | 10 | 22 |
| 24291-06-06 | 11/16" X16 | 10 | 06 | 33 | 50 | 10 | 22 |
| 24291-08-08 | 11/16" X16 | 12 | 08 | 42.5 | 55 | 10 | 22 |
| 24291-08-06T | 13/16" X16 | 10 | 06 | 35.3 | 39.8 | 11 | 27 |
| 24291-08-08 | 13/16" X16 | 12 | 08 | 41 | 58 | 11 | 27 |
| 24291-08-10 | 13/16" X16 | 16 | 10 | 56.5 | 61.5 | 11 | 27 |
| 24291-10-08T | 1" X14 | 12 | 08 | 41 | 46 | 13.5 | 30 |
| 24291-10-10 | 1" X14 | 16 | 10 | 48.5 | 67.5 | 13.5 | 30 |
| 24291-10-12 | 1" X14 | 20 | 12 | 50.5 | 75.5 | 13.5 | 30 |
| 24291-12-10T | 1.3/16" X12 | 16 | 10 | 56 | 51.5 | 15 | 36 |
| 24291-12-12 | 1.3/16" X12 | 20 | 12 | 65.5 | 78 | 15 | 36 |
| 24291-12-16 | 1.3/16" X12 | 25 | 16 | 76.7 | 83.5 | 15 | 36 |
| 24291-16-12T | 1.7/16" X12 | 20 | 12 | 65.5 | 63 | 14.8 | 41 |
| 24291-16-14T | 1.7/16" X12 | 22 | 14 | 71.2 | 63 | 14.8 | 41 |
| 24291-16-16T | 1.7/16" X12 | 25 | 16 | 76.9 | 67.5 | 14.8 | 41 |
| 24291-20-16T | 1.11/16" X12 | 25 | 16 | 76.7 | 67.5 | 15 | 50 |
| 24291-20-20W | 1.11/16" X12 | 32 | 20 | 93 | 100 | 15 | 50 |
| 24291-24-20T | 2" X12 | 32 | 20 | 91.5 | 78.5 | 14.8 | 60 |
| 24291-24-24T | 2" X12 | 40 | 24 | 109.4 | 92 | 14.8 | 60 |
Selection note: 90° ORFS FEMALE INTERNAL THREAD FLAT SEAT ISO 12151-1 SAE J516. Verify thread size, sealing form and pressure rating against the equipment port before ordering. Common sizes are available from stock, and custom production to drawing or sample is available with material and plating options.
